Basic Information
Degrees of Freedom
6-axis
Transport Package
Wooden Box
Specification
3.4*1.7*3.1
Production Capacity
1,000,000
Product Presentation

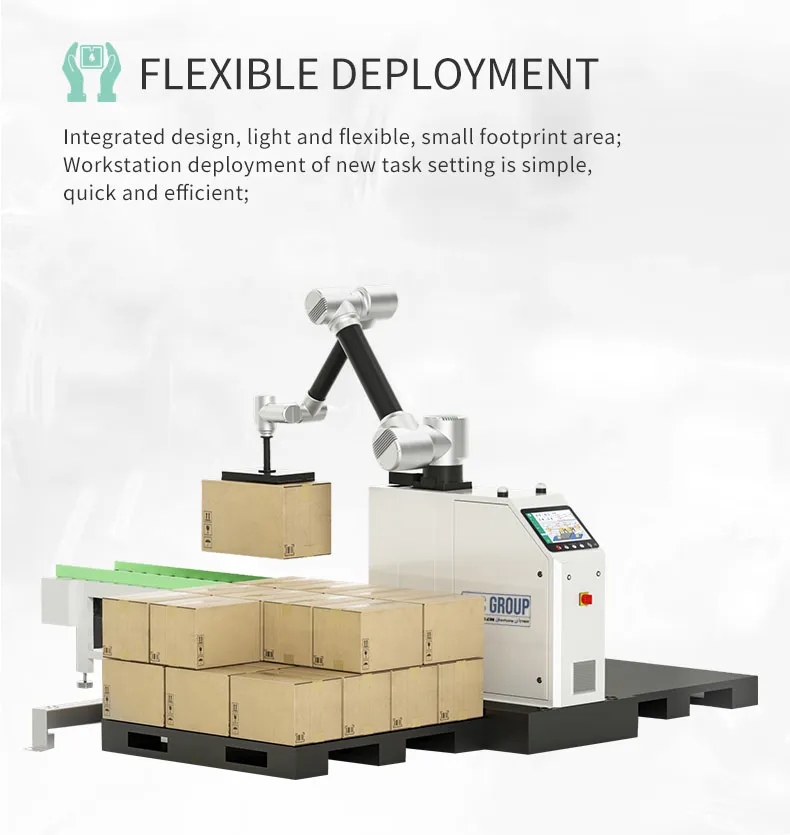

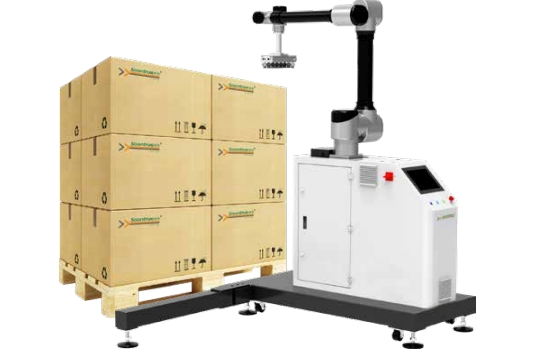

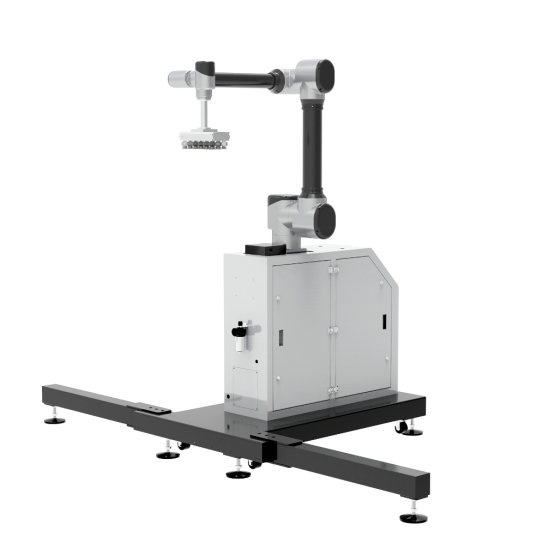

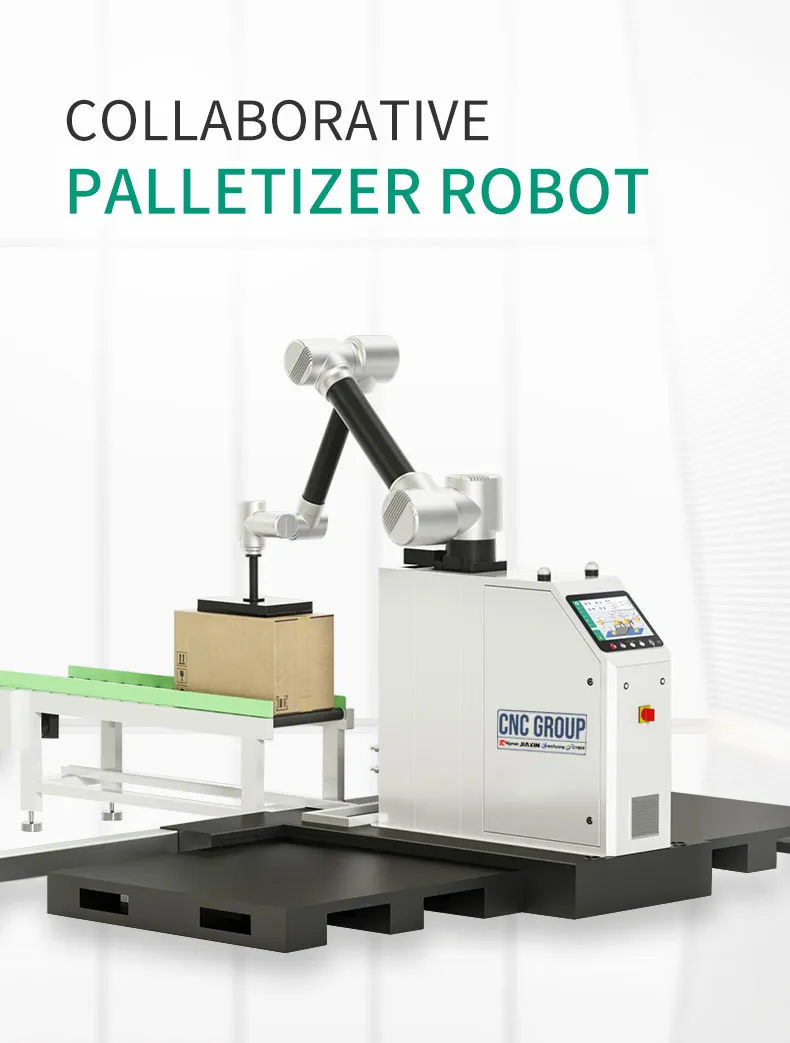

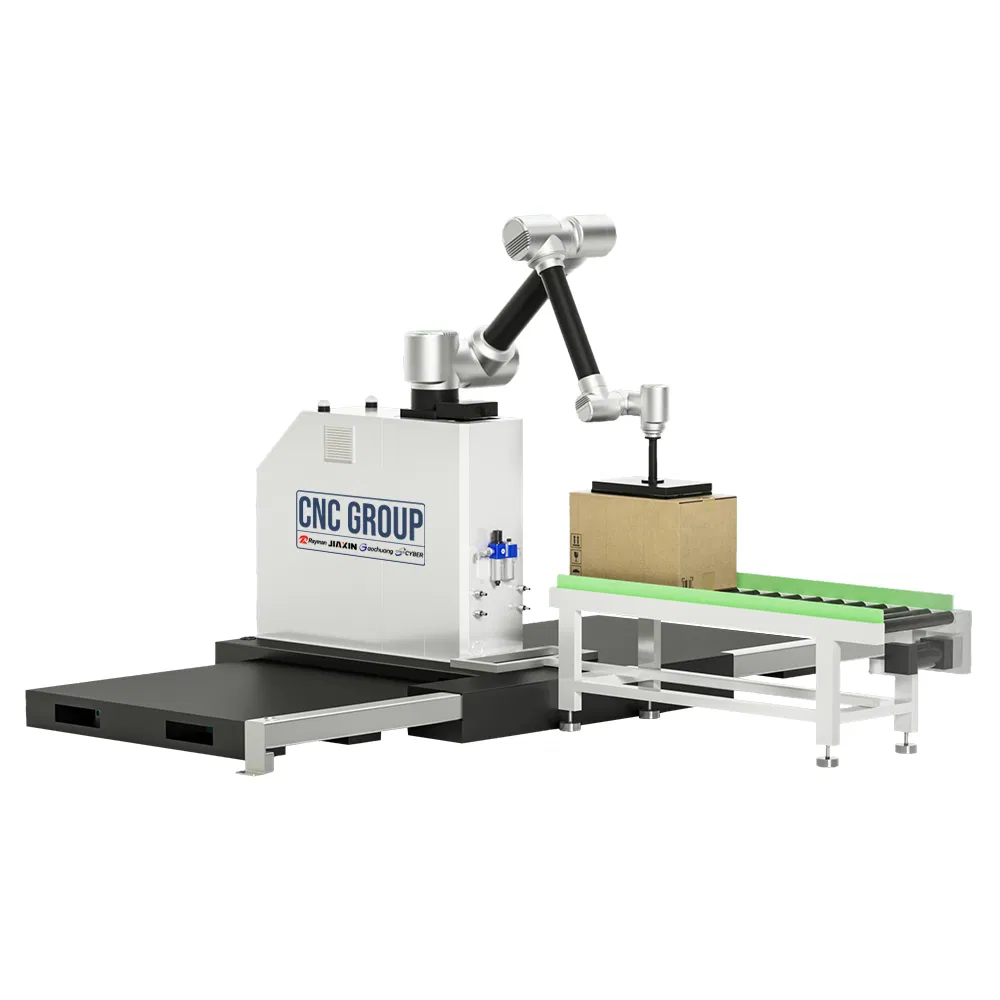

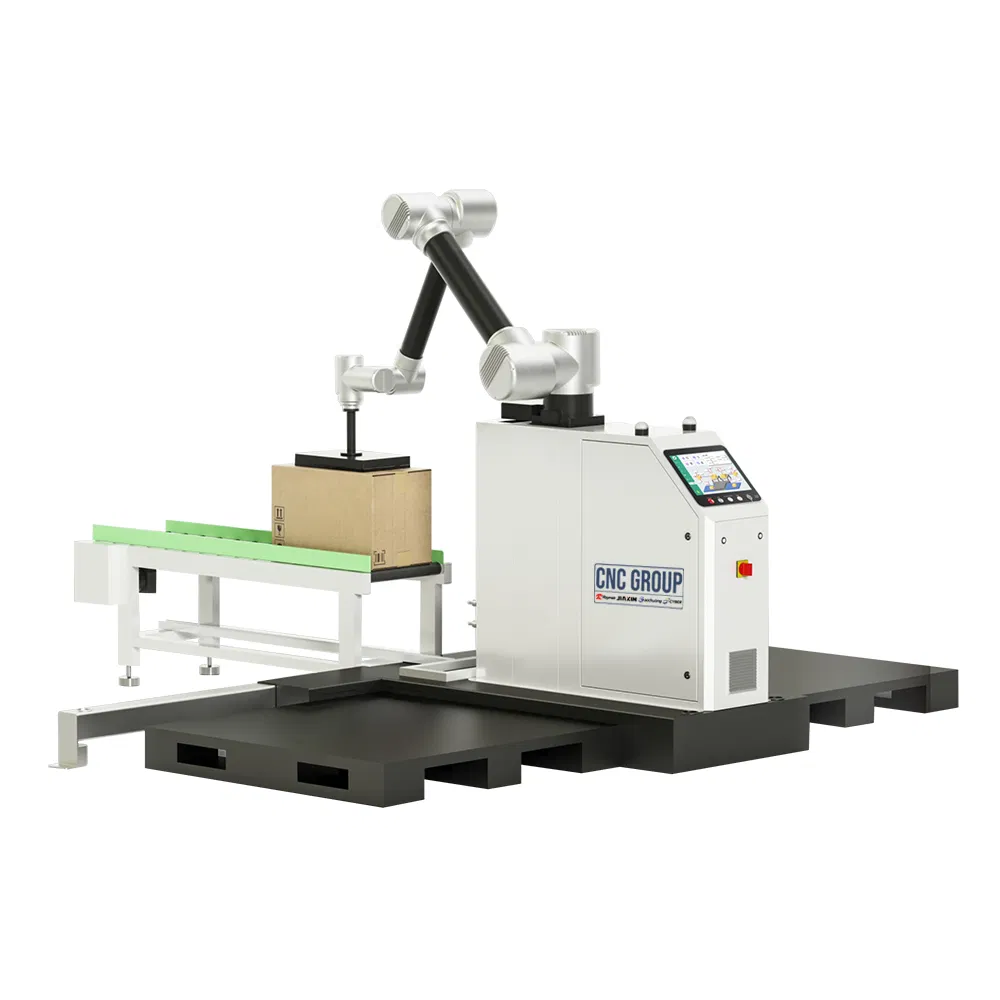

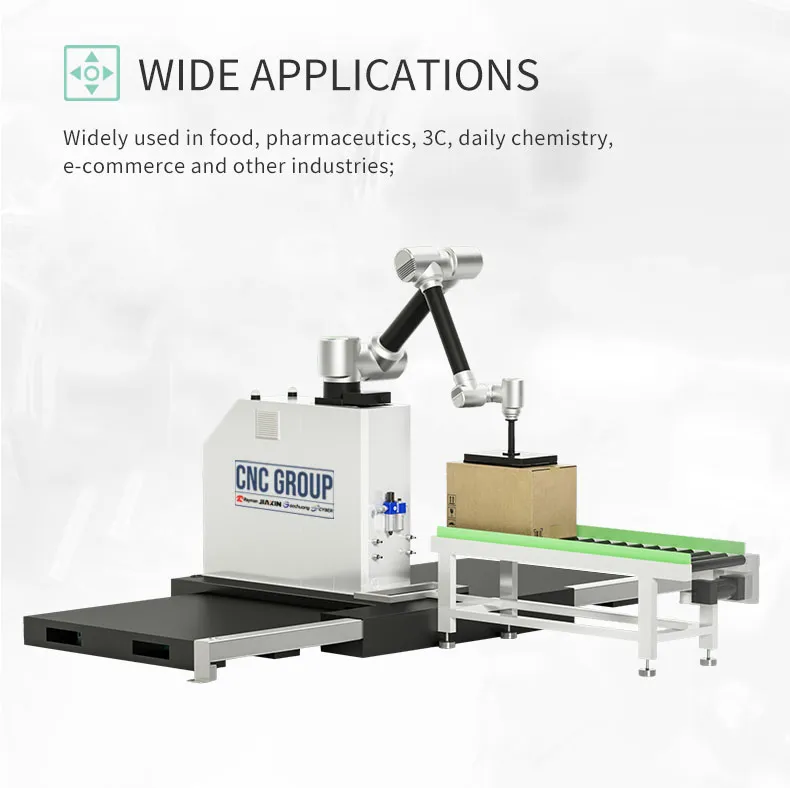

🤖 WP-40 Collaborative Palletizing Robot Workstation
Palletizing Speed: 8~12 boxes/min
Max Payload: 30kg (including gripper)
Palletizing Height: ≤ 2000 mm (lifting column 600mm)
Pallet Size: 1200mm (L) × 1200mm (W) × 150mm (H)
Power Supply: AC380V, 50Hz, Control DC 24V
Air Source: 0.6~0.8Mpa, 200L/min
Total Power: 4kw
Total Weight: Approx 600kg
Machine Dimensions: 1700 × 3410 × 3100 mm
Pallet Placement: Manual / Dual Station (Left & Right)
Frequently Asked Questions
❓ What is the maximum weight capacity of the GC-30 robot?
The robot has a maximum payload capacity of 30kg, which includes the weight of the gripper.
❓ How fast can the workstation process boxes?
The system is designed for efficiency, achieving a palletizing speed of 8 to 12 boxes per minute depending on the layout.
❓ What are the power and air requirements for installation?
It requires an AC380V, 50Hz power supply and a self-provided air source of 0.6~0.8Mpa with a consumption of 200L/min.
❓ Does the robot support different pallet sizes?
The standard configuration is optimized for 1200mm x 1200mm pallets with a height of 150mm, but the system is highly adaptable.
❓ What is the maximum stacking height achievable?
The workstation can stack up to a height of ≤ 2000 mm, assisted by a 600mm lifting column for extended reach.
❓ How is the robot shipped and protected?
For maximum safety during transit, the unit is packed in a robust wooden box to prevent damage to its electric components and 6-axis structure.
