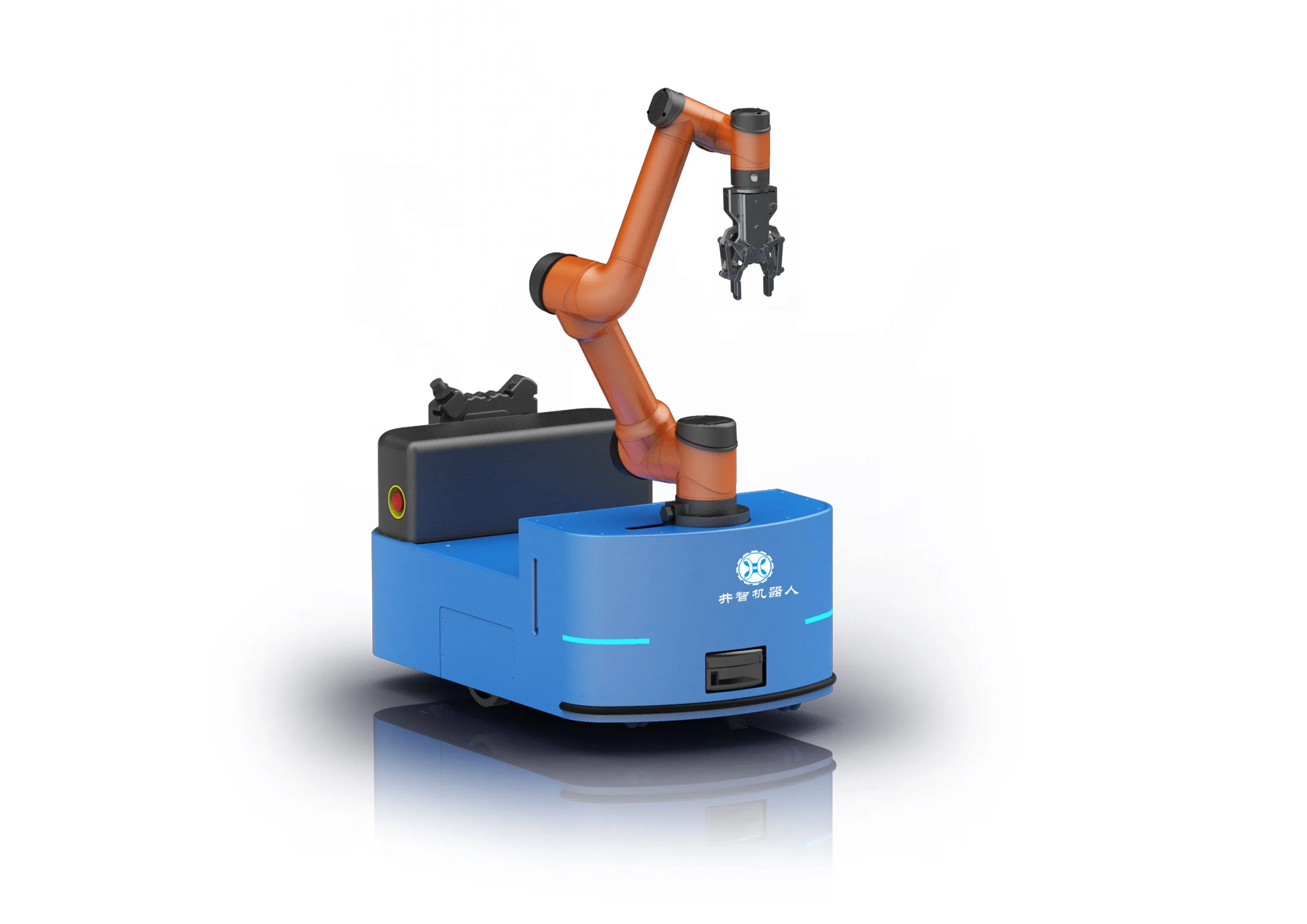

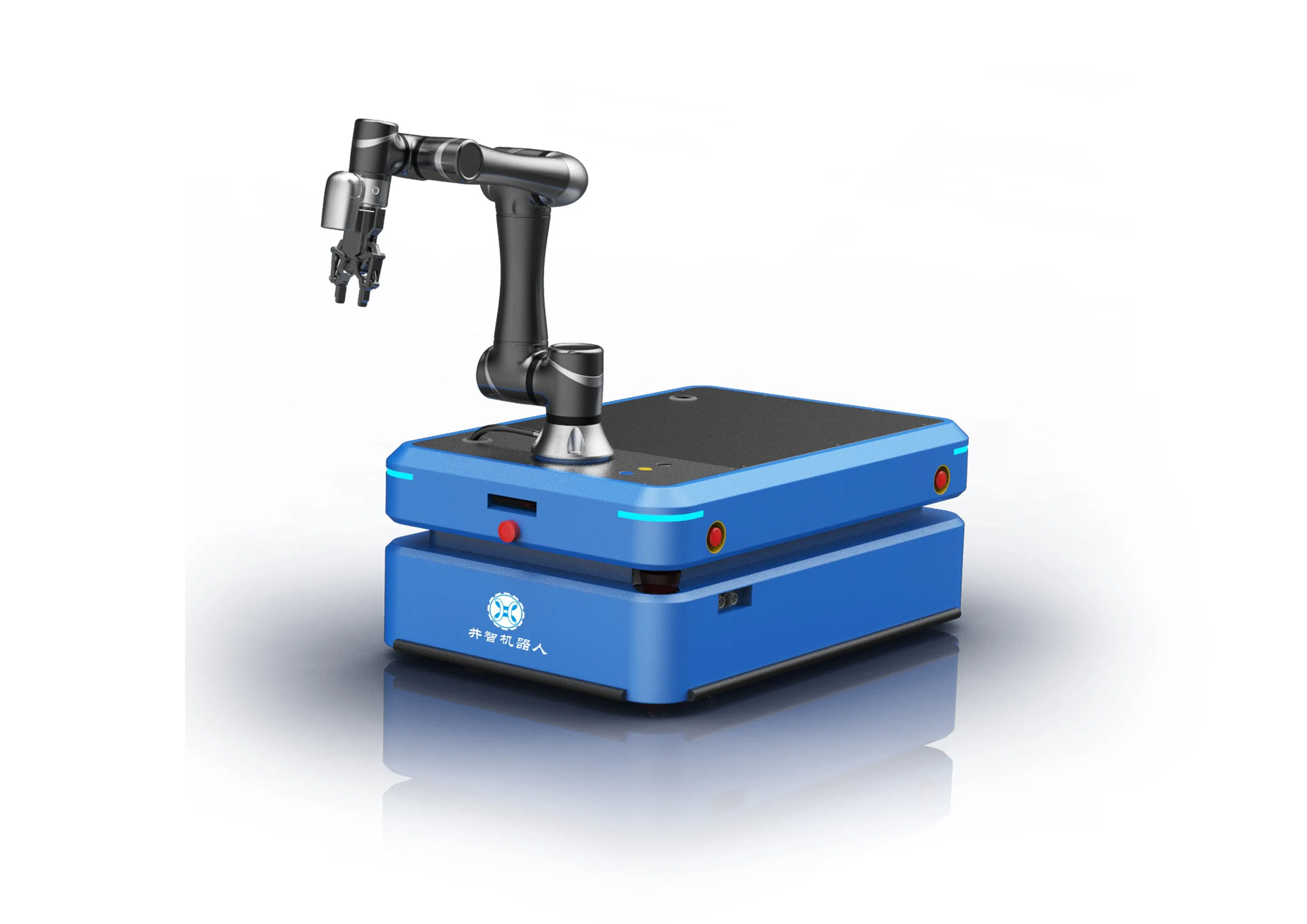

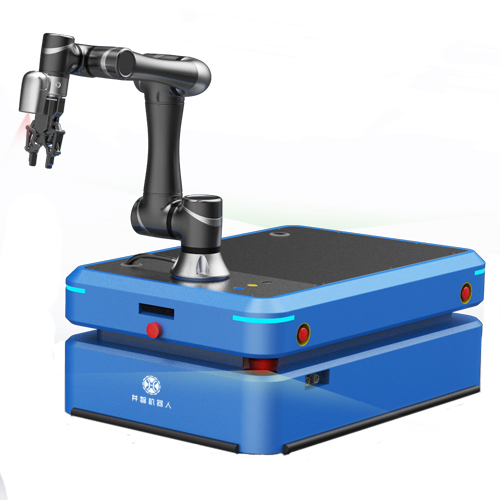

Hot-Selling Wellwit Agv Robot with Wi-Fi Communication Robot Arm

1 / 4

Hot-Selling Wellwit Agv Robot with Wi-Fi Communication Robot Arm

Customization:	Available
Application:	Picking and Placing, Loading, Warehouse, Logistic, 3D, Manufacture
Control Mode:	Automatic

Send Inquiry

Product Description

📊 Basic Information

Model NO.

WAR100-QR

Degrees of Freedom

4-axis

Drive Mode

Electric

Payload Capacity

3 kg / 100kg (Base)

Navigation

Lidar Slam

Condition

New

Positioning Accuracy

±10 mm

Mass

200 Kg(±10 Kg)

Battery Type

Lithium Iron Phosphate

Battery Endurance

≥5 H

Charging Time

≤1.5 H

Specification

997*607*487 mm

🤖 Product Description

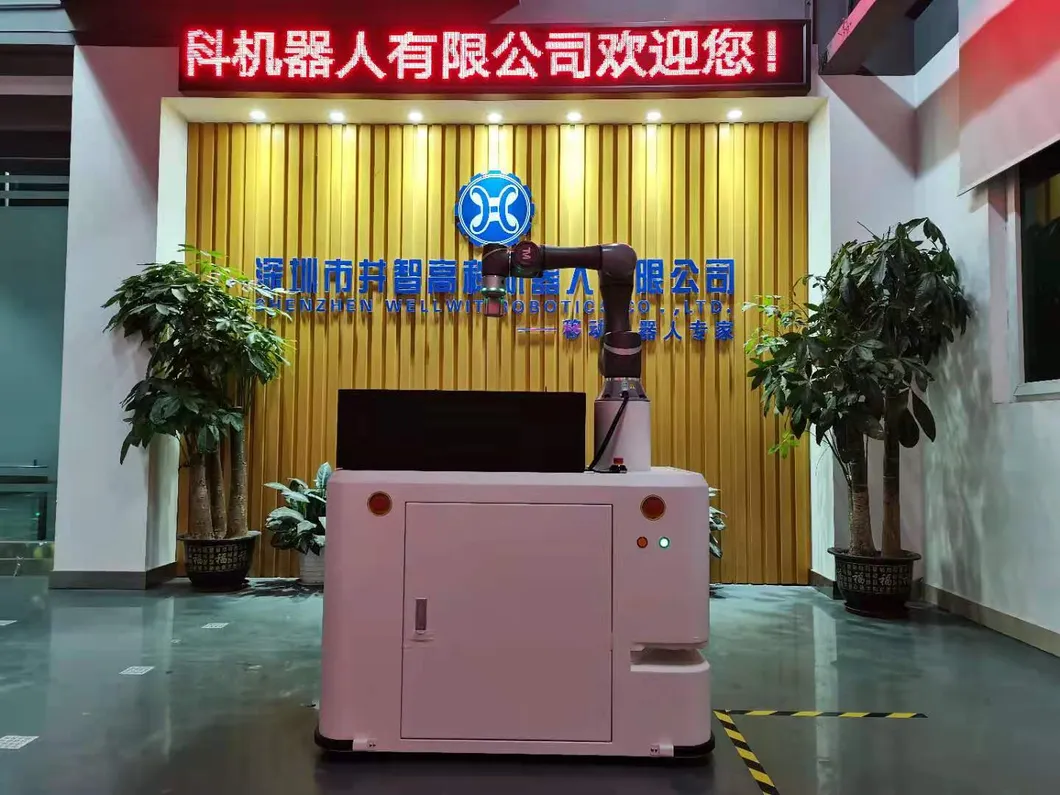

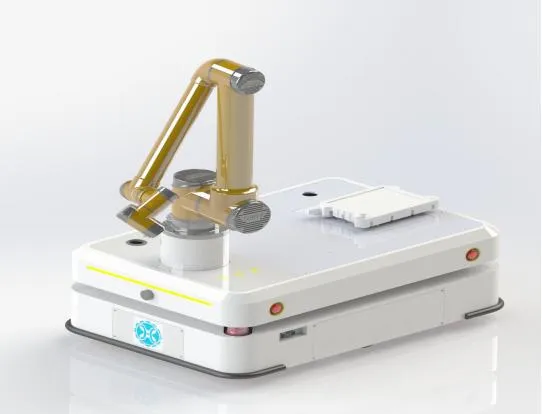

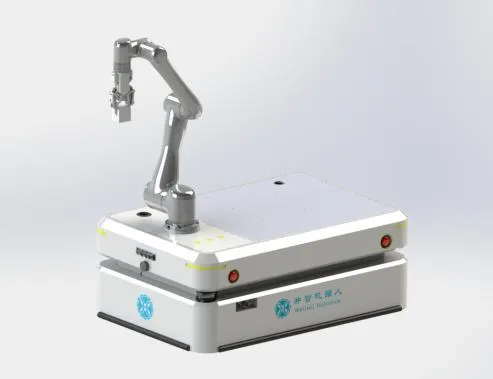

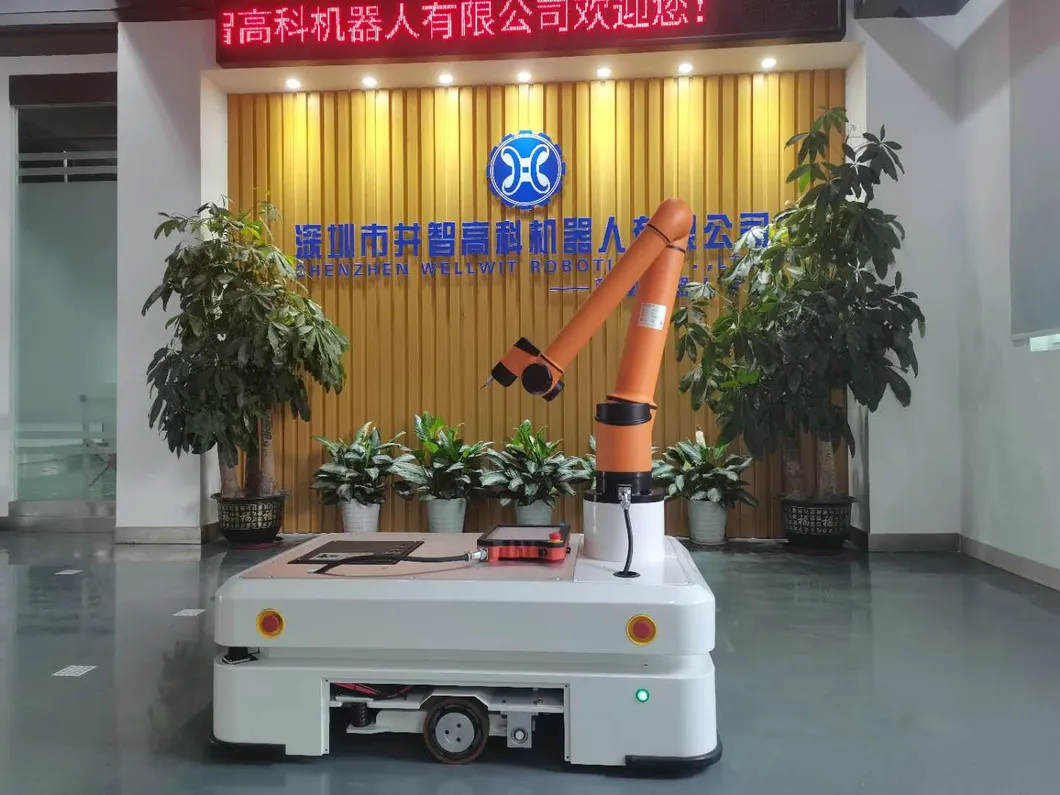

The Series of Composite Robot

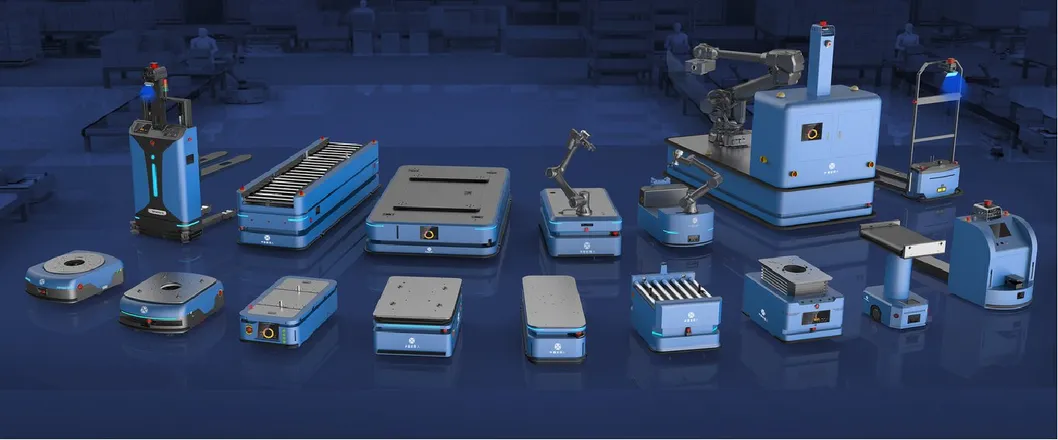

Our team focuses on research and development of mobile robots. The R&D team consists of members experienced in the fields of robotics, embedded hardware, software, algorithms, and artificial intelligence. Currently, available products include moving robots, sorting robots, auto-forklifts, and more.

We provide multiple navigation methods including QR code navigation, LiDAR SLAM navigation, Visual SLAM Navigation, and RTK navigation. We focus on providing custom logistic robots for integrators specialized in Intelligent Logistics and Intelligent Factories, offering AGV & AMR with ODM/OEM services for global clients.

⚙️ Technical Specifications of Robot Base

Category		Parameter Details
Basic Specs	Name	Composite Robot (WAR100-DS)
	Payload / Weight	Payload: 100kg / Weight: 200kg (±10kg)
	Size (LWH)	1200800475 mm (without bumper strip)
	Navigation	LiDAR SLAM Navigation
Performance	Drive / Motion	Quad-drive / Omnidirectional Movement
	Max Speed	1.25m/s
	Accuracy	Position: ±10mm / Orientation: ±1°
Battery	Capacity / Type	40AH / Lithium Iron Phosphate (DC48V)
	Endurance / Life	≥5h / 1500 Cycles (Capacity ≥80%)
	Charging Mode	Offline / Automatic Charging (≤1.5h)
Safety	Collision Avoidance	LiDAR + Around bumper strips
Safety	Emergency	Front and rear emergency stop buttons

Frequently Asked Questions

What navigation methods do these robots support?

The robots support a variety of advanced navigation methods, including LiDAR SLAM, QR code navigation, Visual SLAM, and RTK navigation to suit different industrial environments.

What is the payload capacity and movement capability?

The robot base can handle a payload of up to 100kg. It features quad-drive technology allowing for omnidirectional movement with a maximum speed of 1.25m/s.

How long does the battery last and how is it charged?

The high-capacity Lithium Iron Phosphate battery provides an endurance of ≥5 hours. It supports both offline and automatic charging, with a full charge achieved in ≤1.5 hours.

What safety measures are integrated into the robot?

Safety is prioritized through a multi-layered system including LiDAR obstacle avoidance, physical bumper strips around the base, and easily accessible emergency stop buttons on both front and rear.

What is the positioning accuracy of the system?

The robot achieves high precision with a positioning accuracy of ±10 mm and an orientation accuracy of ±1°, ensuring reliable performance in automated tasks.

Can these robots be customized?

Yes, we focus on providing custom logistic robot solutions and offer ODM/OEM services to meet specific requirements for intelligent factories and integrated systems.
