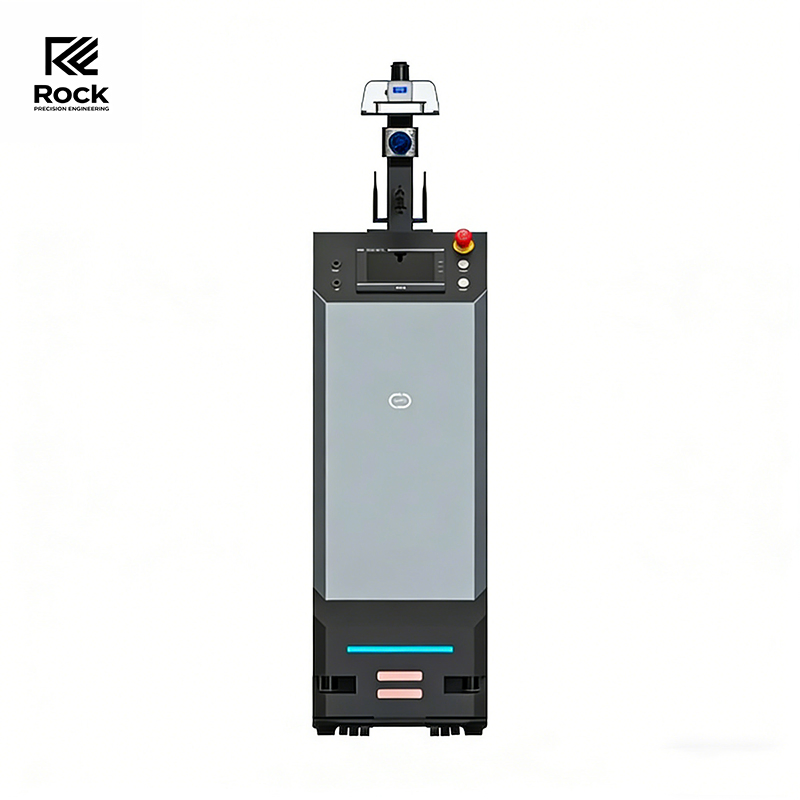

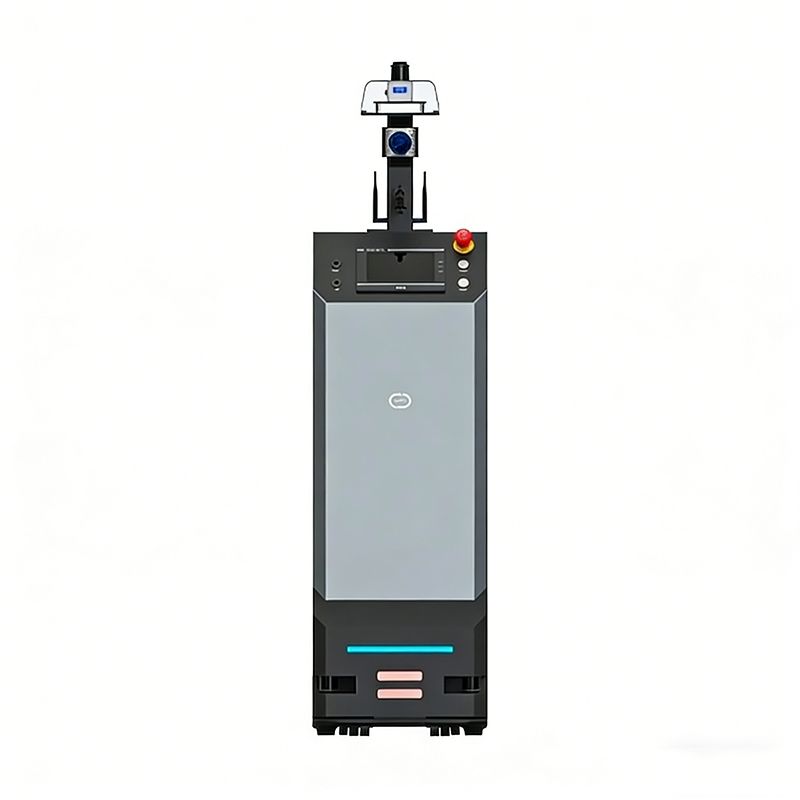

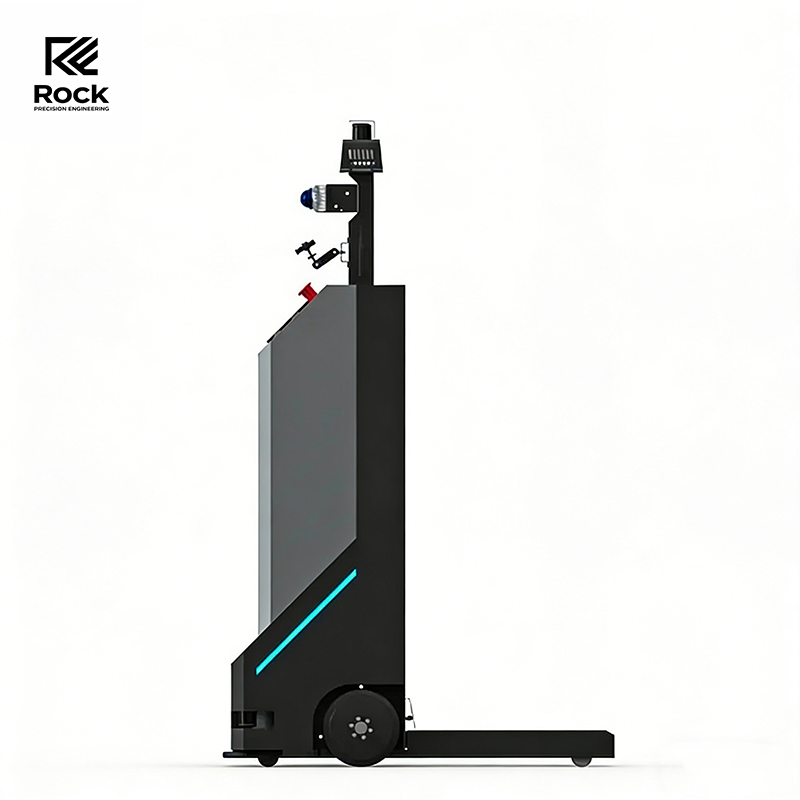

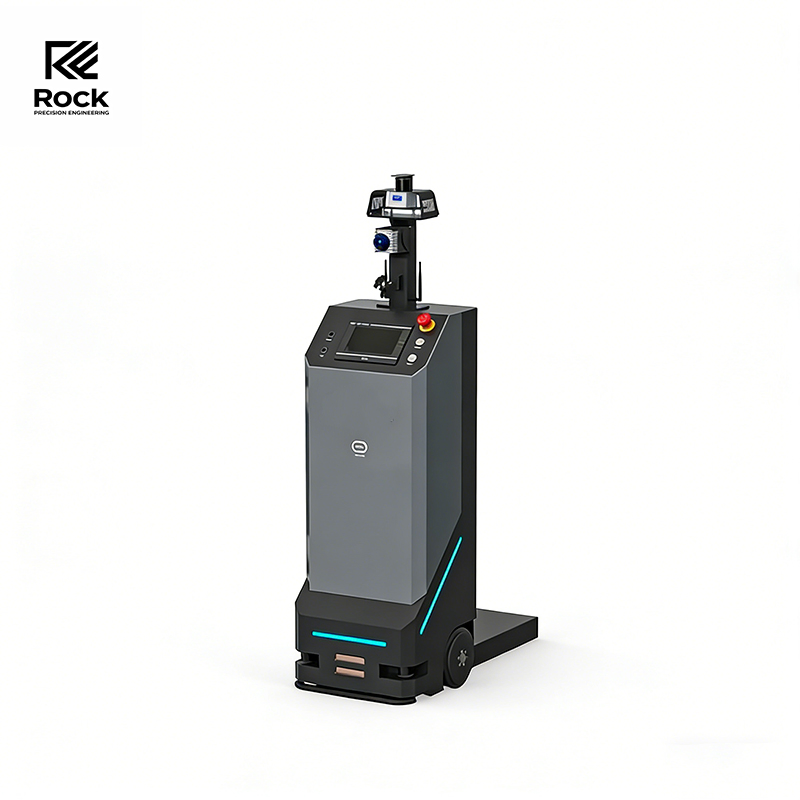

Width is only 400 mm, with a minimum passage width of 600 mm and a turning radius of 600 mm. Chassis ground clearance of 20 mm allows for elevator access.
Supports SLAM, QR code, reflector, and NFL navigation. Achieves ±10 mm precision for accurate positioning in high-dynamic environments.
Equipped with a recognition camera for stable loading and unloading, even when trolley wheels are not fixed.
Flexible assembly allows customization of fork height, robot height, color, and logo to suit specific business needs.
Multiple sensors including LiDAR, 3D camera, safety bumper, and photoelectric sensors ensure complete operational safety.
| Specifications | Details |
|---|---|
| Product Model | SFL-CBD300L |
| Navigation Mode | Laser SLAM |
| Rated Load Capacity | 300 kg |
| Self-weight | 210 kg |
| Standard Lift Height | 70±5~90±5 mm |

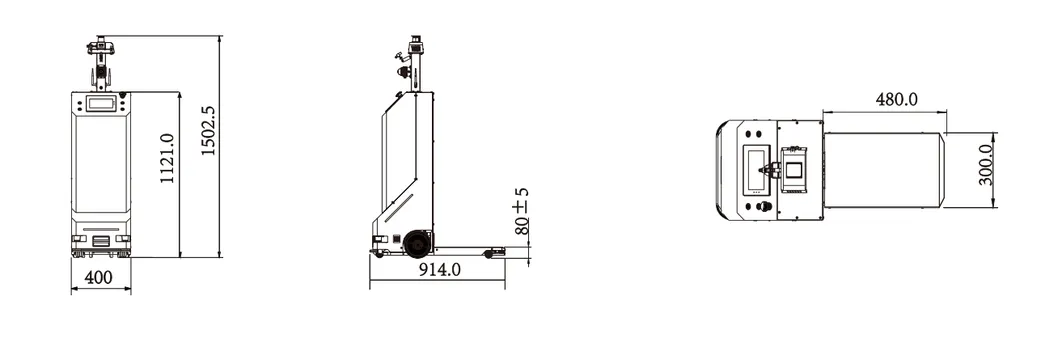

| Vehicle Dimensions | 914 × 400 × 1502.5 mm |
| Travel Speed | 1.5 / 1.66 m/s (Full/No Load) |
| Battery Specification | 48 V / 35 Ah |
| Runtime | 8 Hours |
| Charging Time | ≤1.5h (10%-80%) |
