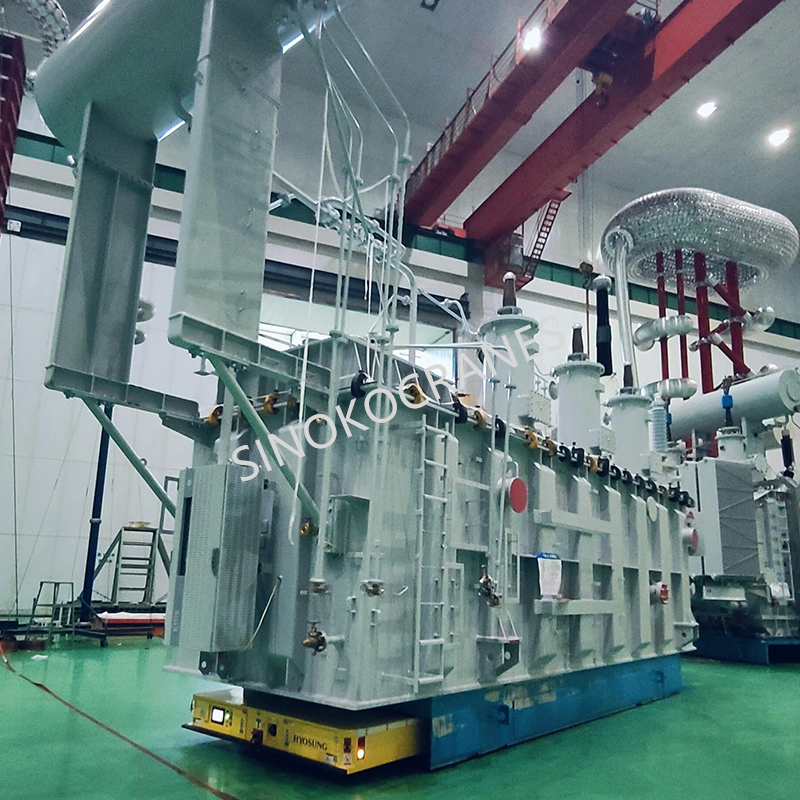

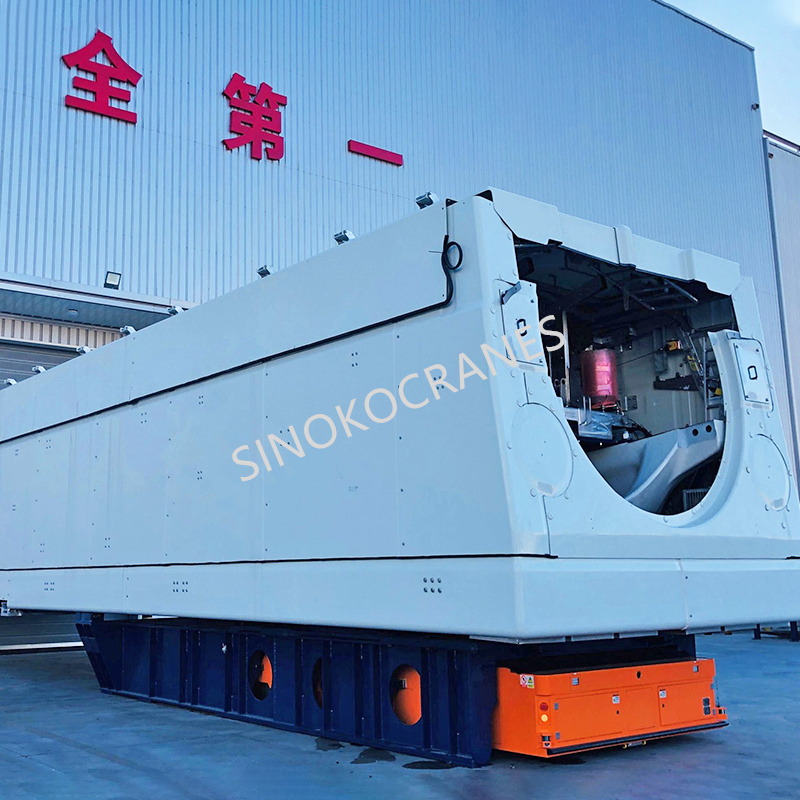

Backpack Lifting Agv Heavy Load Carbon Steel Coil Industrial Robot Cart

1 / 5

Backpack Lifting Agv Heavy Load Carbon Steel Coil Industrial Robot Cart

Customization:	Available
Control Mode:	Remote Control
Drive Mode:	Electric

Send Inquiry

Product Description

📋

Basic Information

Load Capacity

14 Tons

Type

AGV (Automated Guided Vehicle)

Navigation

Magnetic Navigation

Drive Type

Super Drive (Four-Wheel)

Battery

400Ah Lithium Iron Phosphate

Communication

Wireless

Safety

Collision Avoidance, Emergency Stop, Laser Scanners

Origin

China

🚀

Product Overview

360 Ton Heavy Loads Bearing Transportation Transfer Vehicle AGV Cart

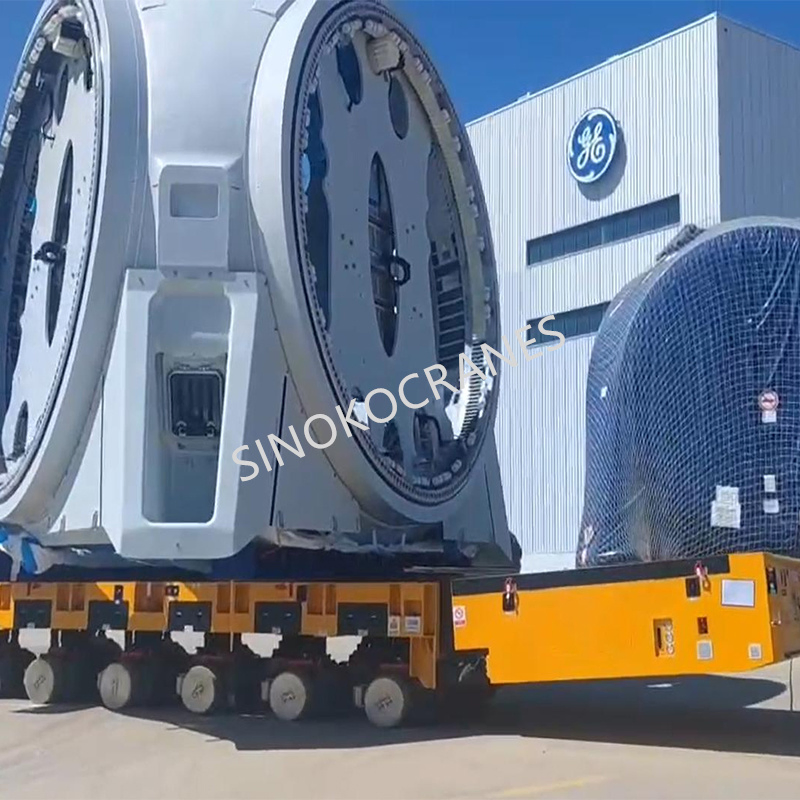

The Heavy Duty AGV Transfer Cart is a high-tech automated guided vehicle designed to transport massive and heavy materials in specialized fields such as wind energy, aerospace, and the automobile industry. Key features include automated lifting, hydraulic suspension, and collision prevention, ensuring safe and stable operations even over rough terrain. It significantly improves logistics automation and increases productivity while reducing labor intensity.

⭐ Central Management System: Features automatic/manual dual insurance scheduling modes. It coordinates with management software for real-time monitoring of vehicle positions, traffic control at intersections, and dynamic parameter updates to ensure safe and efficient driving.

⭐ Automatic Charging Device: Equipped with an intelligent docking system. When battery levels drop below a preset value, the AGV automatically navigates to the charging station for electrode docking, eliminating the need for manual battery handling.

💎

Product Advantages

Our AGV systems integrate eight cutting-edge technologies, forming a comprehensive technical ecosystem: Servo Control, Wireless Communication, Synchronous Hydraulics, Power Monitoring, Safety Protection, Intelligent Scheduling, and Fault Self-Diagnosis. This provides a robust "unmanned" solution for the transportation of overweight parts.

⚙️

Technical Features

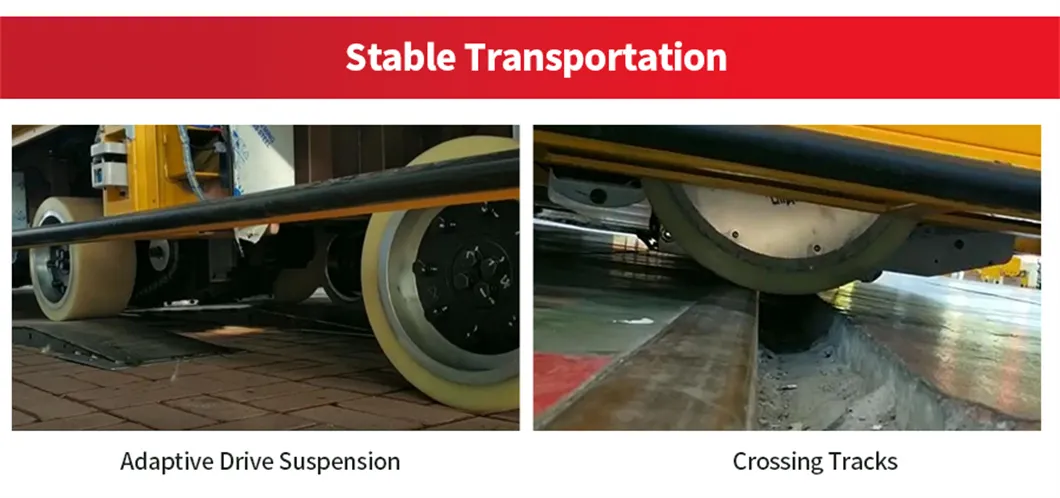

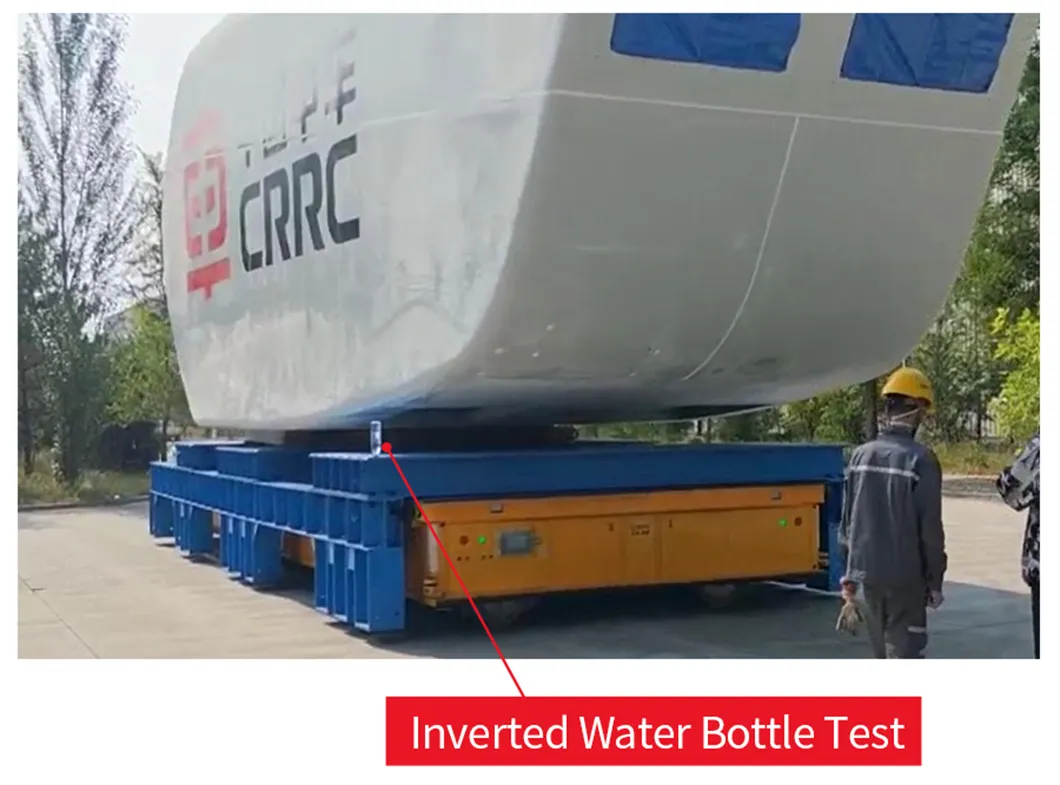

Hydraulic Suspension System: Adjusts suspension travel in real-time to adapt to uneven terrain, slopes, and gaps. Equipped with inclination sensors to maintain a perfectly level platform during operation.

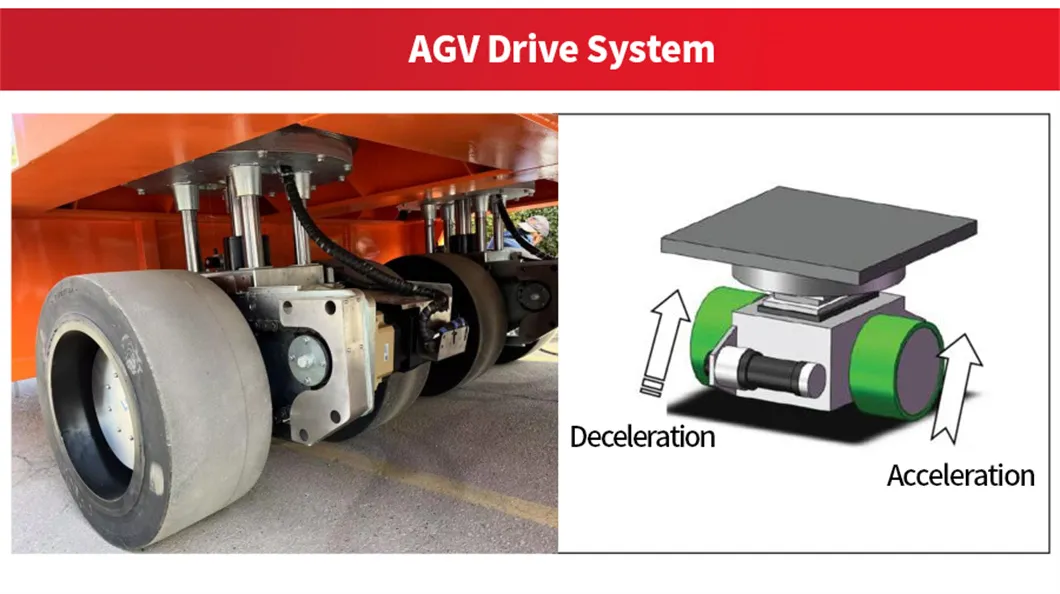

Differential Drive System: Enables 360° rotation and omnidirectional movement. It offers high stability in complex environments, strong load capacity, and minimizes ground damage through a chain drive design that reduces wear.

📊

Technical Data

Model	KNT-20	KNT-40	KNT-100	KNT-200	KNT-400	KNT-600
Length (mm)	2800	4700	5200	6300	8850	125000
Width (mm)	1600	1600	2300	2400	2400	2400
Rated Load (T)	20	40	100	200	400	600
Self-Weight (T)	3	5	6	9	16	26
Lifting Mode	Hydraulic Lifting
Battery Type	Lithium Iron Phosphate Battery
Walking Precision	±2mm
Speed Range	0-20m/min (Flat Ground)

🏭

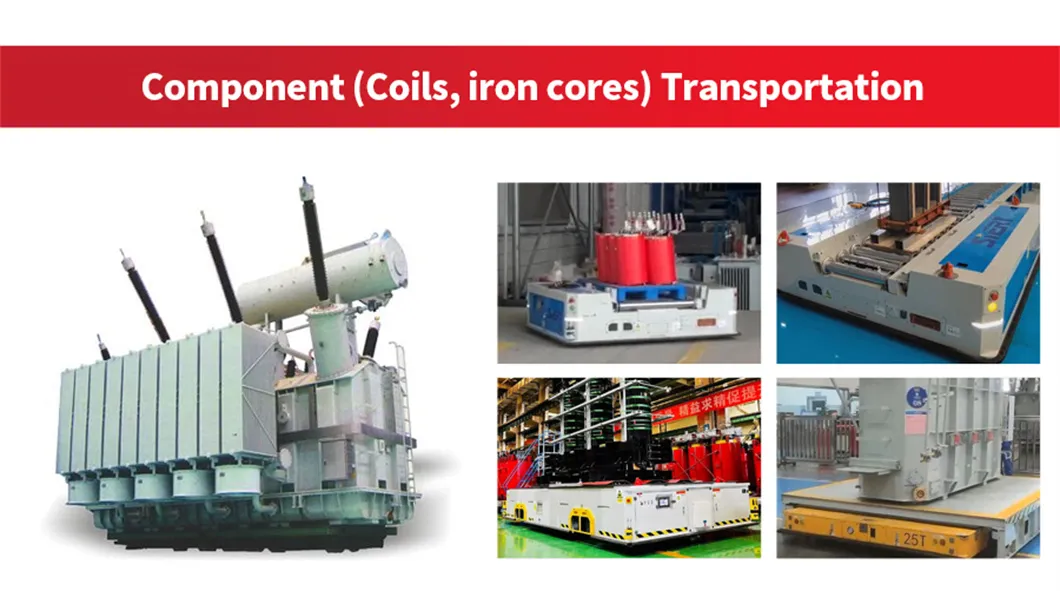

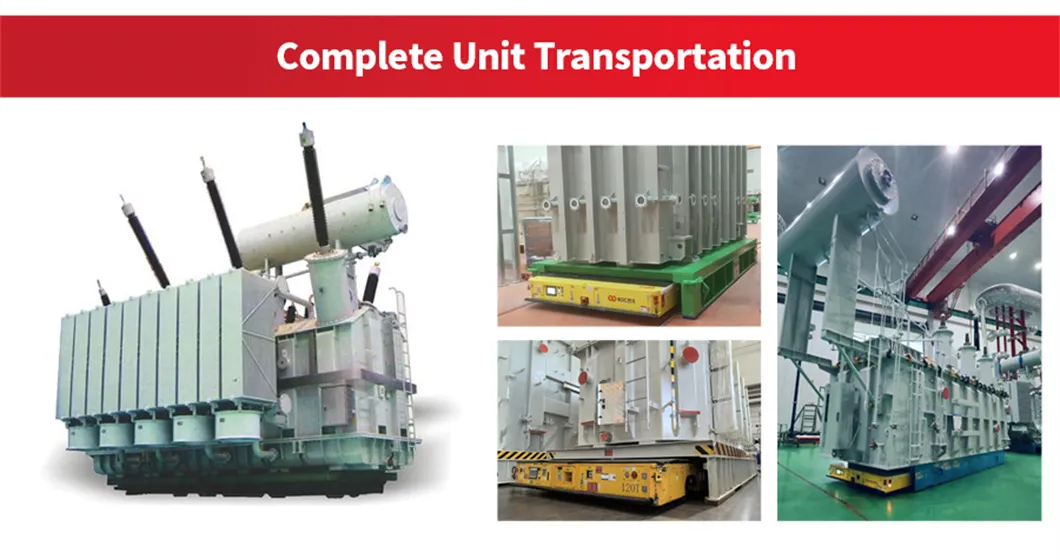

Application & Production

❓

Frequently Asked Questions

Q1: What are the primary benefits of using heavy-duty AGVs?

Heavy-duty AGVs offer high safety, stable operation, and easy automated handling of overweight materials. They feature automatic lifting, hydraulic suspension for uneven ground, and omnidirectional steering, which reduces labor intensity and production cycles.

Q2: Which industries use these AGV transfer vehicles?

They are primarily used in warehousing, manufacturing, ports, airports, and hazardous environments to handle large, heavy, or long materials that are difficult for traditional forklifts to move.

Q3: How does the hydraulic suspension system help?

The system adjusts travel in real-time to adapt to slopes and uneven floors, keeping the load platform level. This prevents shifting or tipping of heavy materials during transport.

Q4: Is the navigation accurate for tight spaces?

Yes, with a walking precision of ±2mm and the ability to rotate 360° on the spot (zero turning radius), these vehicles are highly maneuverable in restricted passages.

Q5: How is safety managed during automated operation?

Safety is ensured through a multi-layered system including long-distance obstacle detection sensors, safety laser scanners, emergency stop buttons, and an automated collision avoidance system.

Q6: What is the maximum load capacity available?

Our models range from 20 tons up to 600 tons for the largest KNT-600 series, capable of handling extreme industrial loads like carbon steel coils or wind turbines.
