Slam Navigation-Dual-Vehicle Linkage Heavy-Load Agv Transport Robot

Customization:	Available
Control Mode:	Manual Remote Control
Drive Mode:	Electric

Send Inquiry

Product Description

📋

Basic Information

Model NO.

SLAM navigation-dual-car linkage heavy-load AGV

Type

AGV (Automated Guided Vehicle)

Safety Features

Collision Avoidance, Emergency Stop, Obstacle Sensors

Equipment Deadweight

Single Vehicle 10t

Drive Quantity

Four-Wheel Drive (Eight Wheels)

Walking Speed

3-30m/Min (Variable)

Power Supply

DC48V

Communication

2.4G Wifi, 433MHz Radio

Warranty

1 Year

Certification

ISO

🚀

Product Description

SLAM Navigation - Dual-Vehicle Linkage Heavy-Load AGV

The servo motor-driven differential drive is used as the walking part of the whole vehicle, allowing movement in any direction in a two-dimensional plane, including straight, horizontal, and rotation. This 30-ton dual-vehicle linkage AGV features a rated load of 30T. The equipment is equipped with a handheld remote control, supporting both manual control and laser automatic navigation for seamless vehicle movement. It is capable of carrying products from 11 to 27 meters with an adjustable linkage distance.

Rated load:	single vehicle: 15T; double vehicles 30T
Equipment deadweight:	single vehicle 10T
Body shape:	L3000×W1600×H1000mm
Lifting stroke:	100mm
Moving accuracy:	±10mm
Navigation accuracy:	±20mm
Battery Life:	Continuous work 4-6H depending on load
Charging method:	Automatic online charging / Offline charging
Ground clearance:	50mm
Climbing ability:	≮2°

⭐

Project Features

🏗️Self-adaptation on complex ground, tracks, and potholes.

⚖️Equipped with weighing detection and centroid display.

🎯Automatic left-right centering system for docking.

❄️Operation under extremely cold environments (-30ºC).

💻

AGV Management and Control System

The AGV Control system connects with MES systems using automatic/manual dual insurance scheduling modes. Instructions are issued for handling tasks, and the system provides real-time dynamic monitoring of vehicle positions on an electronic map. This ensures high intelligence automated management, traffic control at intersections, and improved operational safety.

⚡

Automatic Charging Device

Developed to meet frequent material delivery needs, this device allows the AGV to move to the charging station automatically when energy levels are low. The electrodes dock automatically, saving time and removing the need for manual heavy battery handling, making the system more humanized and automated.

🖼️

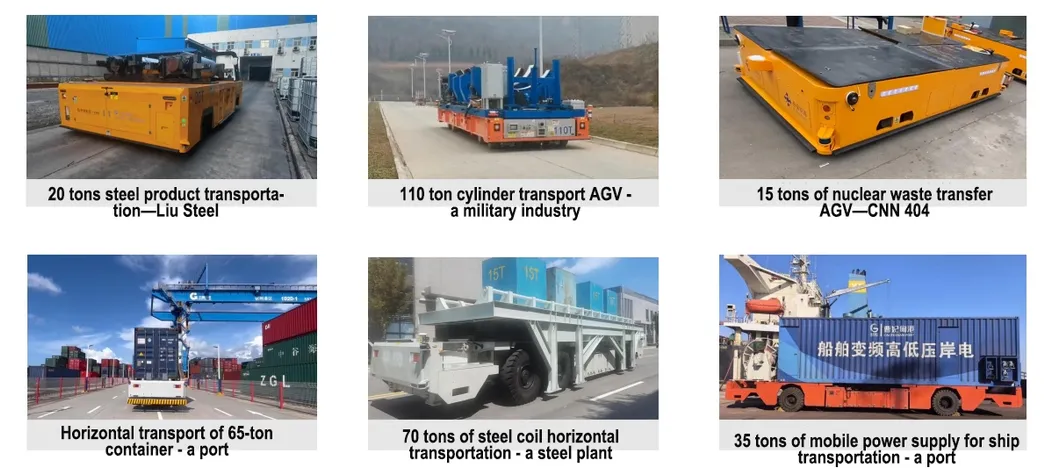

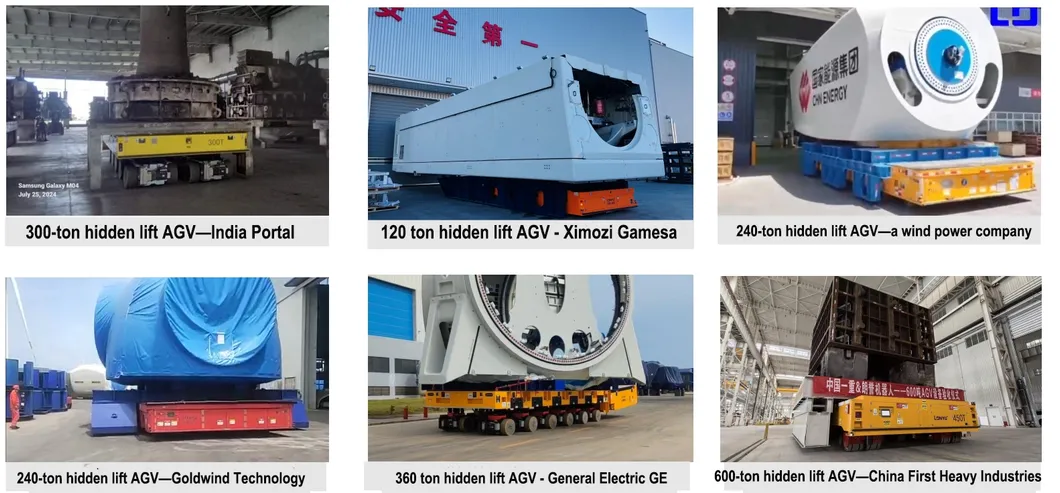

Application & Manufacturing

📜

Certifications

❓

Questions & Answers

What is the maximum load capacity of the dual-vehicle linkage AGV?

The system supports a single vehicle load of 15T and a combined dual-vehicle linkage capacity of up to 30T.

How does the SLAM navigation work in this system?

It uses laser-based automatic navigation which allows the vehicle to move in any direction (straight, horizontal, rotation) without the need for physical tracks.

What safety features are included?

The AGVs are equipped with a Collision Avoidance System, Emergency Stop Buttons, and Obstacle Detection Sensors to ensure safe operation in shared workspaces.

Can it operate in extreme cold environments?

Yes, the equipment is designed to operate efficiently even in extremely cold conditions down to minus 30ºC.

What are the main benefits of heavy-duty AGVs?

They offer easy operation, high safety, stable movement, and the ability to handle oversized or overweight materials that are difficult for traditional forklifts.

How is the battery managed?

It uses Lithium Iron Phosphate batteries specifically for AGVs, featuring automatic online charging to ensure continuous production without manual battery swaps.
