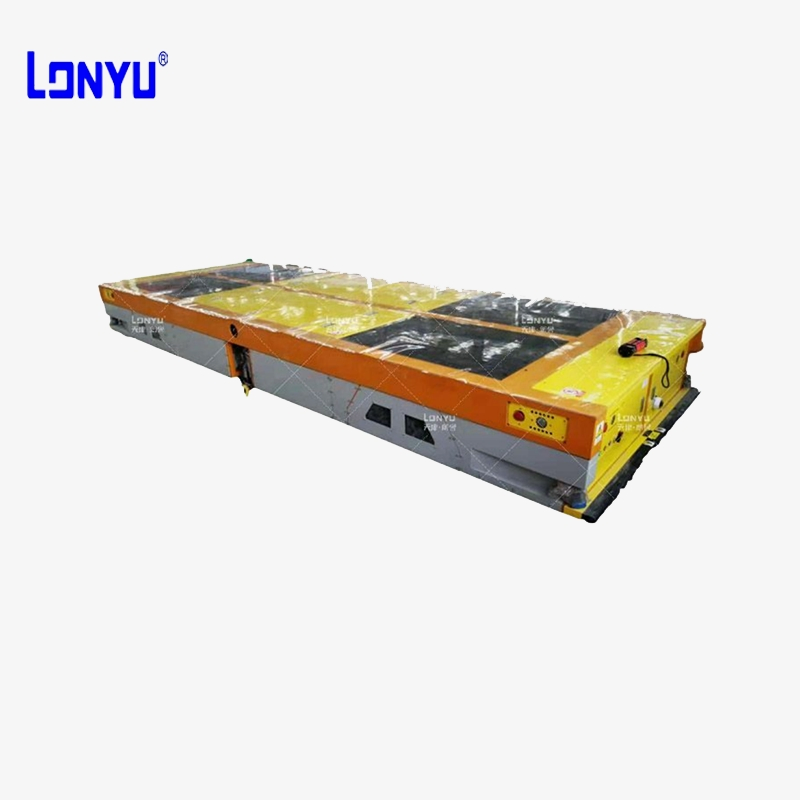

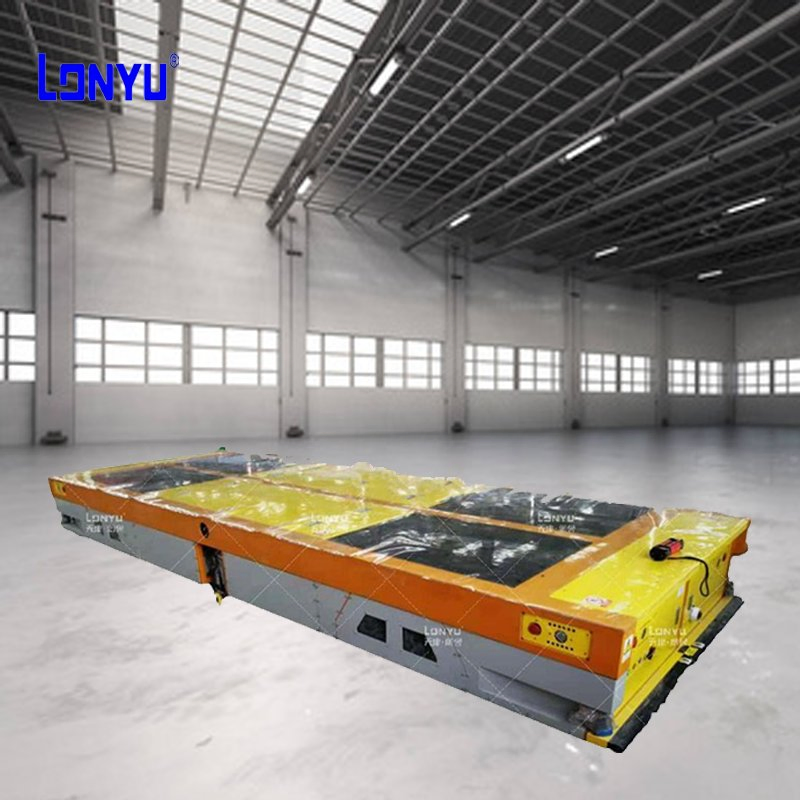

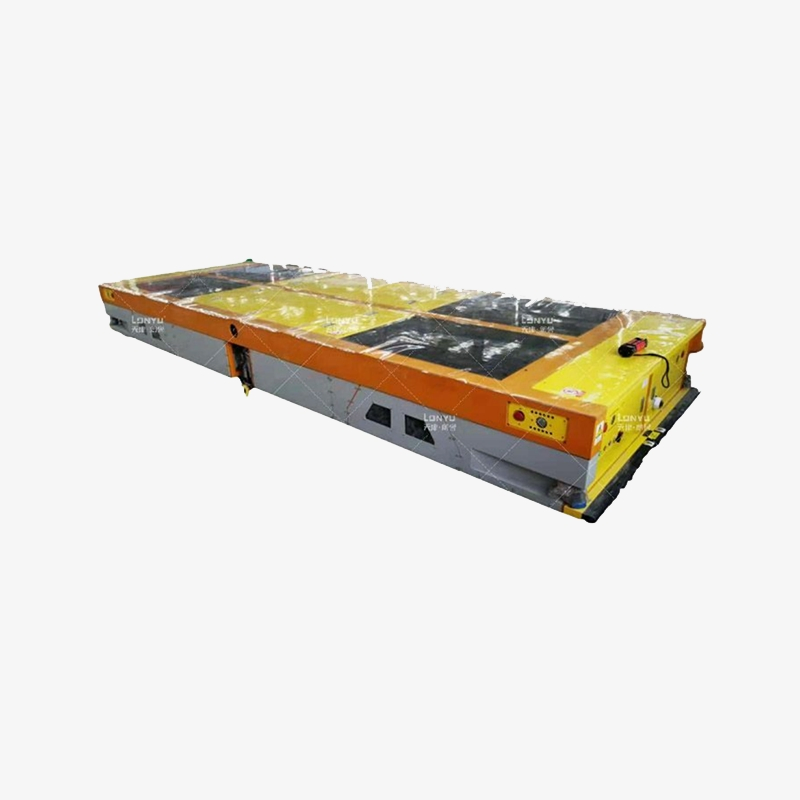

30 Ton Heavy Load Transport Vehicle Delivery Robot Backpack Lifting Heavy Load Agv Robot
30 Ton Heavy Load Transport Vehicle Delivery Robot Backpack Lifting Heavy Load Agv Robot
30 Ton Heavy Load Transport Vehicle Delivery Robot Backpack Lifting Heavy Load Agv Robot
30 Ton Heavy Load Transport Vehicle Delivery Robot Backpack Lifting Heavy Load Agv Robot
30 Ton Heavy Load Transport Vehicle Delivery Robot Backpack Lifting Heavy Load Agv Robot
1 / 5
30 Ton Heavy Load Transport Vehicle Delivery Robot Backpack Lifting Heavy Load Agv Robot
30 Ton Heavy Load Transport Vehicle Delivery Robot Backpack Lifting Heavy Load Agv Robot
30 Ton Heavy Load Transport Vehicle Delivery Robot Backpack Lifting Heavy Load Agv Robot
30 Ton Heavy Load Transport Vehicle Delivery Robot Backpack Lifting Heavy Load Agv Robot
30 Ton Heavy Load Transport Vehicle Delivery Robot Backpack Lifting Heavy Load Agv Robot

30 Ton Heavy Load Transport Vehicle Delivery Robot Backpack Lifting Heavy Load Agv Robot

Customization: Available
Control Mode: Manual Remote Control + Automatic Navigation
Drive Mode: Differential Drive (Load Bearing)
Send Inquiry

Product Description

📊

Product Overview & Basic Info

Model NO.
30 ton backpack lifting heavy load AGV
Load Capacity
30 Ton
Safety Features
Collision Avoidance, Emergency Stop, Obstacle Sensors
Motion Mode
Omnidirectional Movement
Navigation Method
Magnetic Strip Guidance
Travel Speed
0-30m/Min (Customizable)
Lifting Height
80mm-100mm±2.5mm
Control Method
Manual Remote + Automatic Navigation
📝

Product Description

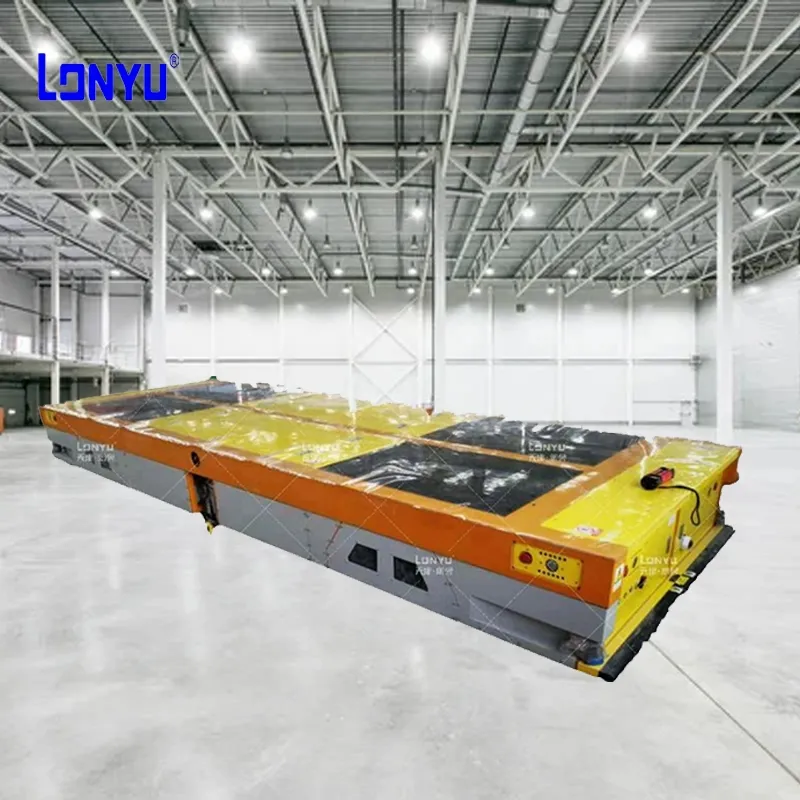

30 Ton Heavy Load AGV
30-Ton Backpack Lifting Heavy-Load AGV

The super drive driven by a servo motor is used as the walking part of the whole vehicle, so that it can move in any direction in a two-dimensional plane, including straight, horizontal, rotation and other forms of movement. The 30-ton AGV has a rated load of 30T. The equipment is equipped with a handheld remote control, which can be manually controlled/magnetic strip automatic navigation to realize the movement of the whole vehicle.

⚙️

Technical Specifications

Rated load30T
Design load40T (10-500T customizable)
Body shapeL5230*W1800*550mm
Driving wheelsFour-wheel drive eight-wheel
Travel directionForward/backward, lateral movement, in-place rotation
Lifting speed10mm/s-15mm/s
Navigation accuracy±5mm
Power supplyLithium battery / external towing / online charging
Safety sensing≤3m (adjustable)
Design life>10 years
🏆

Company Profile & Honors

Profile
Honors
📜

Certifications

Certifications
❓

Questions & Answers

Would an AGV be a good solution for my facility?
An AGV is an excellent choice for moving materials and components horizontally. It is a movable platform that handles heavy weights and specific travel requirements efficiently, replacing traditional manual handling.
What are the primary benefits of heavy-duty AGVs?
They offer high safety, stable operation, and easy handling of overweight or overlong loads. Features include automatic lifting, hydraulic suspension, all-round steering, and the ability to adapt to uneven ground.
Where are these heavy-duty AGVs typically applied?
They are widely used in warehousing, manufacturing, ports, airports, and hazardous environments to automate the handling of large materials, improving logistics efficiency and reducing labor intensity.
Can the load capacity be customized for specific needs?
Yes, while the standard model is rated for 30 tons, the design load can be customized from 10 tons up to 500 tons to meet specific industrial requirements.
How does the AGV navigate through the workspace?
This model primarily uses magnetic strip guidance for automatic navigation, ensuring a navigation accuracy of ±5mm. It also supports manual remote control for flexible maneuvering.
What safety mechanisms are built into the vehicle?
The system includes a front obstacle detection sensor, a mechanical anti-collision mechanism, and an emergency stop button, providing double-layered protection for workers and equipment.
