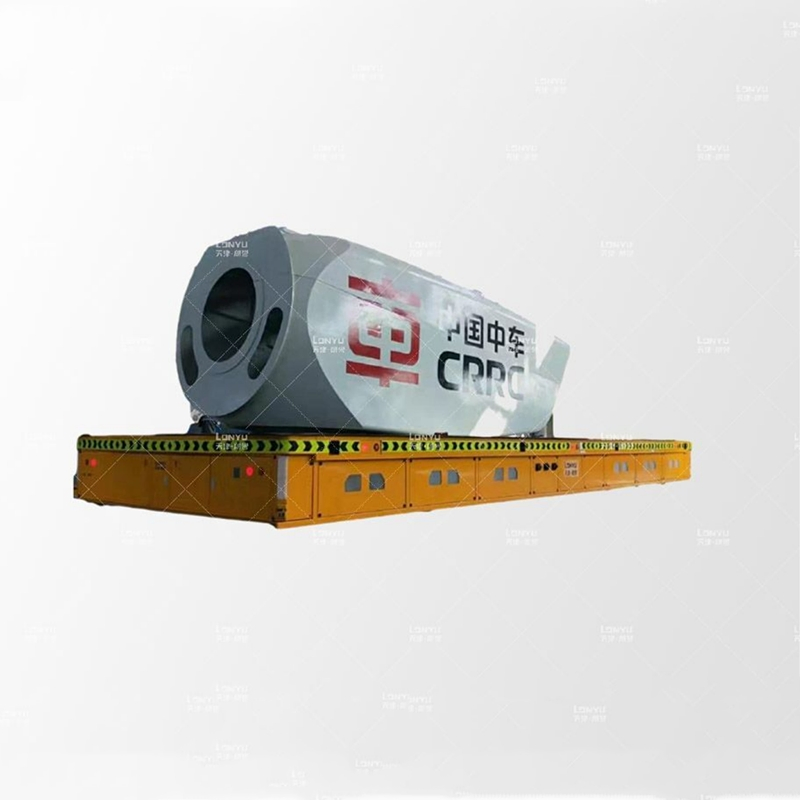

Electric Material Handling Vehicle Transfer Cart 240 Tons Back-Lift Heavy-Load Agv Robot Shipping
1 / 1
Electric Material Handling Vehicle Transfer Cart 240 Tons Back-Lift Heavy-Load Agv Robot Shipping

Electric Material Handling Vehicle Transfer Cart 240 Tons Back-Lift Heavy-Load Agv Robot Shipping

Customization: Available
Control Mode: Main Wireless Controller, Auxiliary Wire Controlle
Drive Mode: Electric
Send Inquiry

Product Description

📊

Basic Specifications

Model NO.240 tons back-lift heavy-load AGV
Load Capacity240 Tons
TypeAGV (Automated Guided Vehicle)
Safety FeaturesCollision Avoidance, Emergency Stop, Obstacle Sensors, Laser Scanner
CommunicationWiFi
CertificationCE
Working Env.Indoor and Outdoor Operation
Body StructureOmnidirectional Differential Drive
Moving SpeedNo Load ≥30m/Min
Operation Noise≤70dB
🛠️

Product Description

240 Tons Heavy-Load AGV
Designed for the transportation of wind power industry cabin assemblies from workshop assembly stations to finished product storage stations outside.

  • Adaptive to track crossing and complex potholes
  • Self-contained weighing detection and center of mass display
  • Automatic left and right centering system for docking with tooling
  • Normal operation in extremely cold environments down to minus 30ºC
  • Rated load: 200T (supports impact load of 1.25 times rated capacity)
Heavy Load AGV
Heavy Load AGV Robot
📋

Technical Specifications

Design Load240T
Equipment Weight26T
Body DimensionsL9000*W3400*H800mm
Ground Clearance200mm
Climbing Ability≥5°
Wheel Configuration12-wheel drive (24 wheels)
Operation ModesStraight, lateral, self-rotation, omnidirectional movement
SuspensionDrive unit independent suspension; Active suspension for even stress distribution
Wheel Pressure≤10Mpa (Theoretical 7Mpa)
Moving SpeedNo load ≥30m/min, Full load ≥25m/min
Charging Time<8h
IP Protection≥IP54 for control and electrical systems
Service LifeKey components ≥10 years; Battery life ≥5 years
Safety ProtectionFour-level protection: Contact rubber strip, sound/light alarm, laser avoidance, emergency stops
Power SupplyLithium battery / External 380V, 50Hz cable power supply
🏢

Company Profile & Honors

Profile 1
Profile 2
Company Honors
📜

Certifications

Certifications
❓

Questions & Answers

What are the primary benefits of using heavy-duty AGVs?
Heavy-duty AGVs offer high safety, stable operation, and easy handling for large loads. Features include automatic lifting, hydraulic independent suspension, and the ability to navigate restricted passages efficiently.
In which environments can this AGV operate?
It is designed for both indoor and outdoor use and can operate effectively in extremely cold environments down to -30ºC.
What kind of movement precision and braking distance does it offer?
The vehicle provides a stop accuracy of ±10mm. The braking distance is less than 100mm at no load and less than 300mm at full load (both adjustable).
How does the weighing function work?
The AGV is equipped with weighing sensors that display the cargo weight on the control panel with a 1% error margin. It automatically stops if the load exceeds capacity or the center of gravity offsets too much.
What safety mechanisms are integrated into the vehicle?
It features a four-level safety system: contact anti-collision rubber strips, sound and light alarms, non-contact laser obstacle avoidance, and multiple emergency stop buttons.
What are the typical applications for these vehicles?
They are widely used in manufacturing, warehousing, ports, and airports for automated handling of overweight or overlong materials, improving production efficiency and safety.
