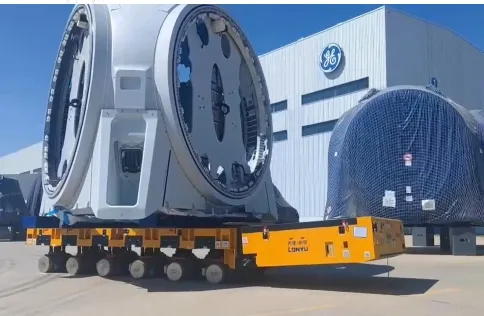

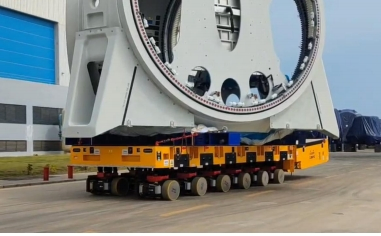

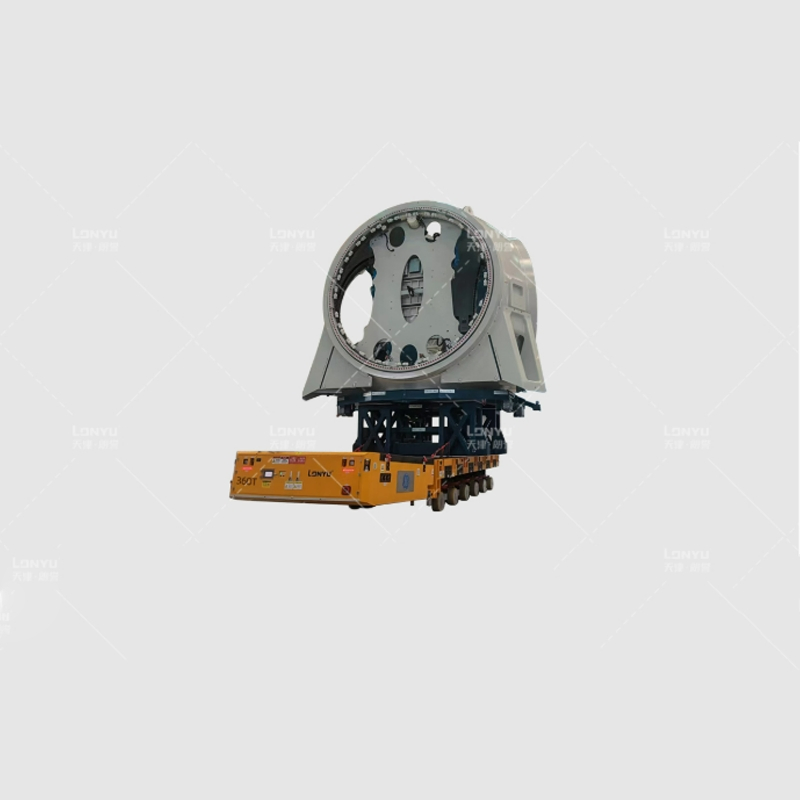

360 Tons Back-Lift Heavy-Load Agv Robot Transfer Trolley

1 / 3

360 Tons Back-Lift Heavy-Load Agv Robot Transfer Trolley

Customization:	Available
Control Mode:	Manual Rocker
Drive Mode:	Electric

Send Inquiry

Product Description

Basic Specifications

Model NO.

360 tons back-lift heavy-load AGV

Load Capacity

360t

Type

AGV (Automated Guided Vehicle)

Material

Steel

Certification

CE, SGS, ISO9001

Travel Speed

0-20m/Min

Lifting Height

300mm

Power Supply

Lithium Battery

Dimensions

L11500*W3000*1150mm

Stop Accuracy

±10mm

Product Description

Rated load:	360T
Equipment deadweight:	35T
Body shape:	L11500W30001150mm
Navigation mode:	manual rocker
Drive mode:	differential drive
Lifting speed:	10mm/s-15mm/s
Chassis ground clearance:	200mm
Maximum climbing ability:	5°
Safety protection:	safety edge touch + sound and light alarm + width indicator light + emergency stop button

AGV Management and Control System

The AGV Control system is connected with the MES system with automatic/manual dual insurance scheduling mode. The MES system issues instructions for handling tasks to the AGV scheduling system. Then scheduling system issues instructions for handling to AGV vehicles. After the AGV completes the tasks, it feeds back the completion information to the MES system.

✔

Real-time dynamic monitoring of the position in the electronic map.

✔

Intelligent traffic control at intersections for safe driving.

✔

Automated updating of operating parameters for improved efficiency.

Automatic Charging Device

This automatic charging device is developed to meet the need of frequent material delivery. When its energy is lower than the preset value, the AGV will move to the charging station and communicate with this charging device. After the connection establishment, the charge electrodes will dock with the AGV automatically. This device keeps the operator away from moving heavy batteries, making the whole system much more humanized and automated.

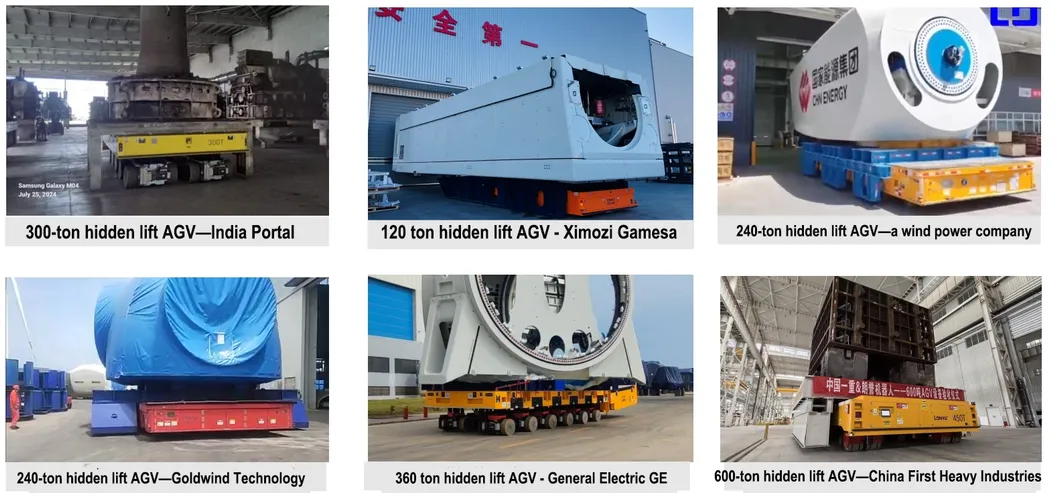

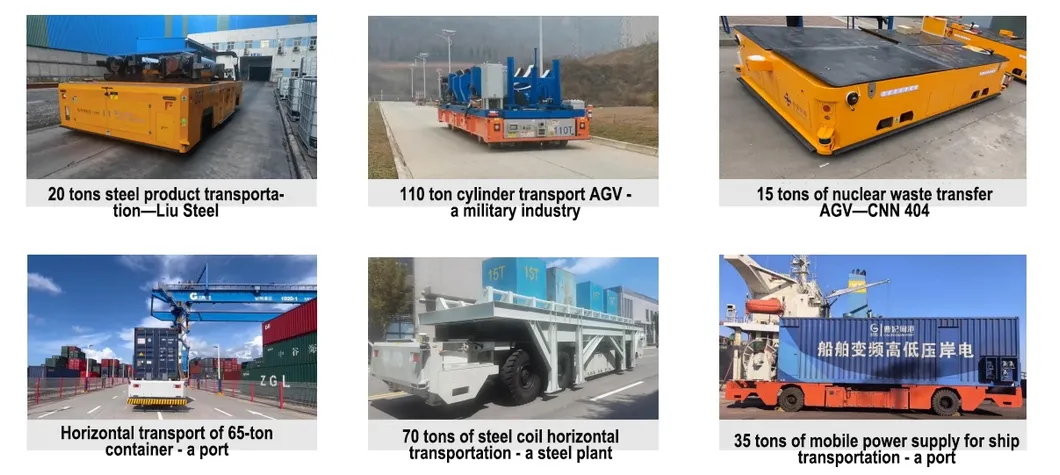

Application Scenarios

Certifications

Questions & Answers

Would an AGV be a good solution?

Yes, if you need a movable platform to move materials, components, and other items horizontally. The weight of the load and the travel requirements of the application must be considered for the right choice.

What are the benefits of using heavy-duty AGVs?

They offer easy operation, high safety, and stable performance. Features include automatic lifting, hydraulic independent suspension, automatic leveling, and adaptability to uneven ground.

What applications use heavy-duty AGV transfer vehicles?

Mainly used in warehousing, manufacturing, ports, airports, and special industries to handle overweight or overlong materials, improving logistics automation and production efficiency.

How does the automatic charging system work?

When the battery level falls below a preset value, the AGV automatically navigates to a charging station, docks with the electrodes, and returns to work once charged without human intervention.

What safety features are included for protection?

The system includes a safety edge touch sensor, sound and light alarms, width indicator lights, obstacle detection, and multiple emergency stop buttons for maximum site safety.

How is the AGV controlled and scheduled?

It uses a central management software that integrates with MES systems, allowing for real-time monitoring, traffic control at intersections, and automated task dispatching.
