Product Description

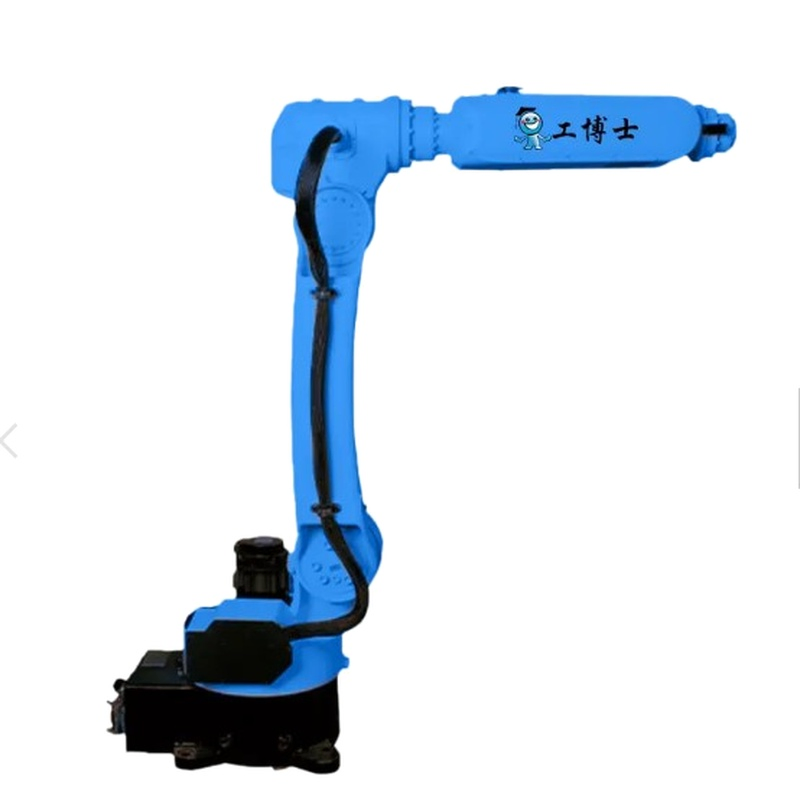

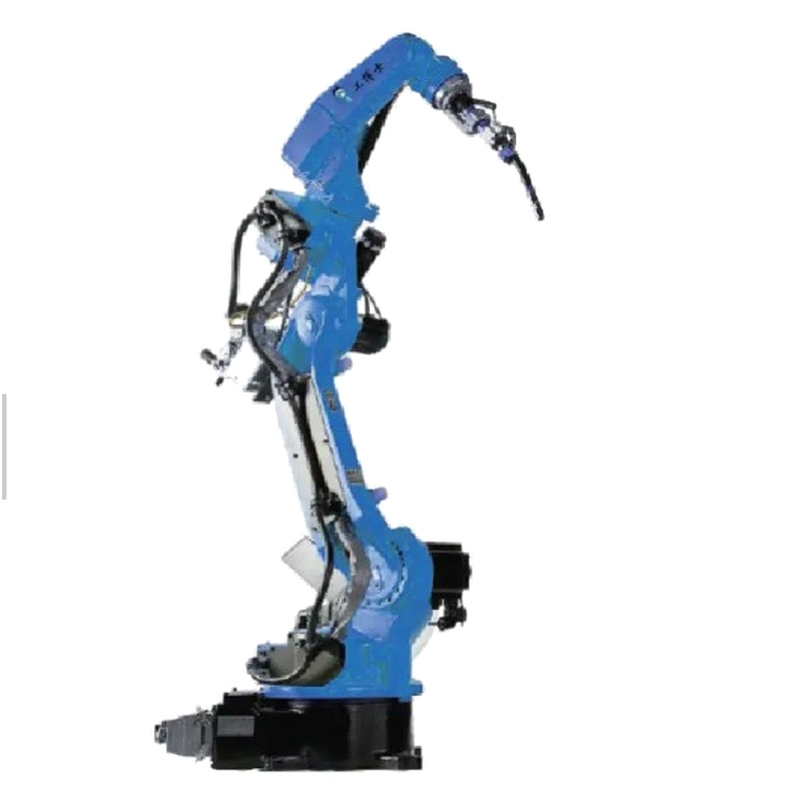

The GBS10-C1650 is a high-performance material handling robot designed for industrial automation, featuring a 10kg payload capacity and 1650mm reach. It ensures high-speed, precise, and repeatable operations, making it ideal for assembly, palletizing, machine tending, and packaging applications.
Product Parameters
| Parameter |
Value |
| Model | GBS10-C1650 |
| Payload Capacity | 10 kg |

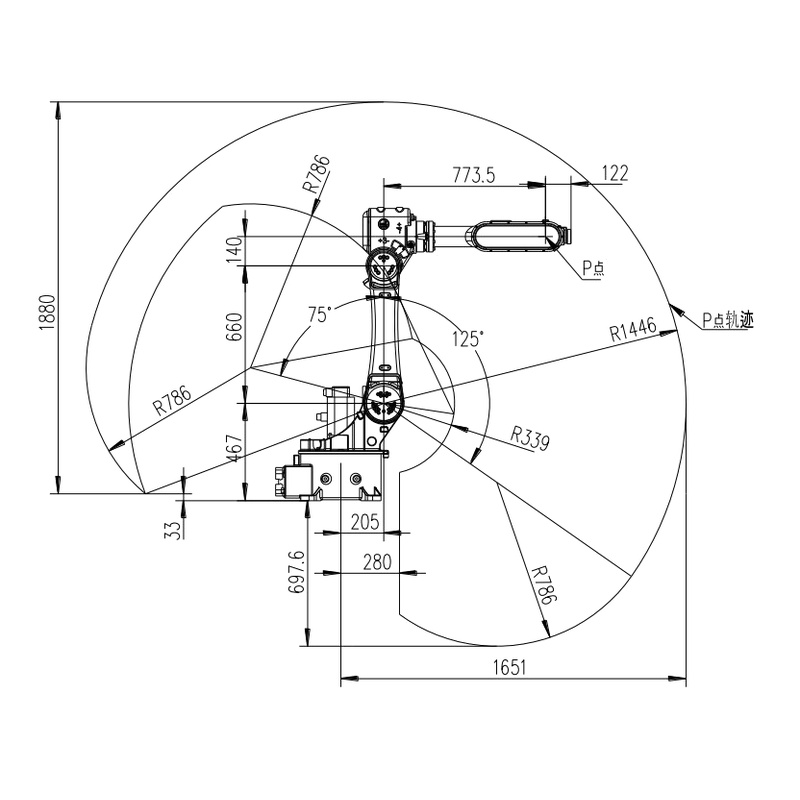

| Maximum Reach | 1650 mm |
| Repeatability | ±0.05 mm |
| Axes | 6-axis (articulated arm) |
| Control System | Servo-driven with PLC/PC interface |
| Speed | Up to 1.5 m/s (adjustable) |
| Mounting | Floor, wall, or ceiling mount |
| IP Rating | IP54 (dust and splash-proof) |
| Power Supply | 220V AC, 50/60Hz |
| Communication | Ethernet, RS485, Modbus RTU |
Key Features
1. High Precision & Repeatability: Ensures ±0.05mm repeatability, suitable for high-accuracy tasks like assembly and CNC machine tending.
2. Flexible Integration: With 6-axis articulation, it supports multiple mounting options for seamless integration.
3. Energy-Efficient Operation: Servo-driven system minimizes power consumption and includes regenerative braking.
4. Easy Programming: Supports teach pendant and PC-based control with Modbus RTU, Ethernet, and RS485 support.
5. Durable Design: IP54-rated enclosure resists dust and splashes with sealed joints for long life.
Application Scenarios
- Assembly & Pick-and-Place: Handles small parts and electronic components with high precision.
- Palletizing & Depalletizing: Efficiently stacks boxes or containers in warehouse operations.
- Machine Tending: Works with CNC machines and injection molding for automated loading/unloading.
- Packaging & Sorting: Performs labeling and sealing tasks in various industries.
Installation & Maintenance
Setup: Ensure a stable surface, connect to 220V AC with proper grounding, and use the teach pendant for calibration.
Maintenance: Inspect joints and cables regularly. Apply grease every 6 months and ensure dust cleaning to prevent wear.
Frequently Asked Questions
1. What is the maximum payload of the GBS10-C1650?
The GBS10-C1650 has a 10kg payload capacity, making it suitable for medium-duty material handling in assembly, packaging, and machine tending applications.
2. How accurate is the GBS10-C1650 robot?
This robot offers ±0.05mm repeatability, ensuring high precision for tasks like assembly, CNC loading, and electronics handling.
3. Can the GBS10-C1650 be integrated with PLCs?
Yes, it supports Modbus RTU, Ethernet, and RS485 communication, allowing seamless integration with PLCs, HMIs, and SCADA systems.
4. What industries benefit most from this robot?
It is widely used in automotive, electronics, food & beverage, pharmaceuticals, and logistics for assembly, palletizing, and packaging.
5. How is the robot programmed?
Programming can be done via an intuitive teach pendant or PC software, allowing path teaching and I/O mapping without advanced coding skills.
6. What maintenance is required?
Routine inspection of joints and cables is recommended. Lubrication every 6 months ensures smooth operation and long service life.
