Heavy Load Industrial Welding Machines & Robots with Stable Performance and High Efficiency for Automated Production Line and Metalworking

Application:	Automotive Industry, Metal Fabrication Industry
Control Mode:	Continuous Path Control
Degrees of Freedom:	6-axis

Send Inquiry

Product Description

📊

Basic Specifications

Model

Resistance Welding Robot

Drive Mode

Electric

Type

Articulated Robot

Number of Axes

Working Radius

2700mm

Position Accuracy

±0.06 mm

Rated Payload

210 Kg

IP Rating

IP54/IP65

Control System

Frc 1.0

Origin

China

⚙️

Product Description

Rail and Positioning System: This advanced solution incorporates robotic positioning systems for high-precision movement, versatile welding positioners for flexible part rotation, and stable fixed ground rail systems. These components are designed to support sophisticated multi-station automated welding production lines.

Proven Application: The system has been successfully deployed in automotive body welding workshops, significantly enhancing welding efficiency and fixture utilization rates.

📸

Detailed Technical Views

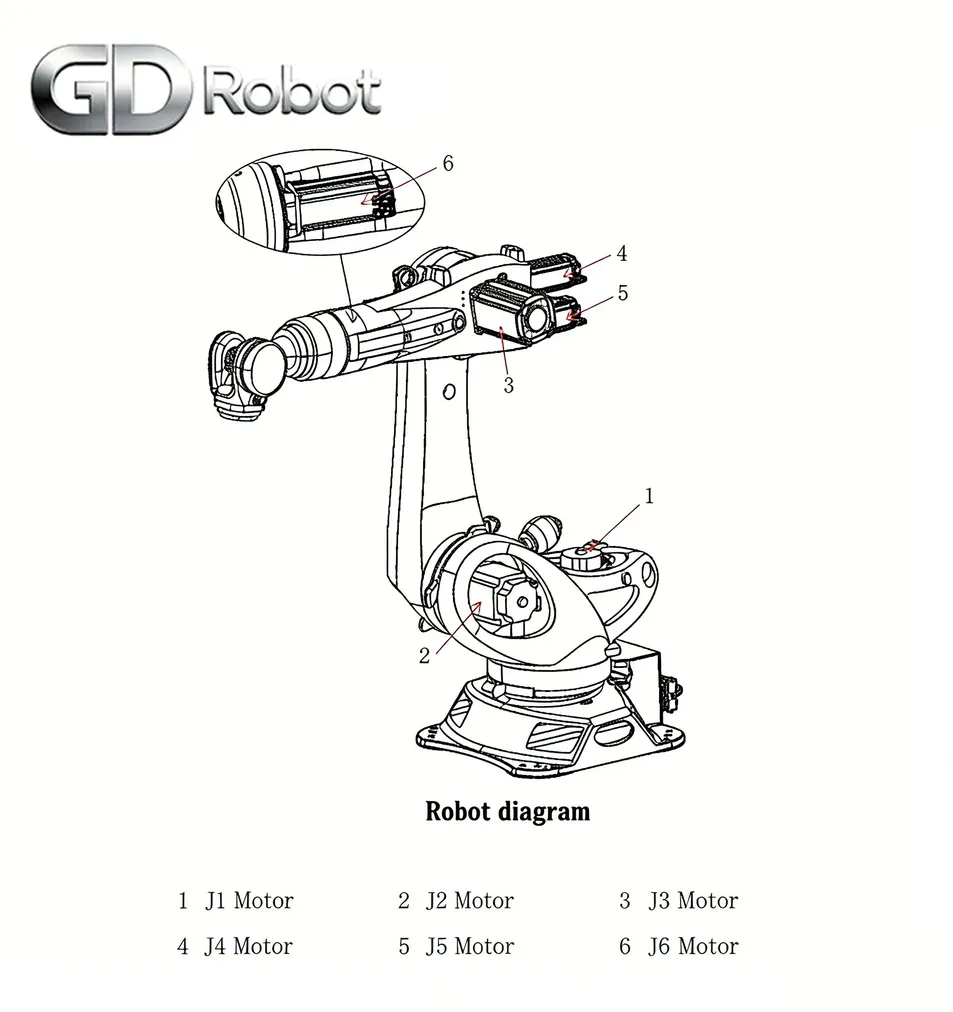

Robot Structural Diagram

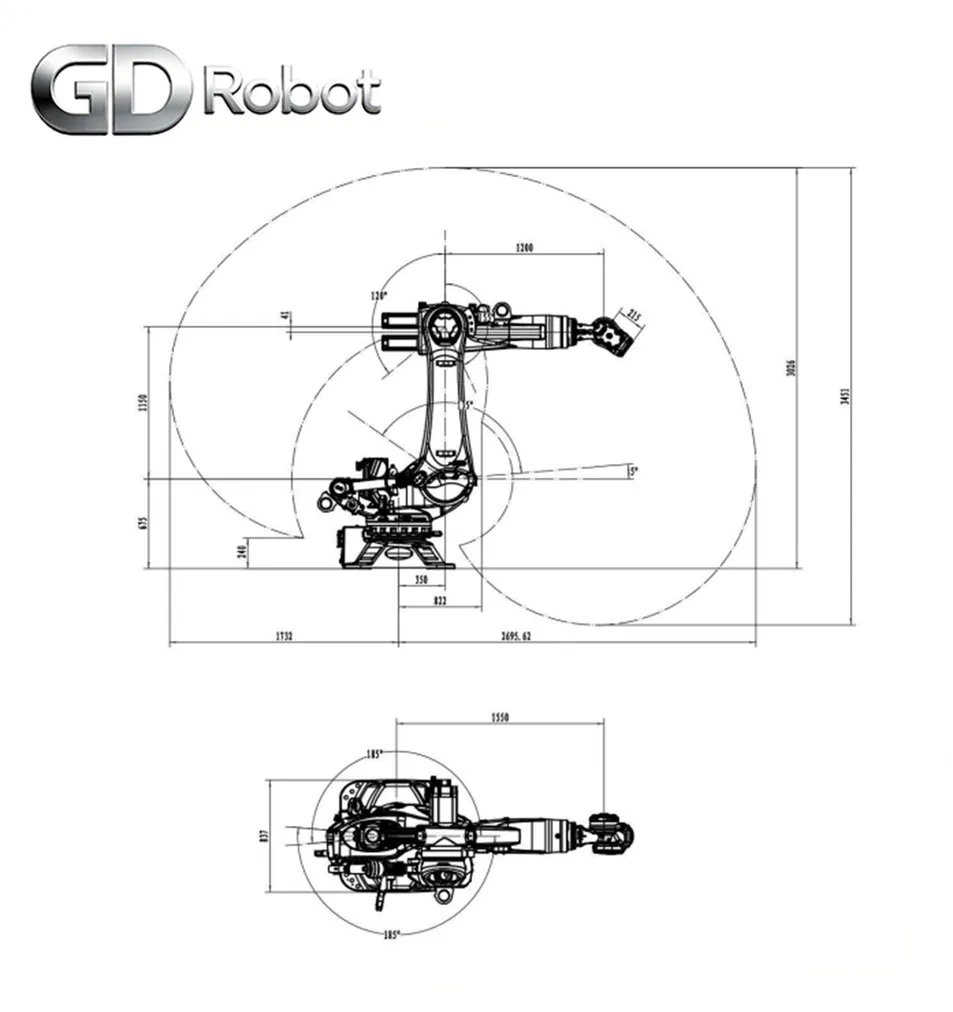

Outline Dimensions and Working Range

📋

Detailed Specification

Item	Axis	Value / Range
Rated Load Speed (°/s)	J1	123
	J2	115
	J3	112
	J4	179
	J5	172
	J6	219
Joint Motion Range (°)	J1	±182.5
	J2	-82.5 ~ +47.5
	J3	-62.5 ~ +207.5
	J4	±350
	J5	±120
	J6	±350
Body Weight	-	1140 Kg
Repeat Accuracy	-	±0.06 mm
Input Voltage	-	380V 3AC

📦

Packing & Delivery

Package Size

270 x 150 x 220 cm

Gross Weight

1300.00 kg

🏭

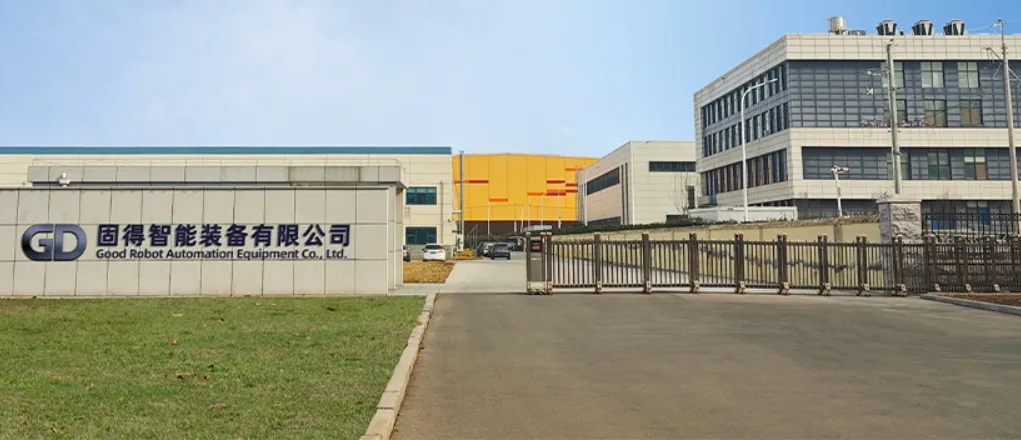

Manufacturing Excellence

Our facility is a high-tech enterprise specializing in the R&D and production of industrial robots, gantry robots, robot linear guides, and welding positioners. We provide customized automation solutions across various industrial fields including welding, palletizing, metal processing, and spraying.

Professional R&D for industrial automation.
Annual production capacity of 1,000+ welding positioners.
Over 50 types of customized automation solutions annually.
OEM/ODM services available for international clients.

🚀

Applications & Testing

Broad Industry Application: Engineering machinery, industrial equipment, agricultural machinery, commercial vehicles, passenger vehicles, and new energy vehicle manufacturing.

Strict Quality Testing: Includes spot welding strength testing, resistance welding current monitoring, and comprehensive automated welding line simulation testing.

❓

Frequently Asked Questions

Q1: Which materials are most suitable for this resistance welding robot? A1: It is primarily designed for high-efficiency welding of steel and various sheet metal components.

Q2: Is this robot compatible with standard welding clamps? A2: Yes, it is fully compatible with professional equipment like Obara welding clamps.

Q3: Can it be integrated into existing automated production lines? A3: Absolutely. The system supports ground rail systems and multi-station synchronization for full automation.

Q4: Are the welding fixtures and tooling customizable? A4: Yes, we provide full customization services for fixtures and tooling to meet specific production requirements.

Q5: What industries benefit most from this technology? A5: The automotive, heavy machinery, agriculture, and food machinery industries are the primary users.

Q6: What kind of after-sales support is provided? A6: We offer comprehensive technical support, including operator training and routine maintenance guidance.
