| Structure | Conveyor System | Application | Warehouse |
|---|---|---|---|
| Condition | New | Temperature | -5~45℃ |
| Weighing Range | 0.1~60kg | Weighing Accuracy | ±20g |
| Rating Power | ≤3.5kw | Fix Capability | 2600--3600 PS/Hour |
| Code Identify Accuracy | 99.9% | Working Voltage | AC220V/380V~50Hz |
| Loading Mode | Manual Loading/Automatic Feeding | Origin | China |

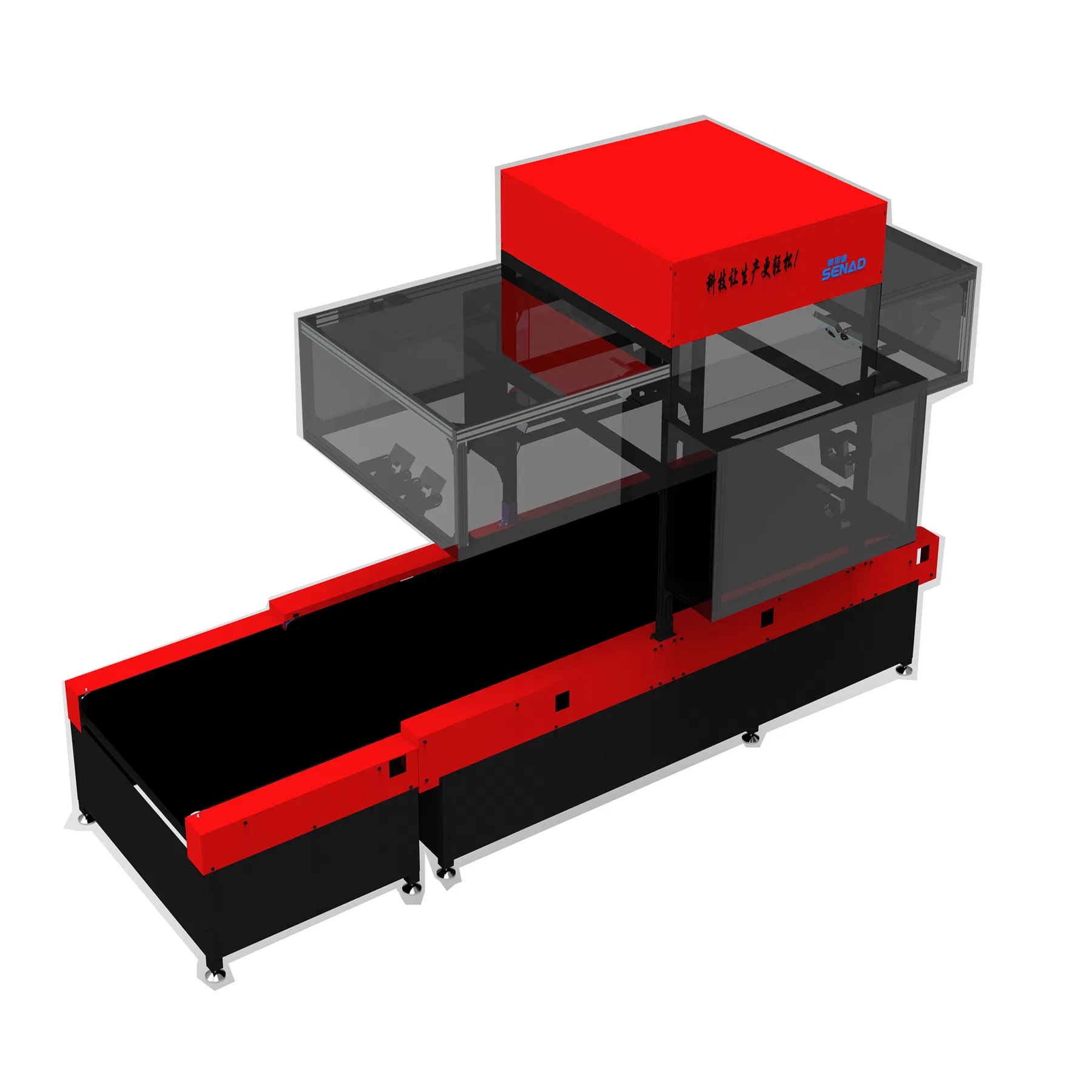

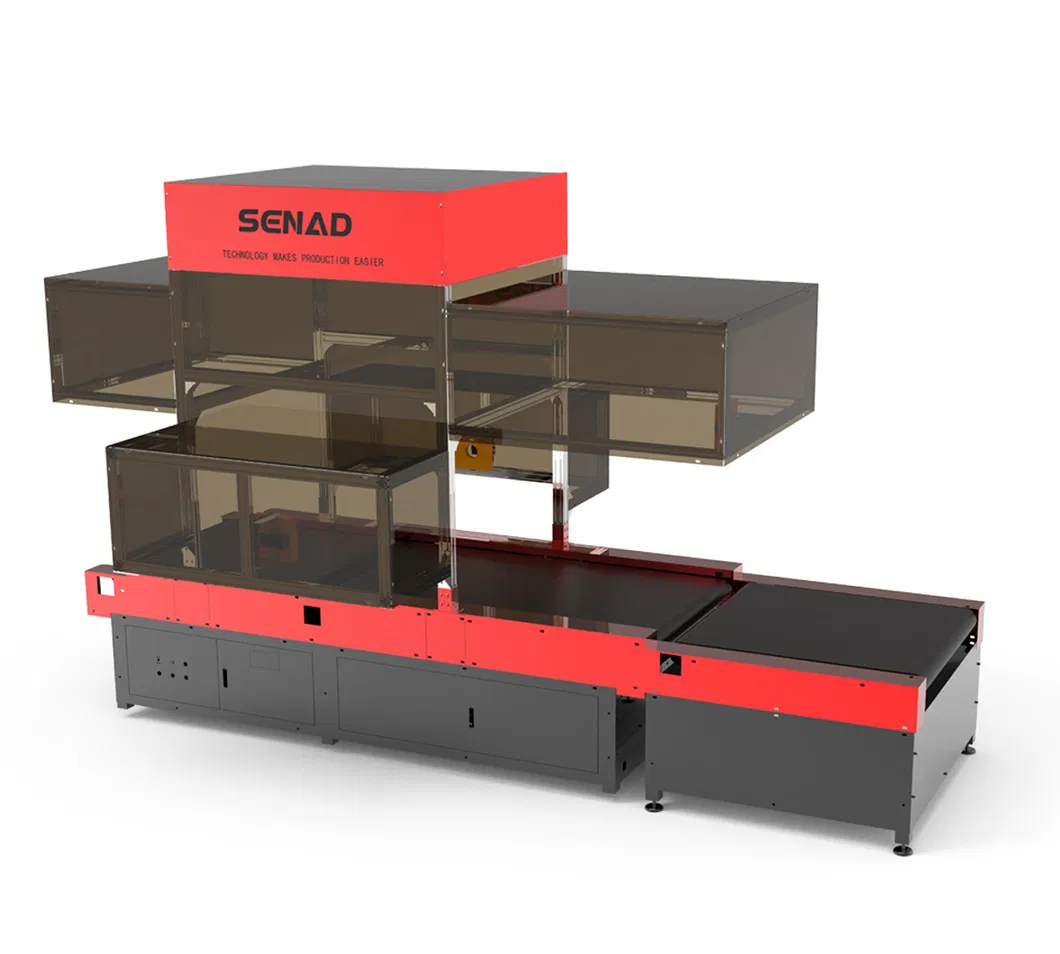

The barcode scanning weighing dimension measuring machine with extendable belt conveyor is designed for high-efficiency warehousing. This telescopic machine series integrates a dynamic DWS system and a flexible conveying system, allowing for the capture of package information while controlling secondary belt conveyors at flexible lengths.
This equipment realizes automatic truck loading and unloading, high-precision dynamic code reading, volume measurement, and parcel photoing for tracking references. Collected data can be seamlessly uploaded to warehouse management systems (WMS) or e-commerce platforms as a basis for shipping fee pricing.
| Item | Parameters |
|---|---|
| Main functions | 1D/2D code scanning (Five-side); weighing & volume measurement |
| Package type | Paper box, soft package, nylon bag, plastic bag, wooden box, etc. |
| Scanning size | Min. 50*50*20mm to Max. 800*800*800mm (L*W*H) |
| Rating power | ≤3.5KW |
| Working voltage | AC220V/380V~50HZ |
| Temperature | -5~45ºC |
| Fix Capability | 2600--3600 Ps/hour |
| Code identify accuracy | 99.9% |
| Weighing range | 0.1~60kg |
| Weighing accuracy | ±20g |
| Equipment size | 1660*1100*2600mm (L*W*H) |
| Application software | DWS software |
| Support system | Windows 7/10 or above; 32/64 bits |
| Software interface | HTTP; TCP; 485; |
Multiple packages can pass through simultaneously, and information for each package is accurately scanned and identified in real-time.
Features modular, standardized construction for quicker assembly. Simple, flexible placement of diverts allows for easy adjustments along the sorter length.

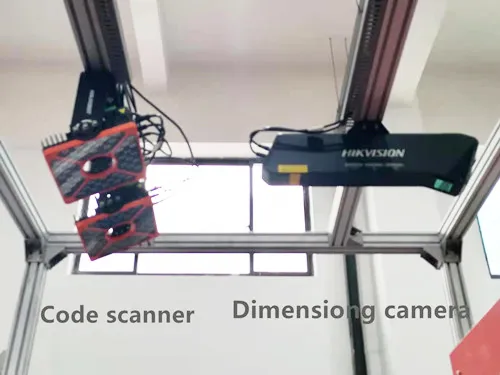

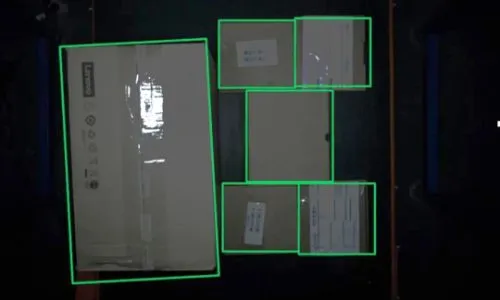

Utilizes high-definition imaging to accurately identify item information, achieving an accuracy rate of up to 99.9%.

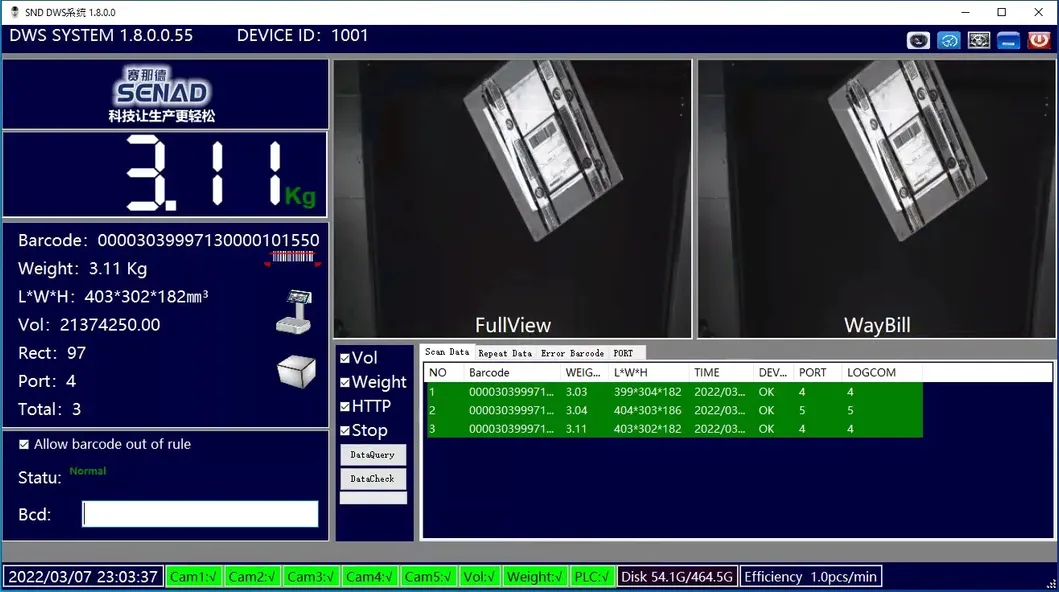

The operation interface displays size, weight, and barcode information. The language can be customized and supports docking with customer systems for automatic data output.
Suitable for: Envelopes | Soft Parcels | Big Packages | Various Boxes
Founded in 2012, our enterprise is a high-tech company concentrated on research, development, and production of high-end warehouse automation equipment. We provide both standard and customizable solutions for barcode scanning, weighing, volume measurement, and integrated sorting systems. By adopting machine vision, artificial intelligence, and pattern recognition, we aim to replace manual labor with high-efficiency robotic technology.
