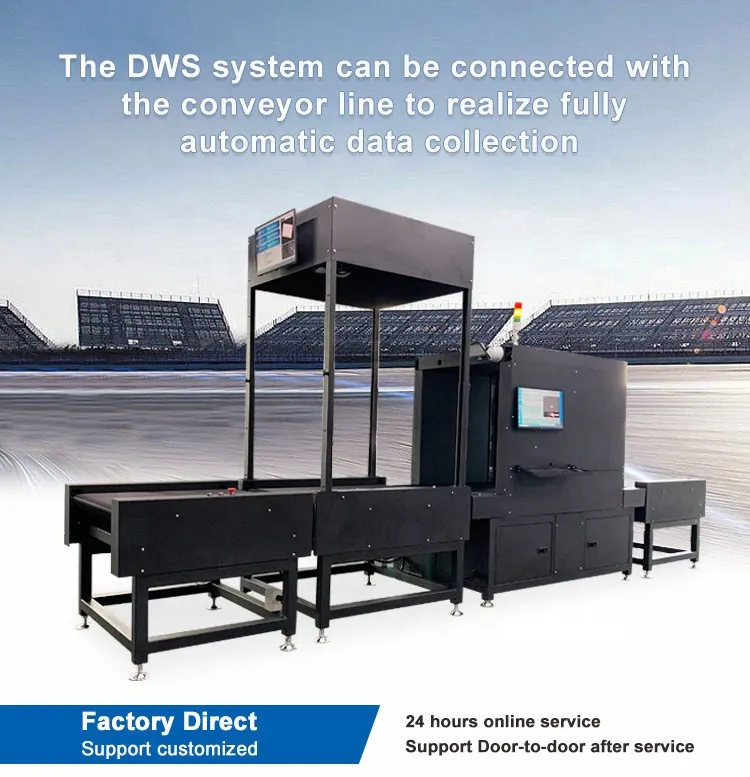

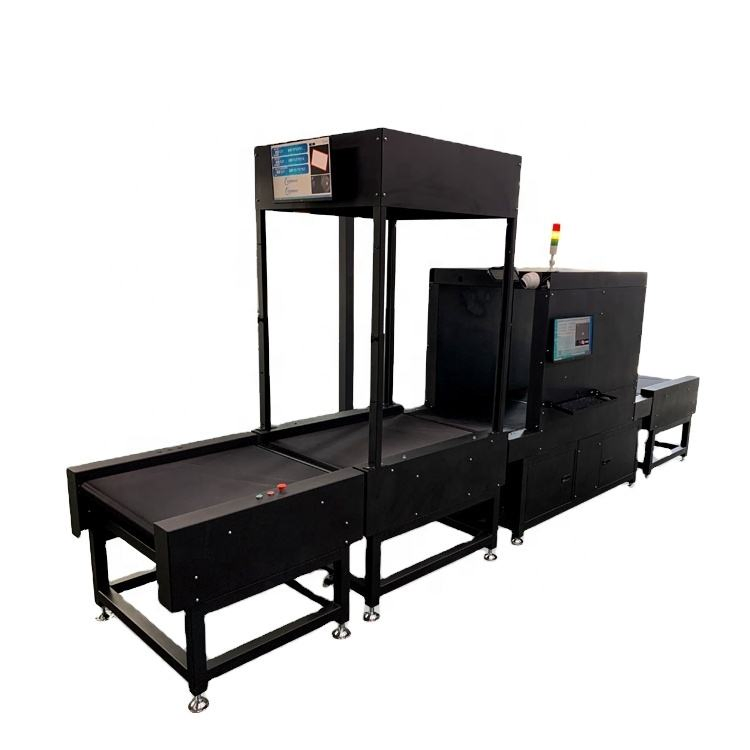

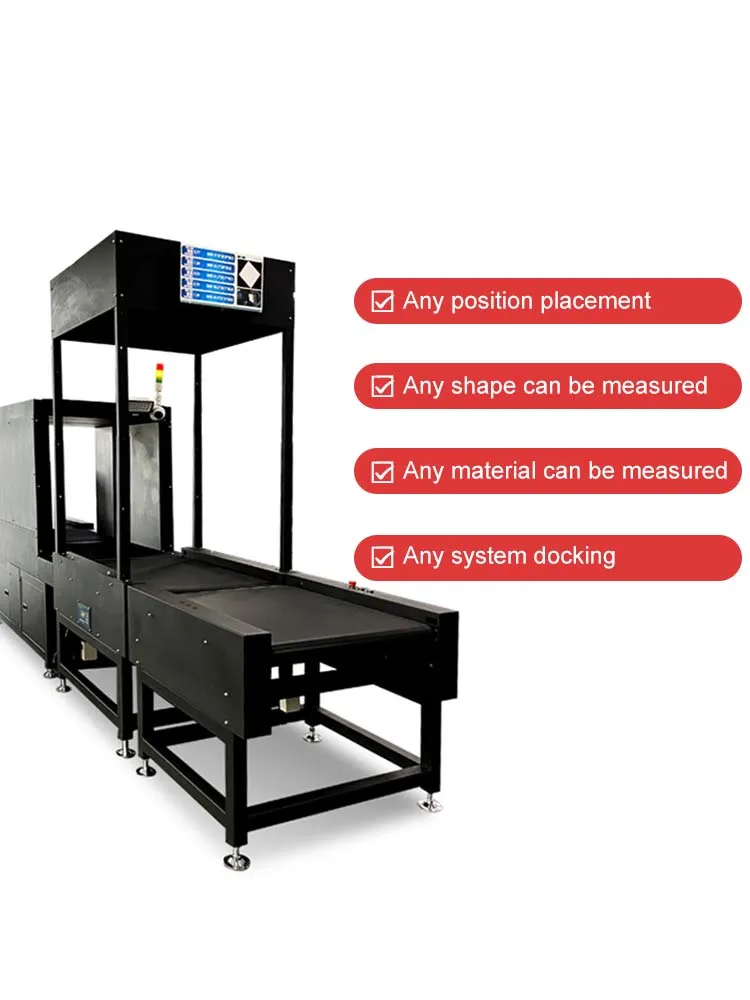

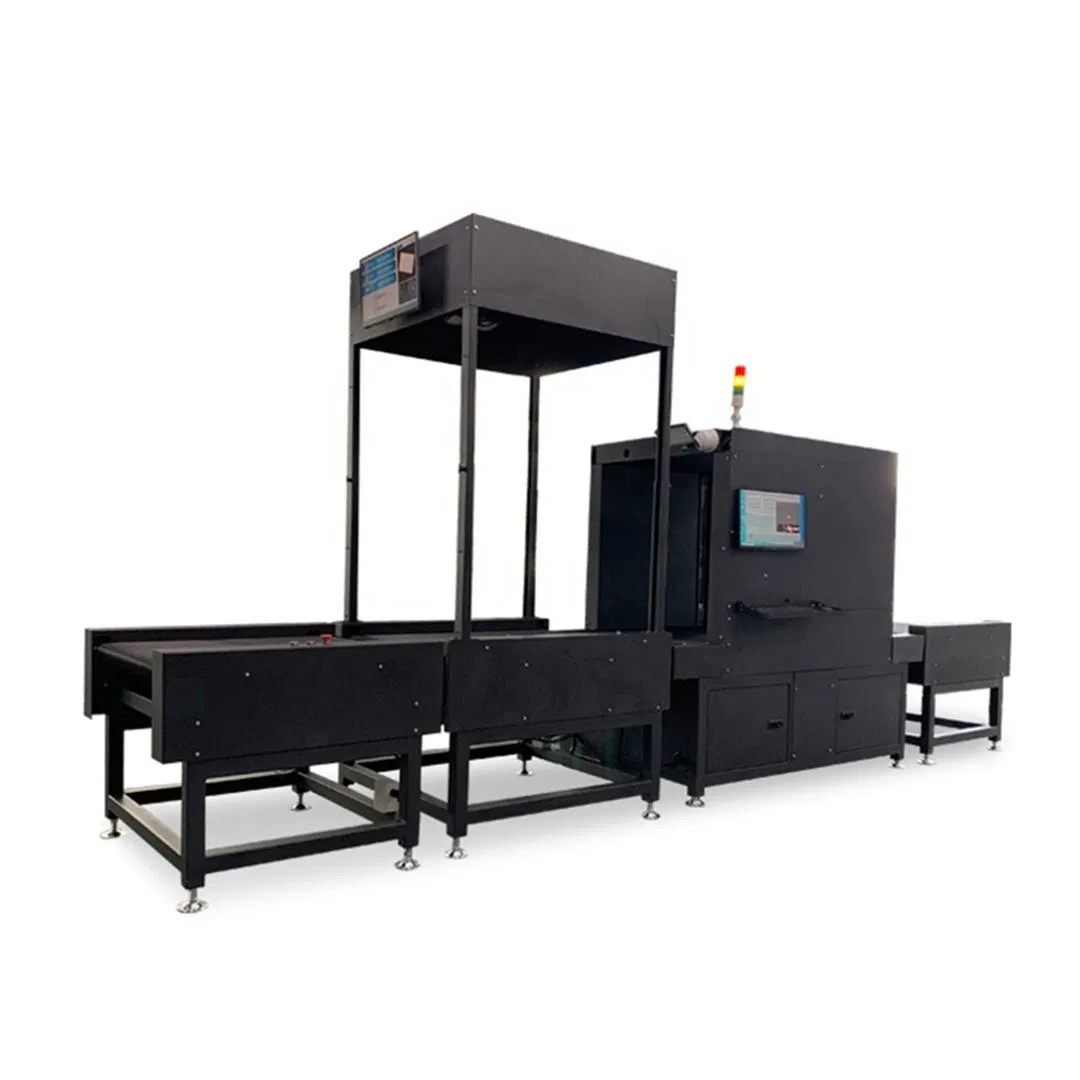

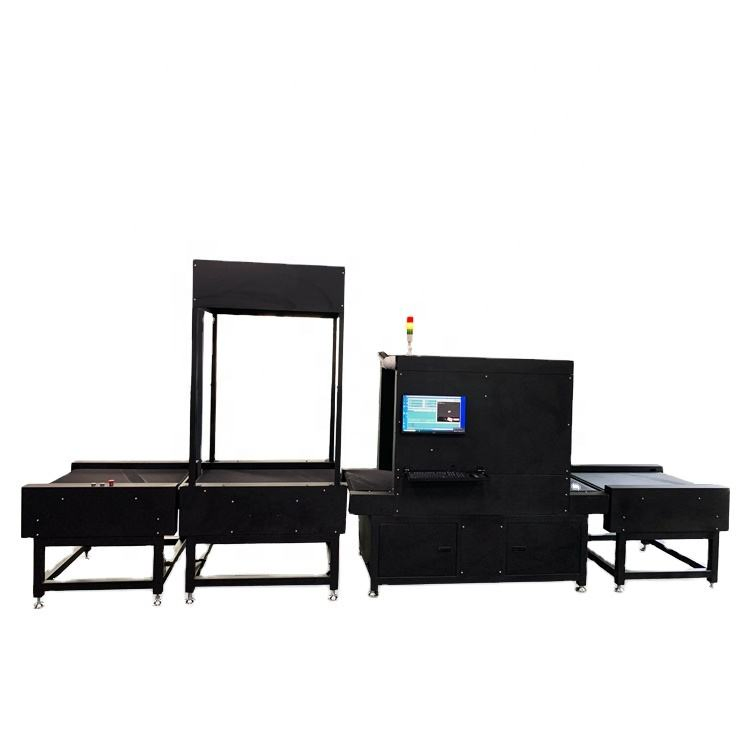

VPAI Dimension weight scanning system (DWS) integrated weight measurement system, modular design, configuration and maintenance is simple, can help enterprises to solve the one-time weighing, volume measurement, bar code recognition, manual input, camera archiving and other five basic functions, the main application Logistics distribution and warehousing links.

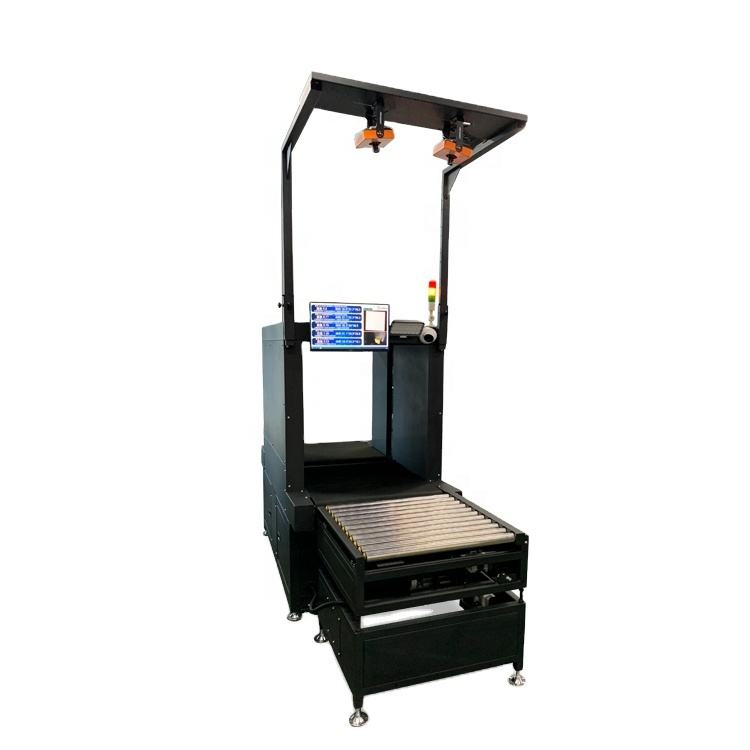

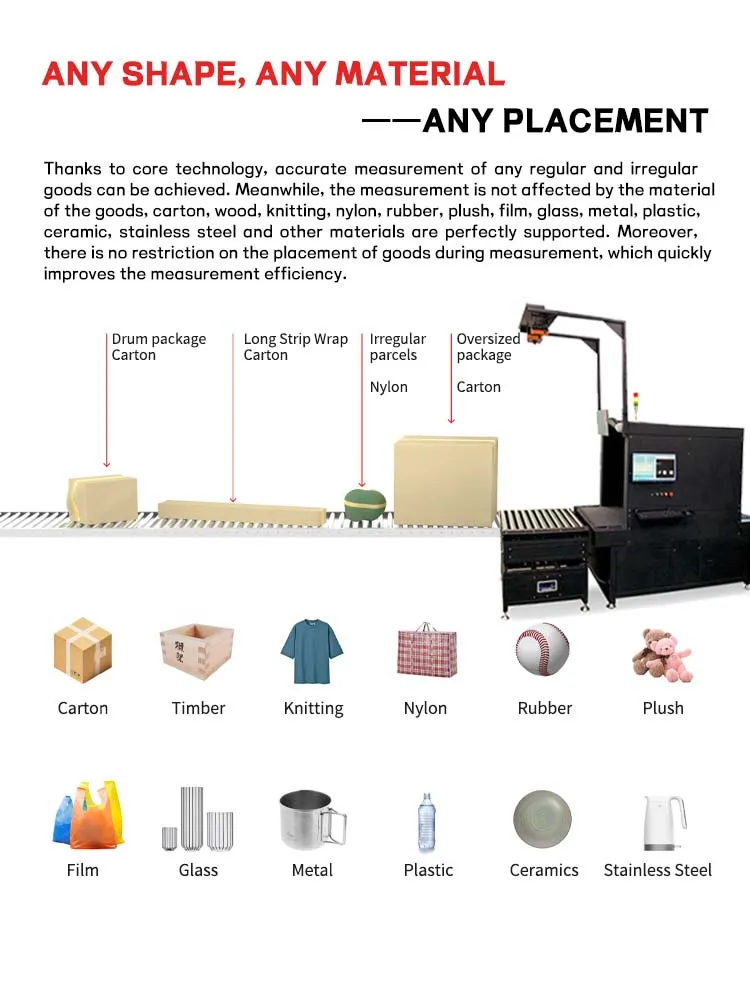

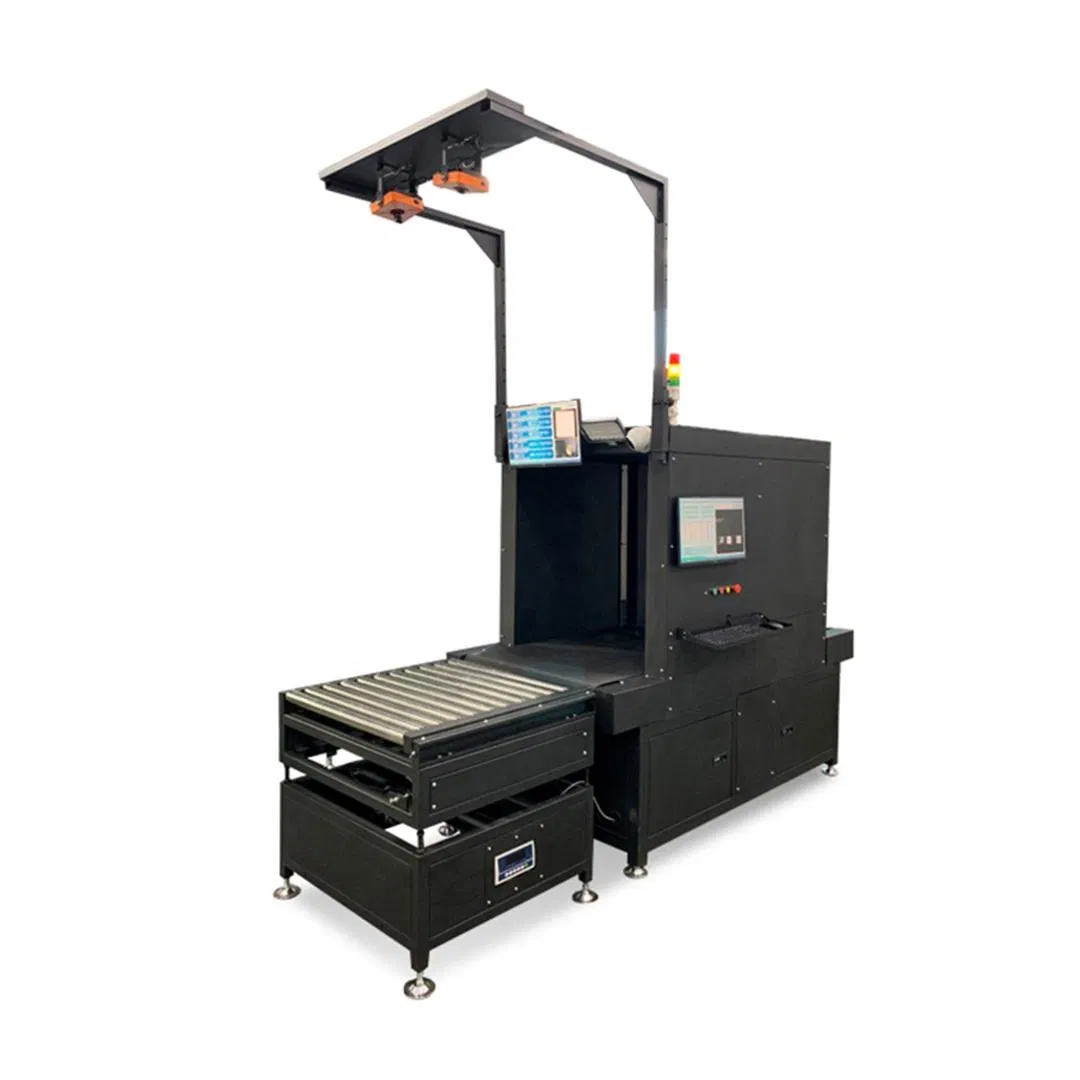

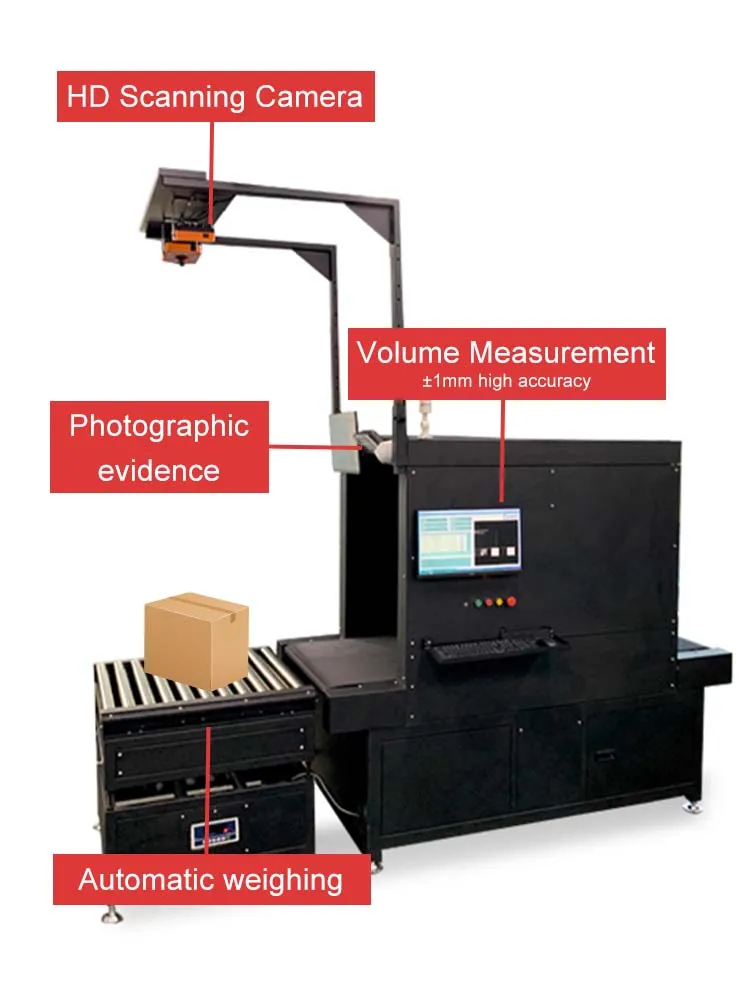

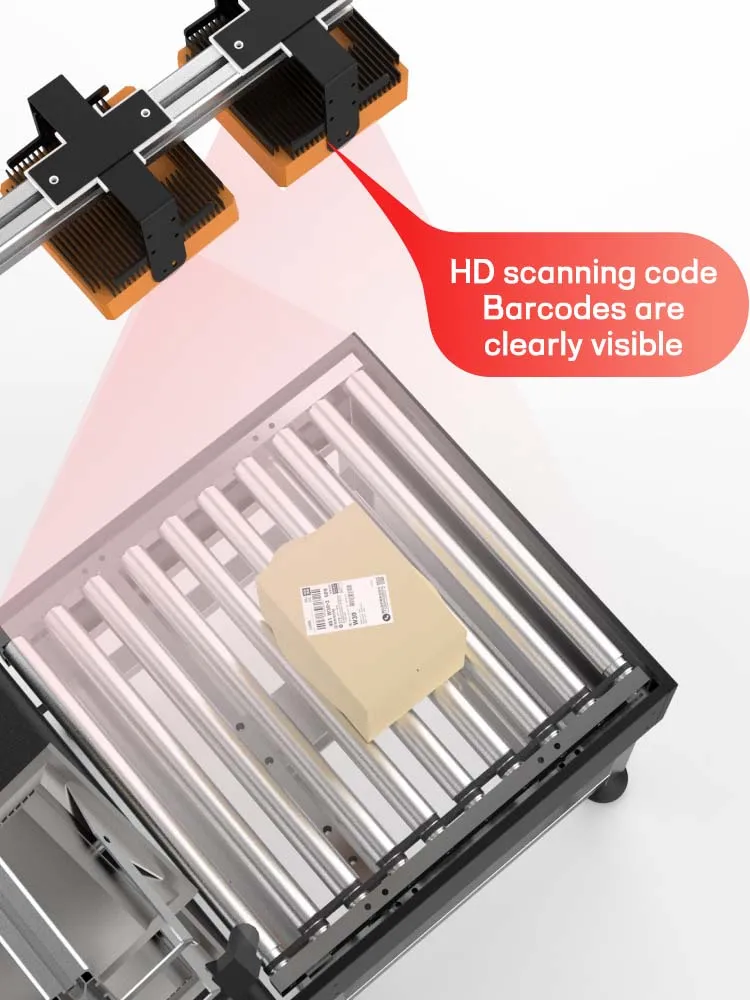

VPAI Dimensional weight scanner can capture any shaped parcel's dimension and weight and store high-quality product images. In addition, you can scan the parcel labels with an integrated barcode scanner and configure the touchscreen to capture any parcel data using custom fields without needing a laptop.

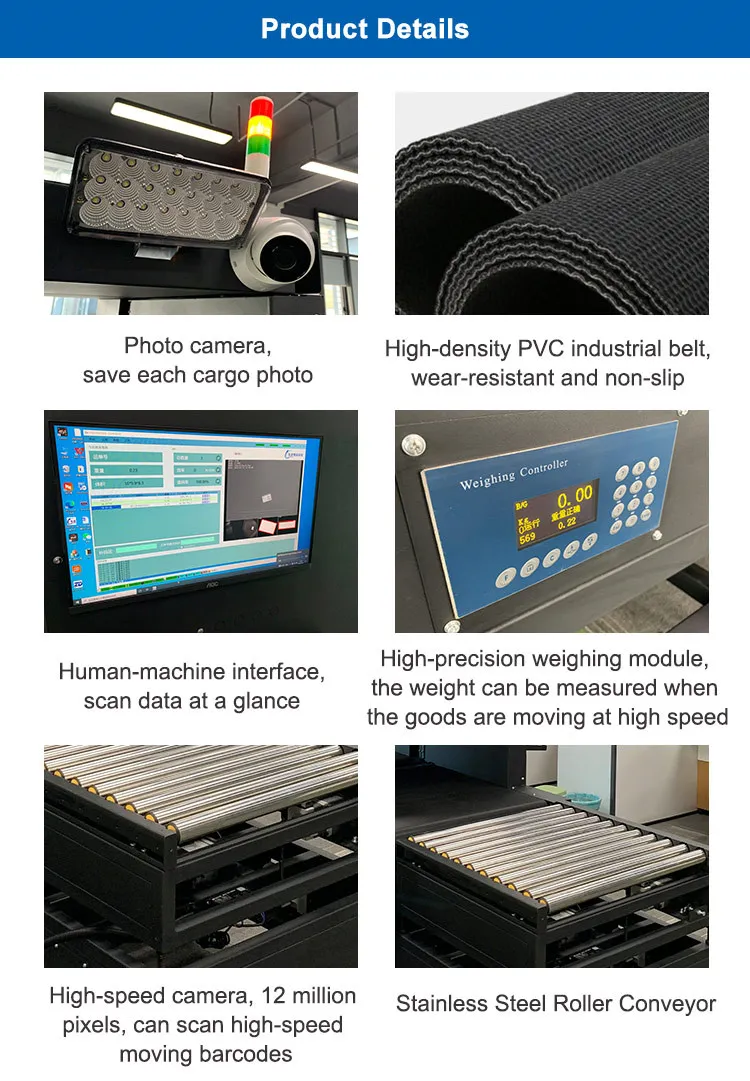

| Hardware | HD code scanning camera, Handheld gun, Intelligent high precision dynamic scale, Dynamic volume measurement line, Industrial computer, LCD display, PLC Control (Schneider Components). |
| Software | Image forensics and photography software, DWS Supporting Software. |
| Working Efficiency | 1200-2400 pieces/hour |
| Technical Parameters | Bar code recognition rate: ≥99.5% Weighing range: 0.1-50kg Weighing accuracy: ±20g Dimensional accuracy: ±1mm (average), max error +5mm |
| Cargo Size Limits | Min: 100*10*10mm | Max: 1000*800*800mm |
| Abnormal Alarm | Intercepts unread face sheets or damaged labels for manual handling. |
