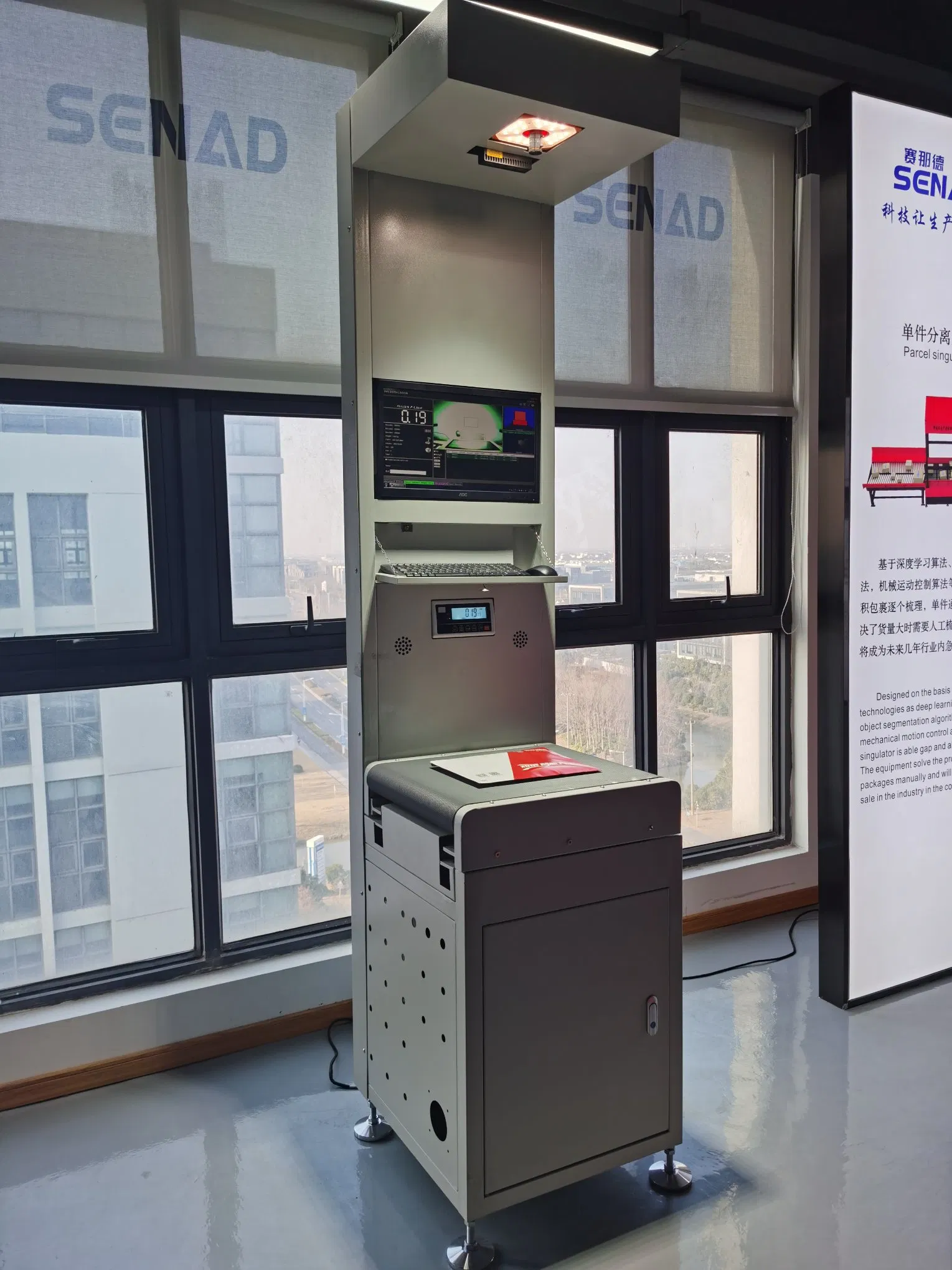

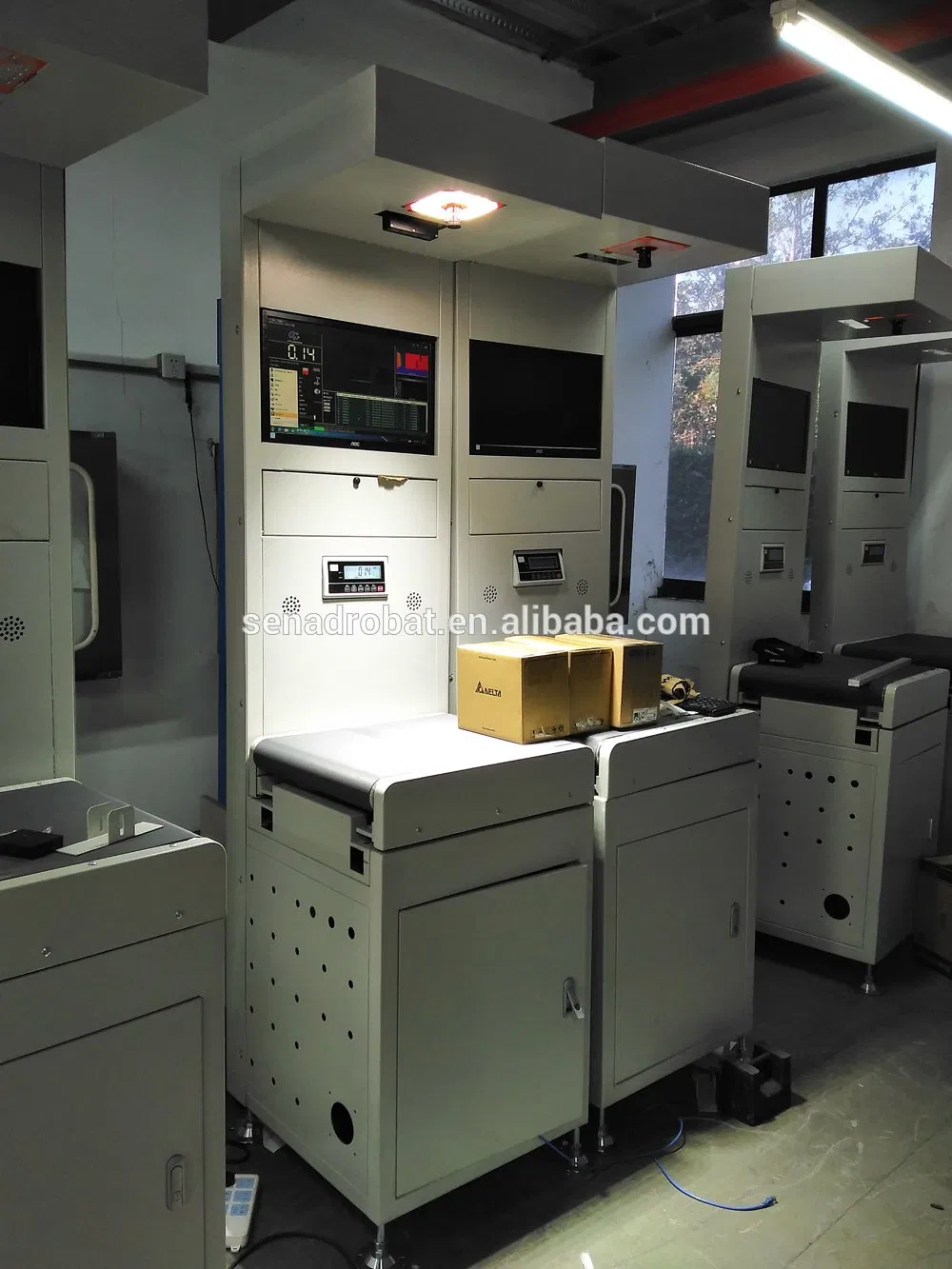

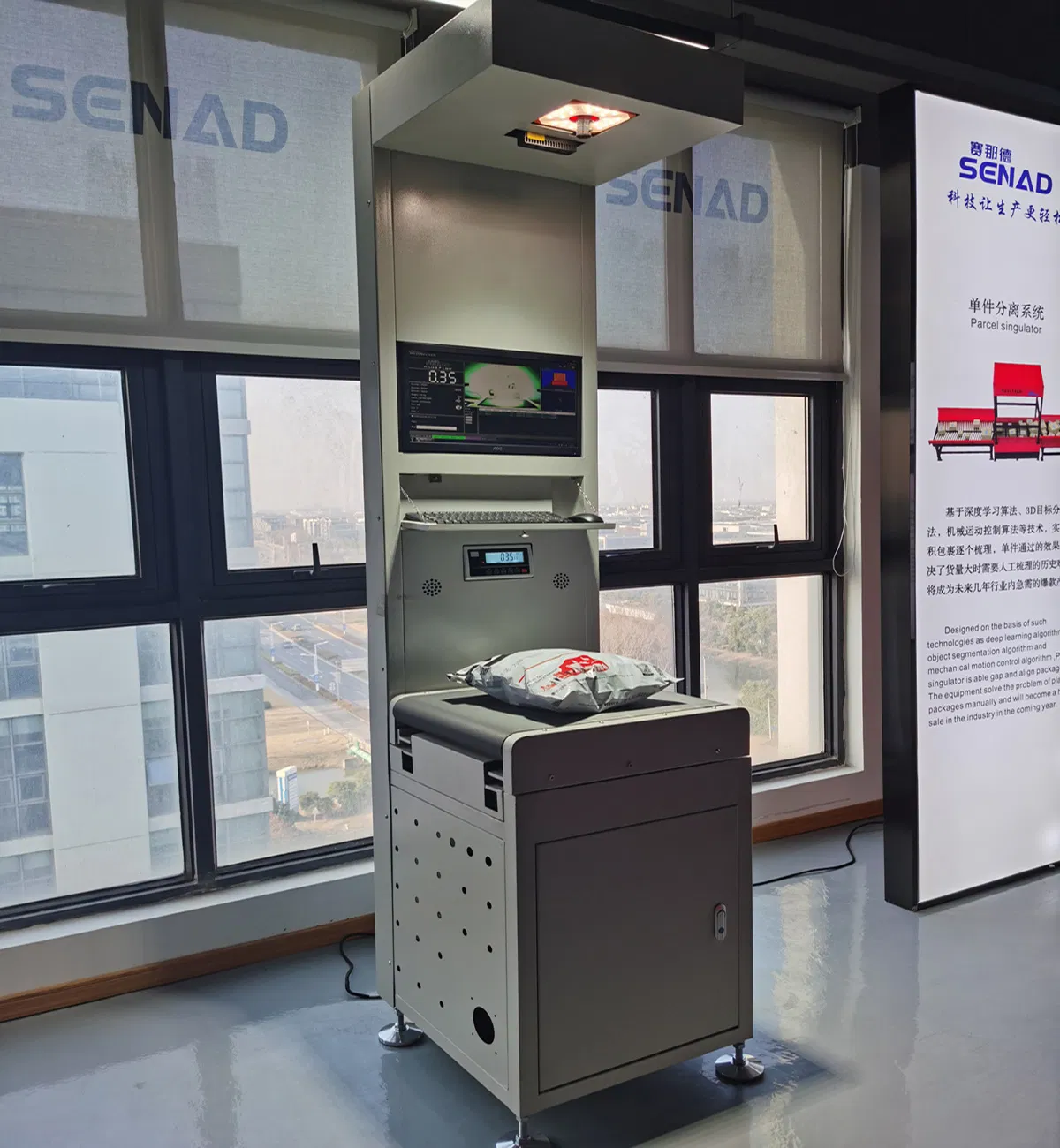

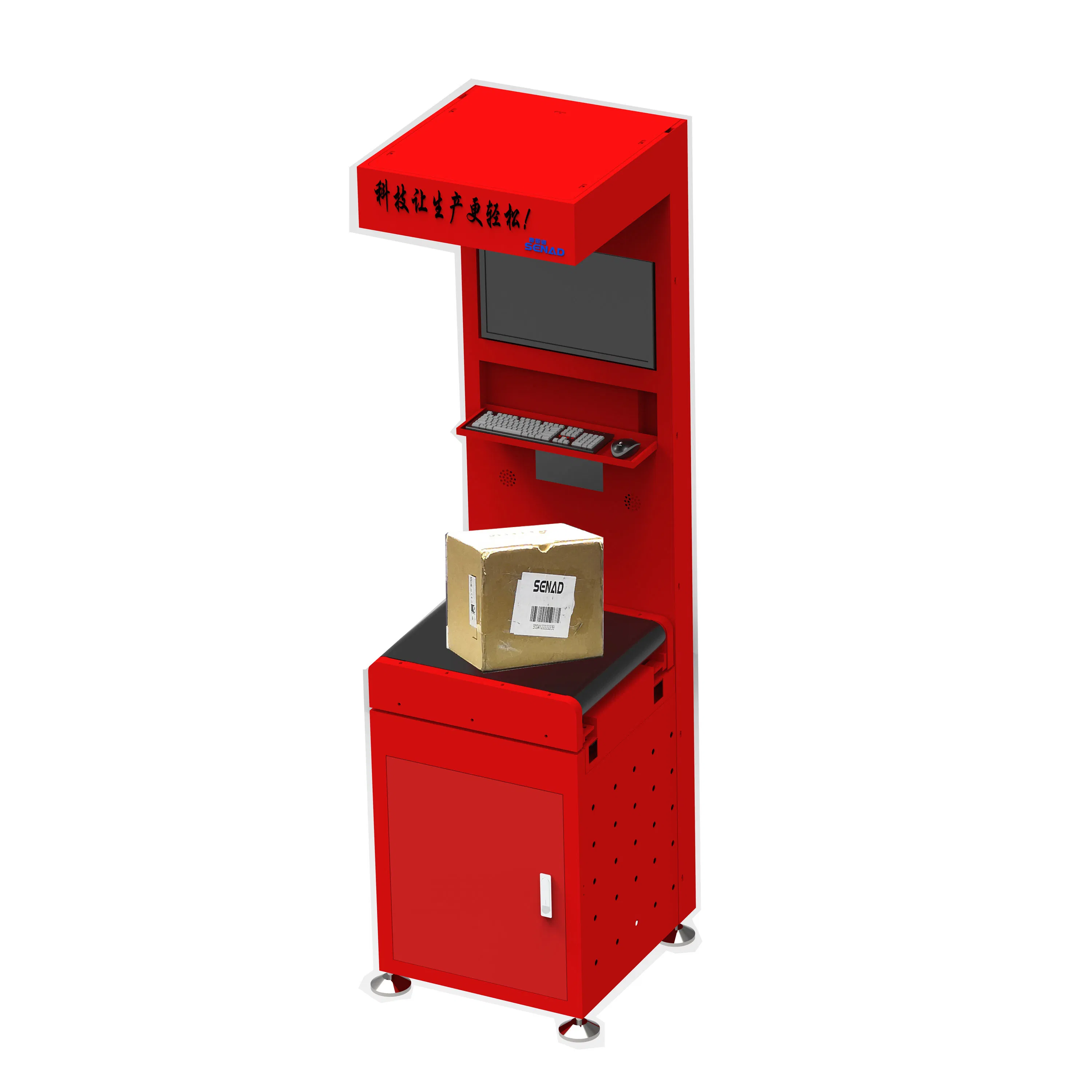

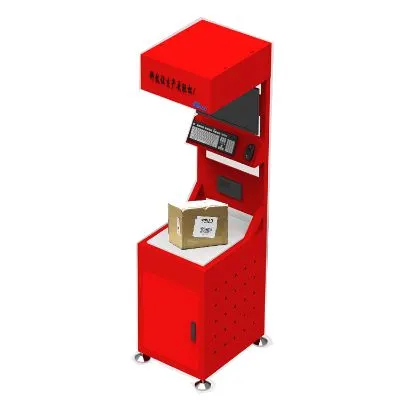

Small parcel DWS is mainly used to measure dimension weight and scan barcode of parcels in logistics, e-commerce, and other relevant industries. When a package is put on it manually, the data of weight, dimension, and code will be collected, saved in local disk, and uploaded to customers' management system. These data can also be exported as Excel files. Parcels can be sorted to two different destinations.
| Parts | Configuration |
|---|---|
| Industrial computer | Intel I5 |
| Display | 19.5 inches LCD |
| Camera | 20 million pixel Industrial camera |
| Keyboard/mouse | Logitech |
| Load cell | 100kg |
| Bracket | Customized |
| Index | Parameter |
|---|---|
| Weighing range | 30g~20kg |
| Dimensioning range | 50*50*50~500*500*500mm |
| Capacity | 1000~1500pcs/hour |
| Recognition rate | 99% |
| Dimensioning accuracy | ±5mm |
| Weighing accuracy | ±20g |
| Scanning accuracy | 99% |
| Software Interface | HTTP, TCP, 485 |
| Remote diagnosis | Yes |

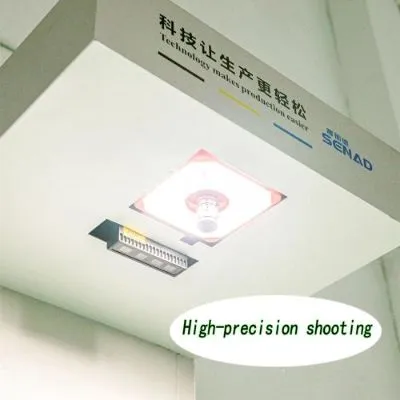

High-precision shooting cameras can accurately scan and record item information, realize storage records, and improve recognition capabilities.

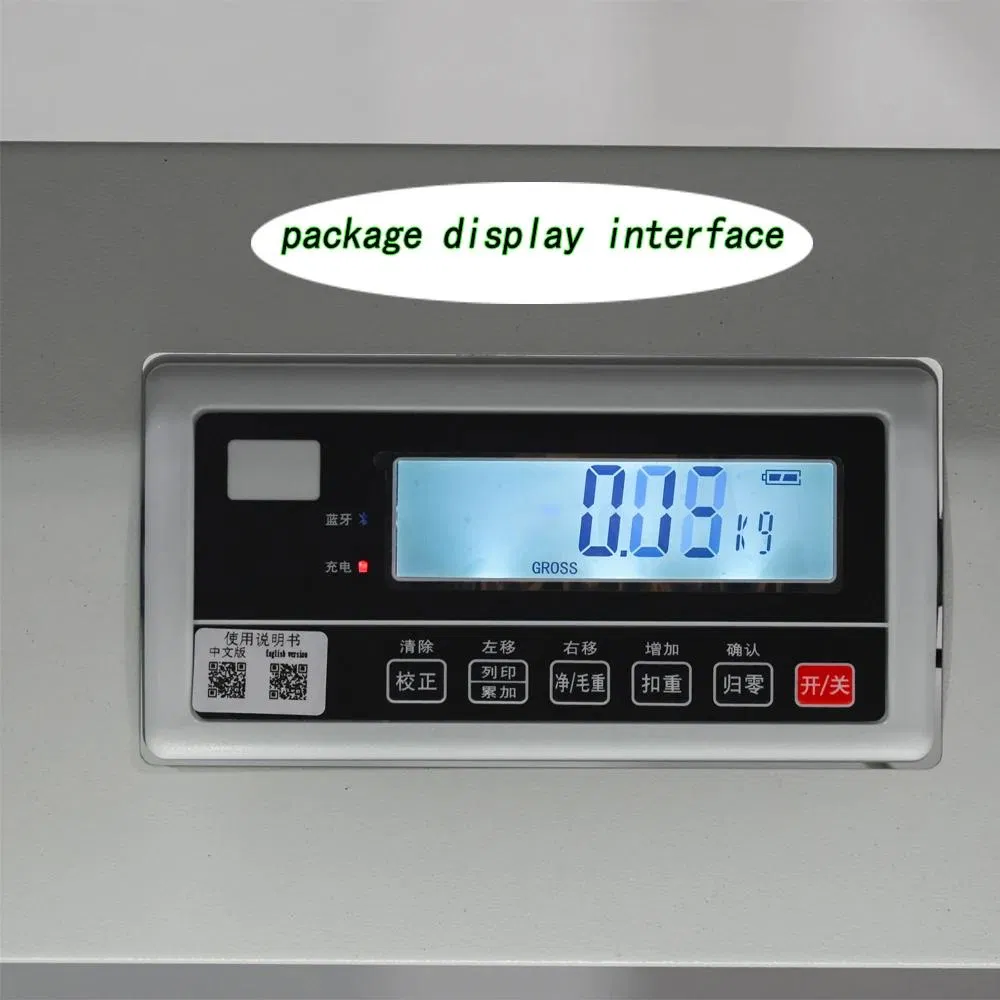

Clearly displaying the detailed information of each package, including weight and size, and then performing automatic sorting operations to improve work efficiency.

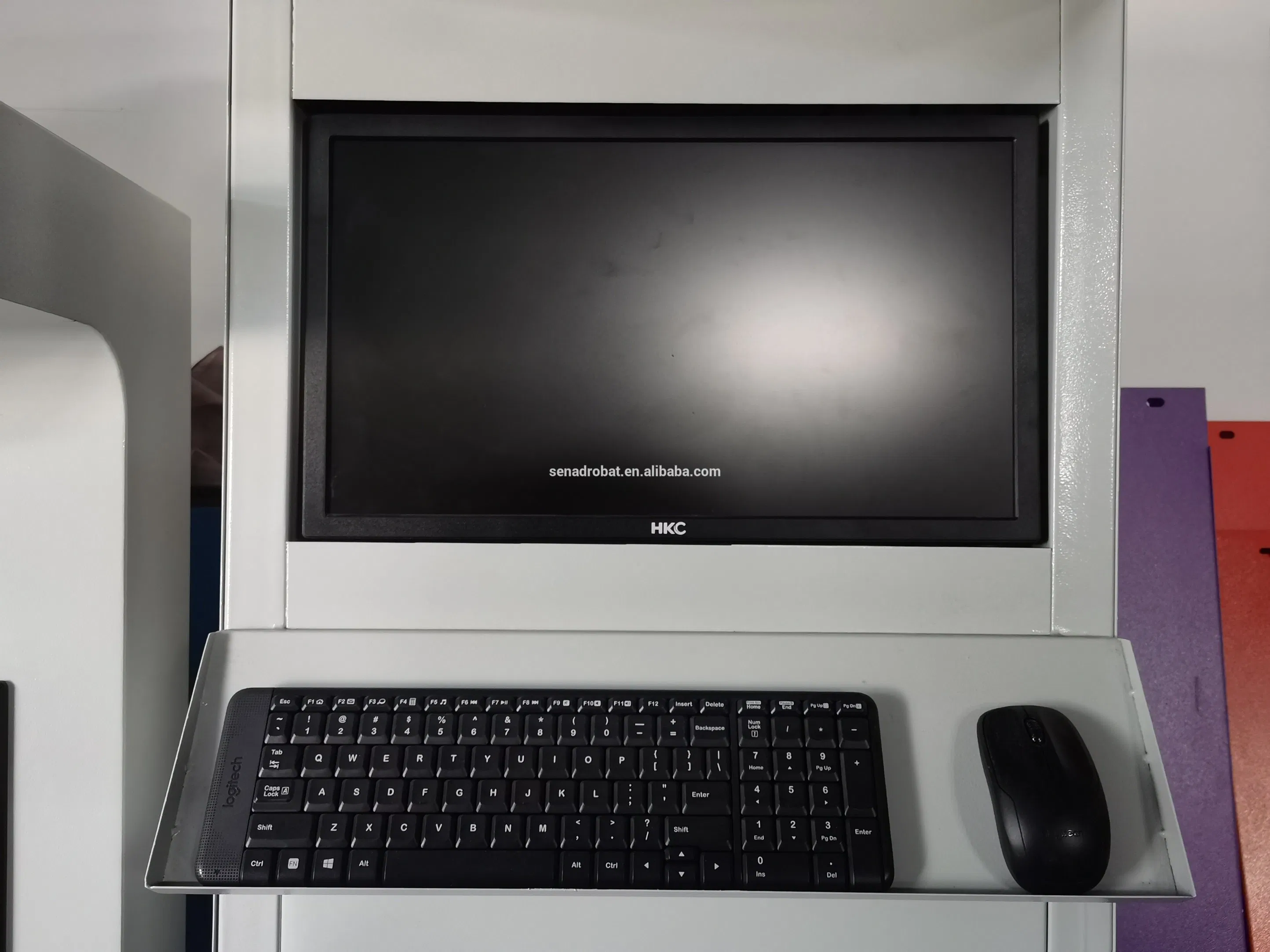

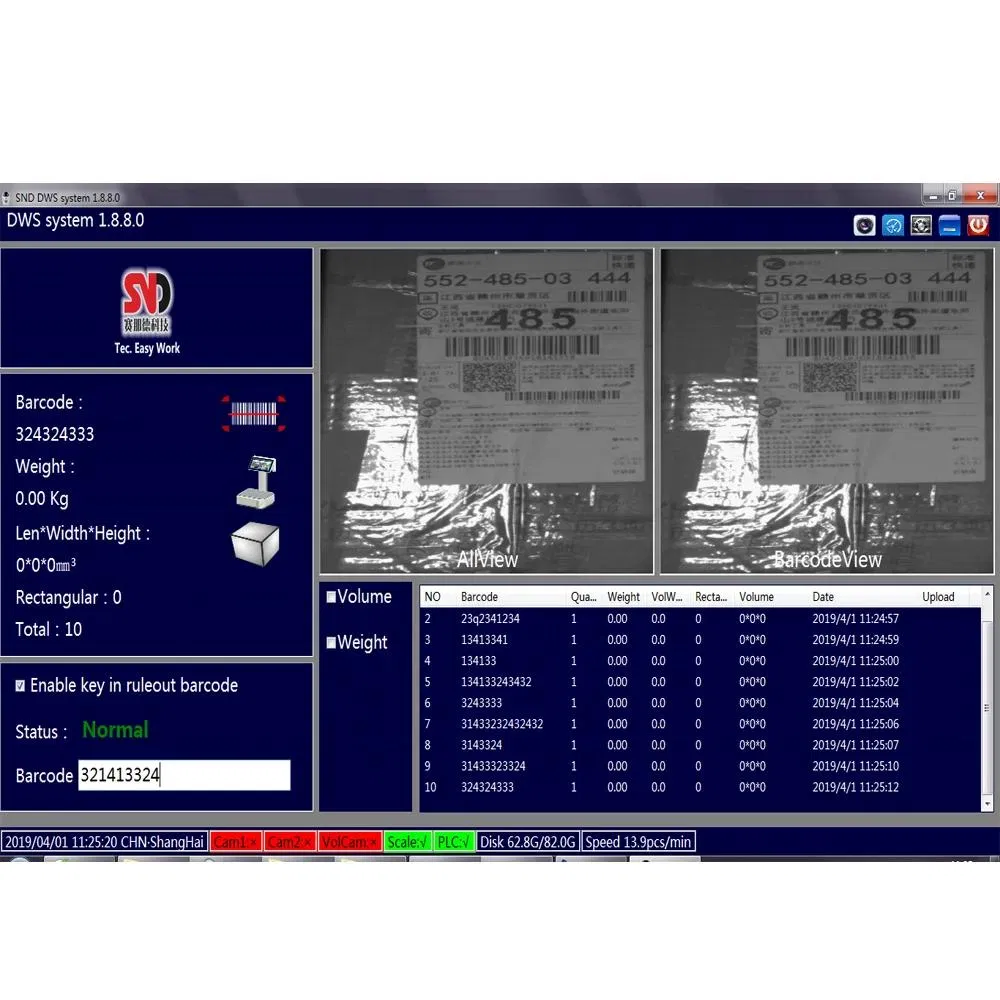

The operation interface displays the size, weight, and bar code information. The language can be customized, docking with the customer system, and automatically outputting the form information.
Suitable for: Envelopes, Soft Parcels, Big Packages, and Various boxes.

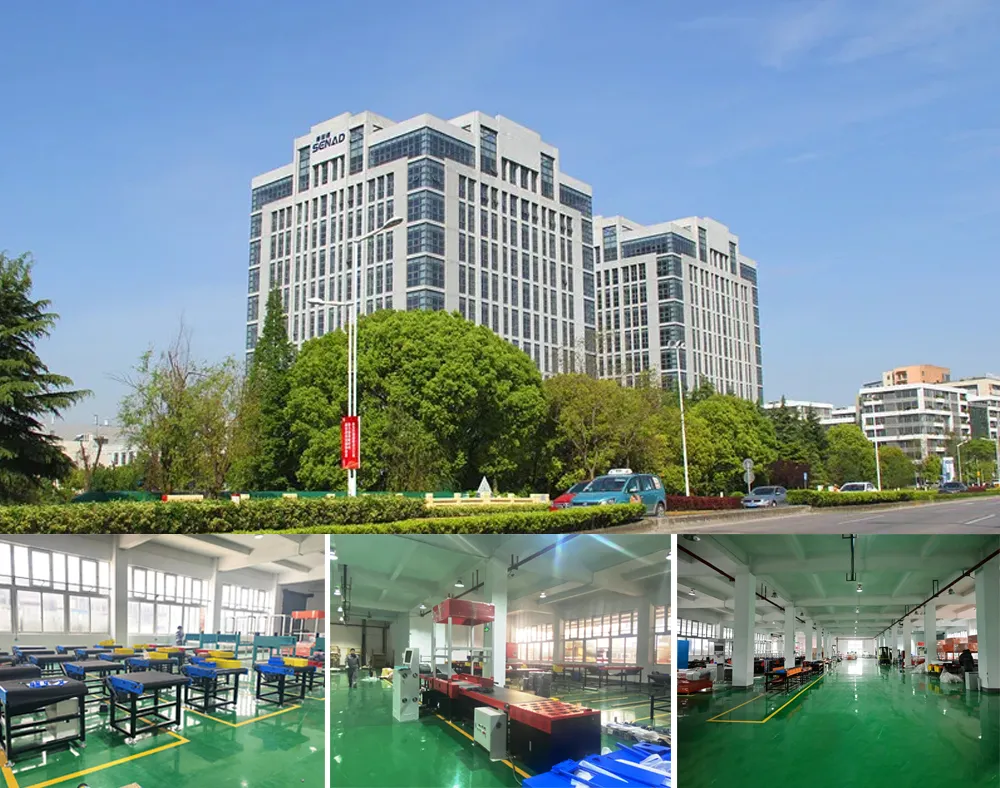

Founded in 2012, we are a national high-tech enterprise with machine vision technology as the core. Through deep learning algorithms, image processing, and pattern recognition, we provide solutions in visual positioning, tracking, and detection. In the field of smart logistics, we provide "machine generation" solutions to reduce costs and increase efficiency for enterprises, empowering the smart logistics industry worldwide.
