Cross Belt Sorting System with Dws System Dimensioning, Weighing and Barcode Reading

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Structure:Conveyor System
Material:Stainless Steel
Application:Logistic, Warehouse, Express, E-Commerce
Condition:New
Belt Width:500/650/800/1000/1200/1400mm
MOQ:1 Set
Belt Material:PVC
Weighing Range:30g~60kg
Advantage:Low Consumption High Efficiency
Load Cell:100 G
Weighing Model:Dynamic Weighing
Remote Diagnosis:Yes
Scanning Accuracy:99%
Dimensioning Accuracy:±5~15mm
Origin:China
HS Code:8479894000
Product Description

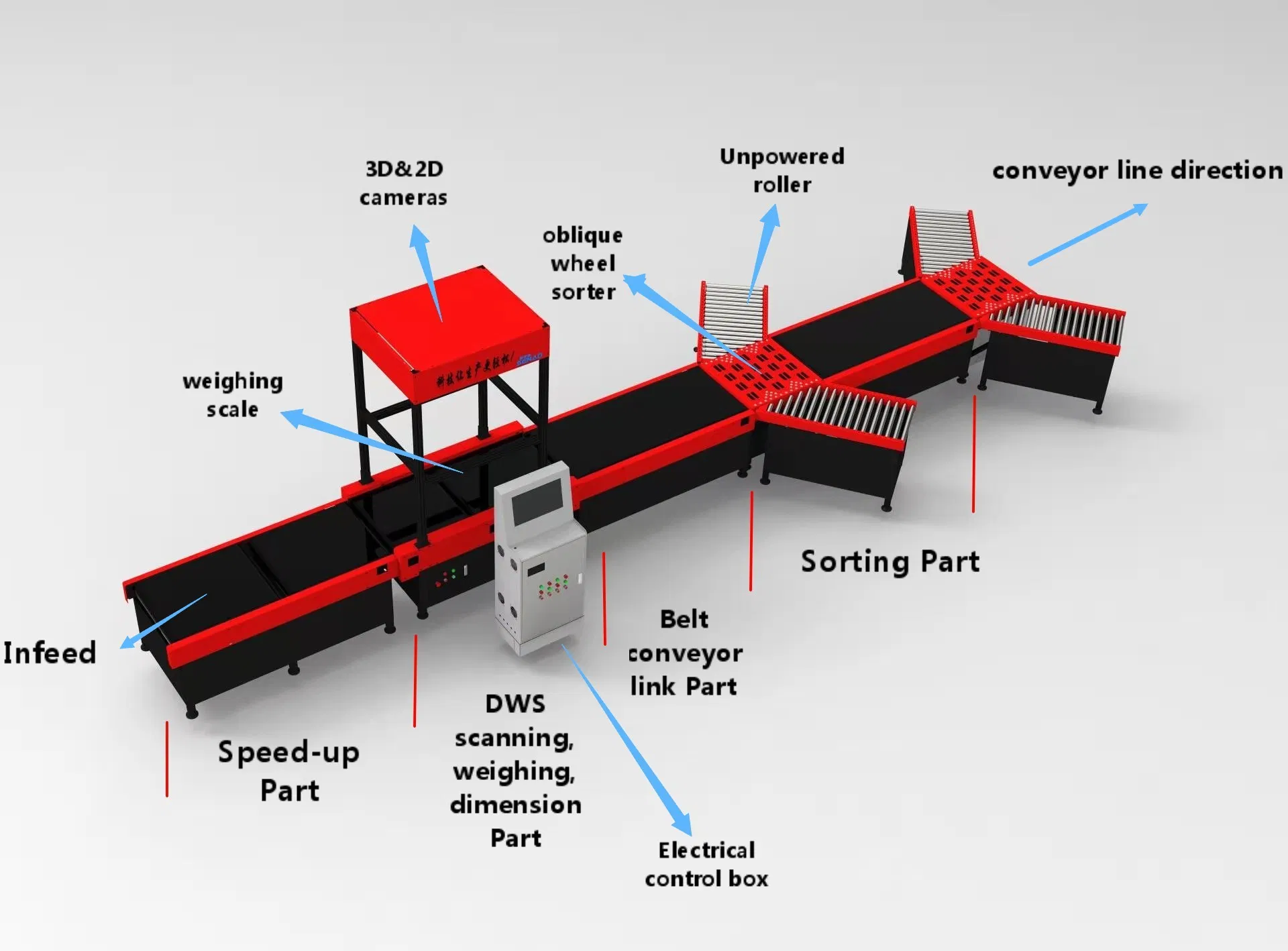

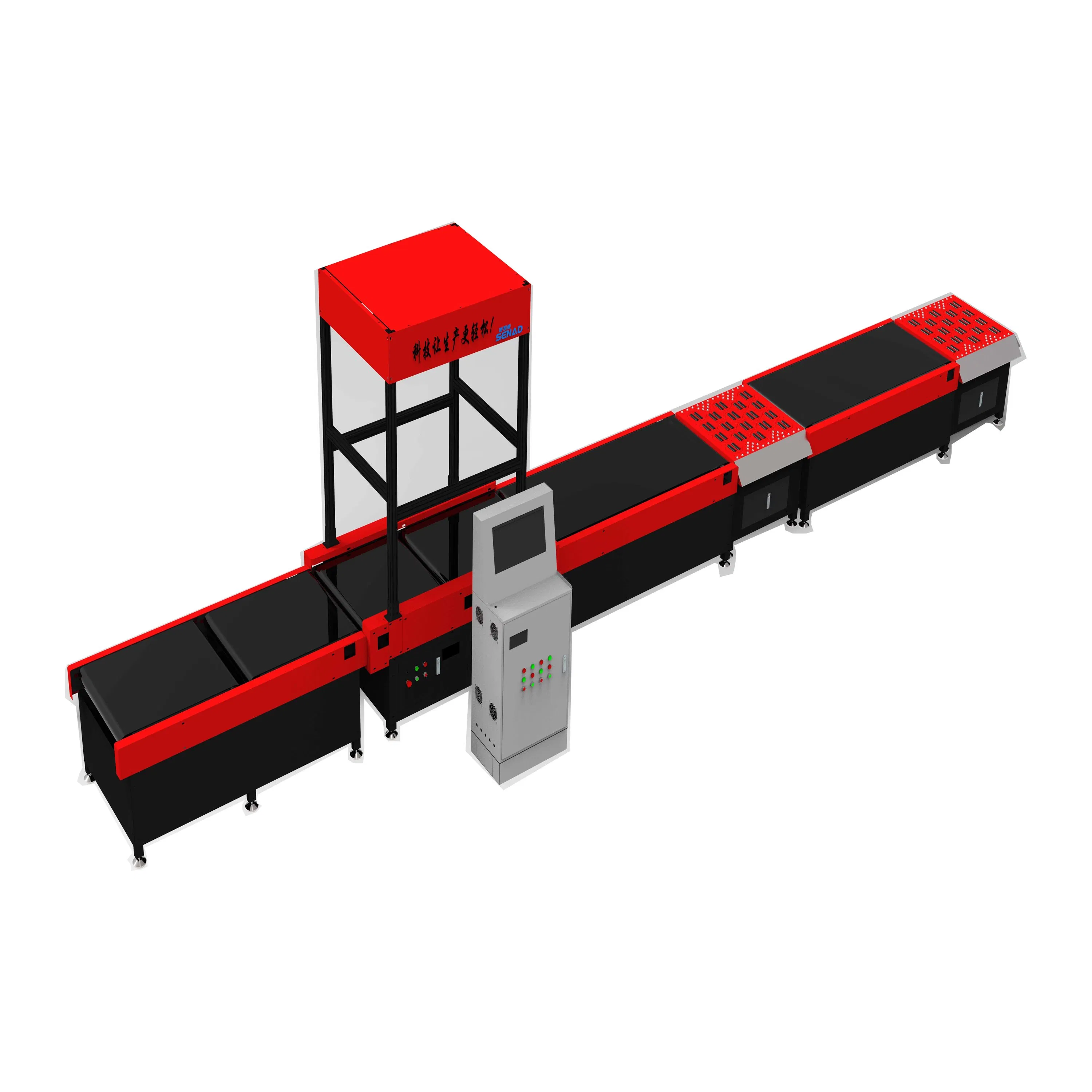

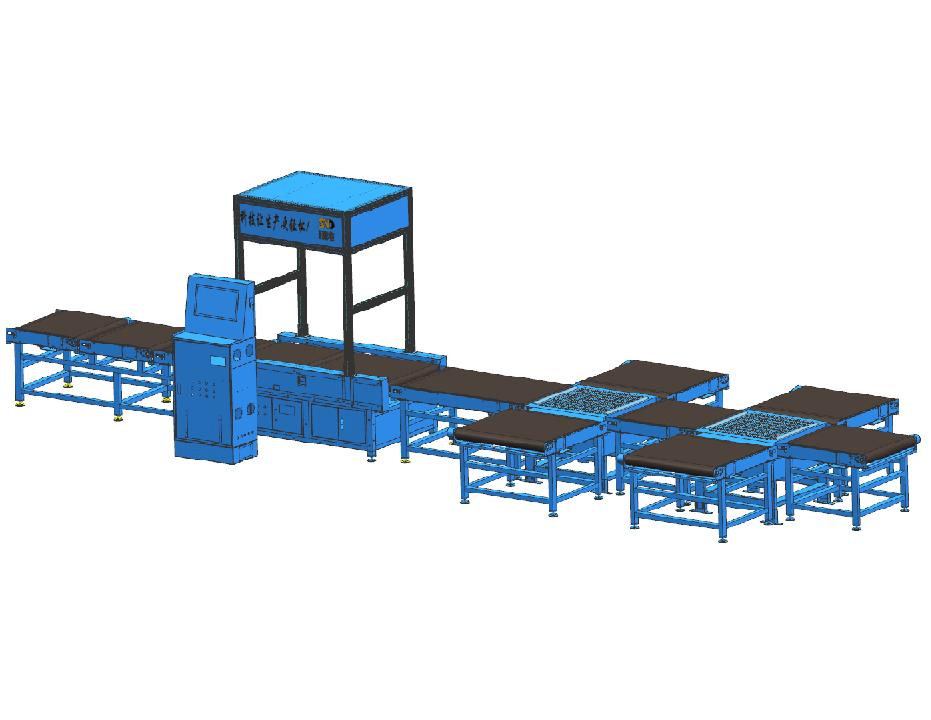

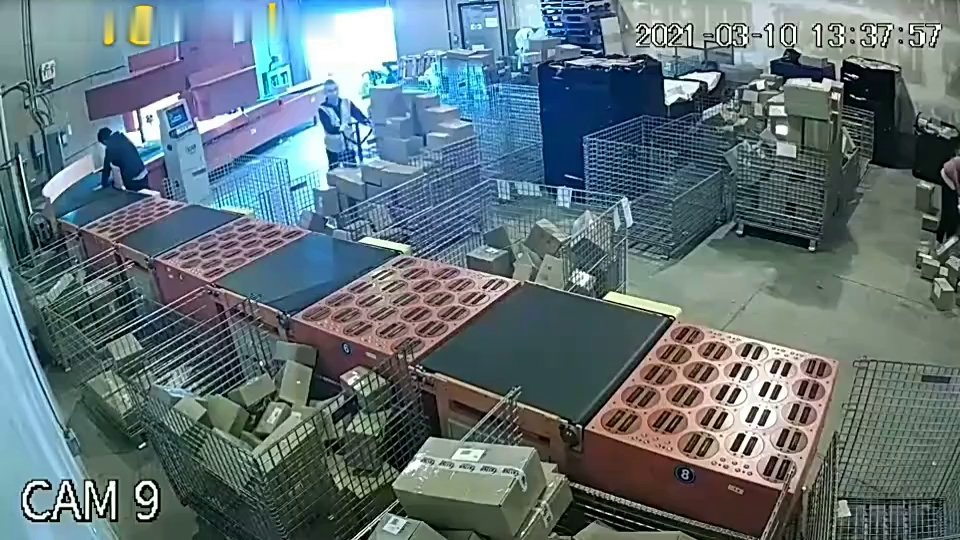

Cross Belt Sorting System

The DWS adopts the self-developed high-resolution intelligent barcode reading camera, volume measuring instrument, and dynamic weighing module, which can efficiently complete the real-time accurate collection and output of the three major information of volume, barcode and weight. The system can realize the automatic sorting of express parcels with the sorting equipment.

Technical Specifications
Parts Configuration
Industrial computerIntel I5
Display19.5 inches LCD
CameraHikvision 20 million pixel Industrial camera
Keyboard/mouseLogitech
Load cell100kg
BracketCustomized
Index Parameter
Weighing range30g~60kg
Dimensioning range50*50*5~800*800*800mm
Capacity2500~3600pcs/hour
Recognition rate99%
Dimensioning accuracy±5~15mm
Weighing accuracy±10g
Scanning accuracy99%
Software InterfaceHTTP, TCP, 485
Weighing modeDynamic weighing
Remote diagnosisYes
Main Features

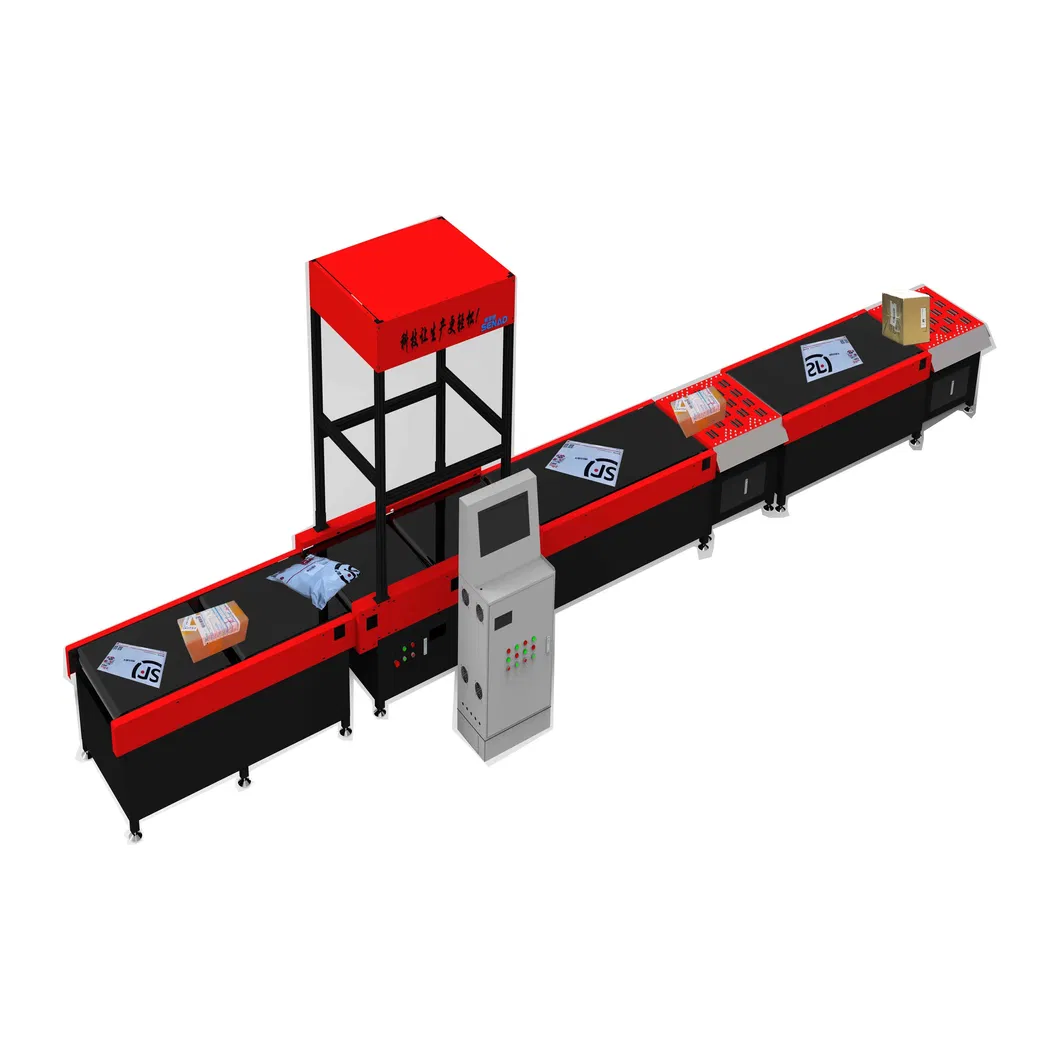

Features
📊
Collect data automatically with accuracy
Data are collected in one pass without operator's intervention, ensuring its accuracy.
🔔
Exception alarm
The equipment will alarm when packages' weight and dimension are beyond limit or the code cannot be read.
⚙️
Highly flexible with expandability
The equipment can be equipped with cameras with different resolutions and connected to telescopic conveyors.
Product Details
Wheel sorter DWS Equipment Conveyor belt
Wheel sorter
Rolling wheel sorter can be automatically sorted into 3 directions.

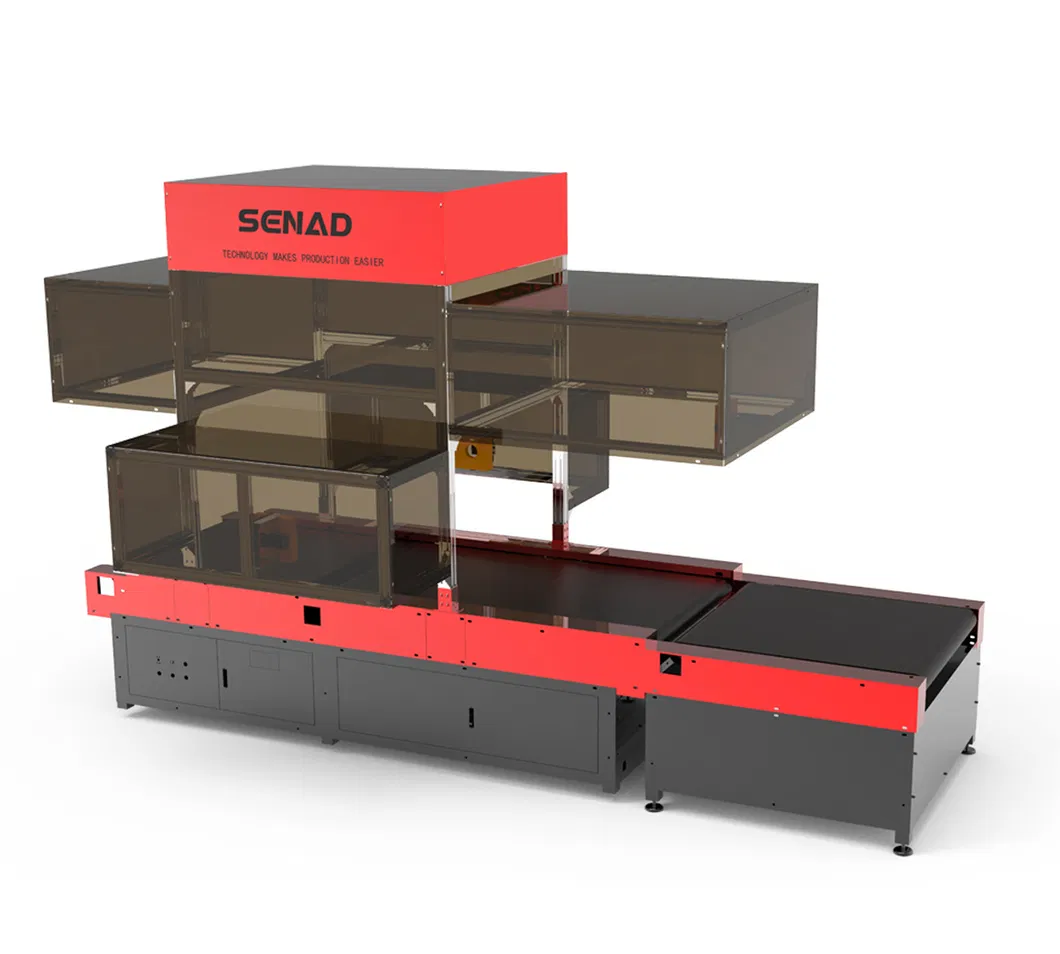

DWS Equipment
Automatically scan codes, weigh, and measure volume with cloud synchronization.

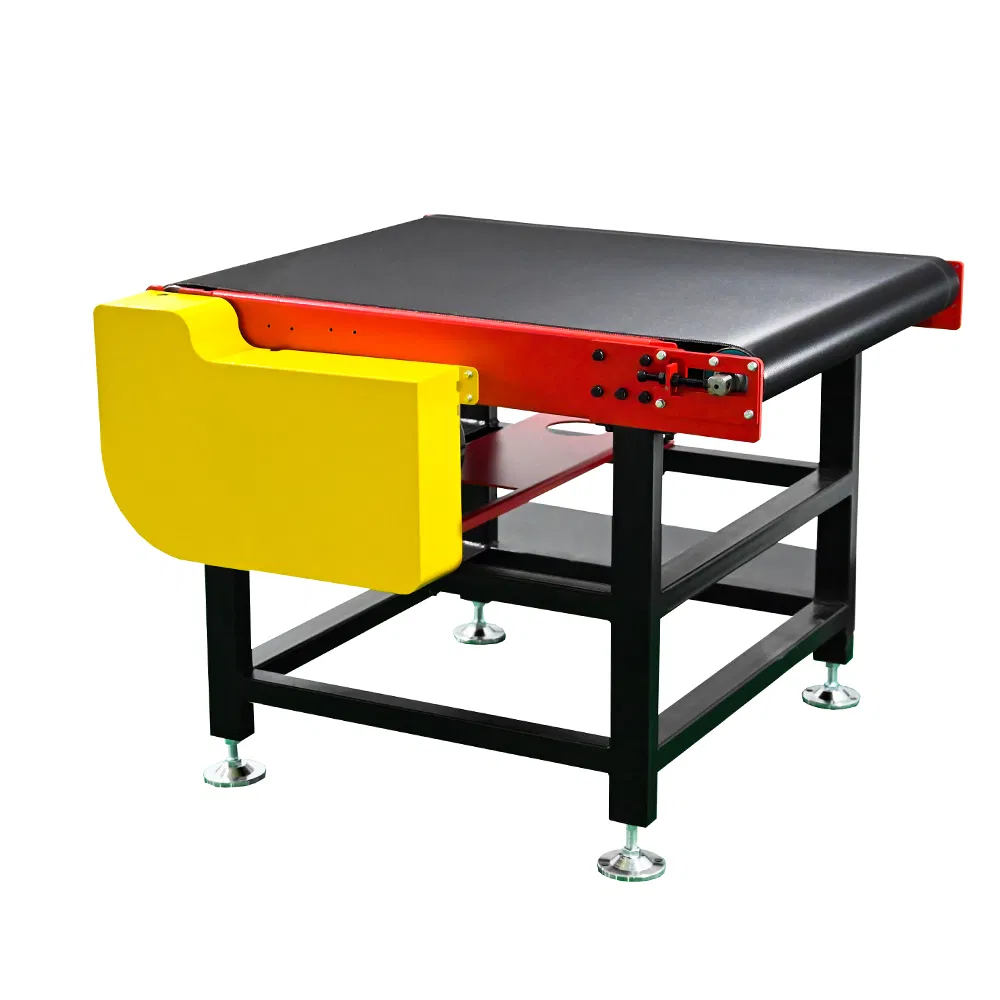

Conveyor belt
Length and width can be customized according to site requirements.
Applications
Applications
Envelopes Soft Parcels Big Packages Various Boxes
Company Profile

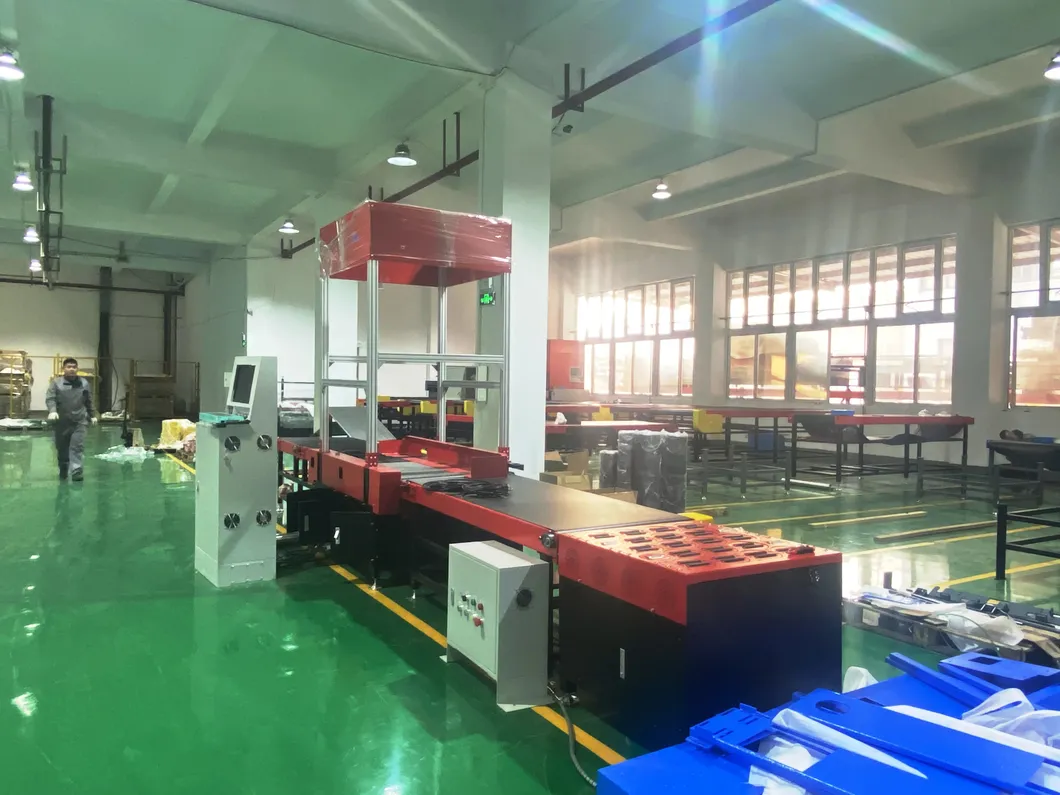

Office Workshop Facility

Founded in 2012, this high-tech enterprise is concentrated on the research, development, and production of high-end warehouse automation equipment. We provide standard and customizable equipment for high-speed barcode scanning, weighing, volume measurement, conveying, and sorting integrated systems. Our core technology utilizes machine vision deep learning algorithms and robot motion control to replace manual labor with efficient robotic systems. Our mission is to make work easier and more efficient for our partners through innovative practical applications and professional consulting services.

Certifications & Partners
Certifications Partners
Frequently Asked Questions
Are you a trade company or a manufacturing company?
We are a manufacturing company specializing in warehouse automation solutions.
What are your main advantages?
We are a national high-tech enterprise with our own software development team, providing complete, fast, and efficient R&D capabilities. We support both OEM and ODM services.
What kind of pre-sales services do you offer?
We provide customized solutions, including professional planning, design, and one-to-one consulting services to meet specific operational needs.
How is the after-sales support structured?
We offer 24/7 online service, remote installation guidance, and seamless docking with customer software systems.
How long is the product warranty period?
The equipment comes with a one-year warranty, excluding consumable spare parts.
Can the equipment color and dimensions be customized?
Yes, we support full customization for device color, as well as length and width adjustments based on your actual site requirements.
