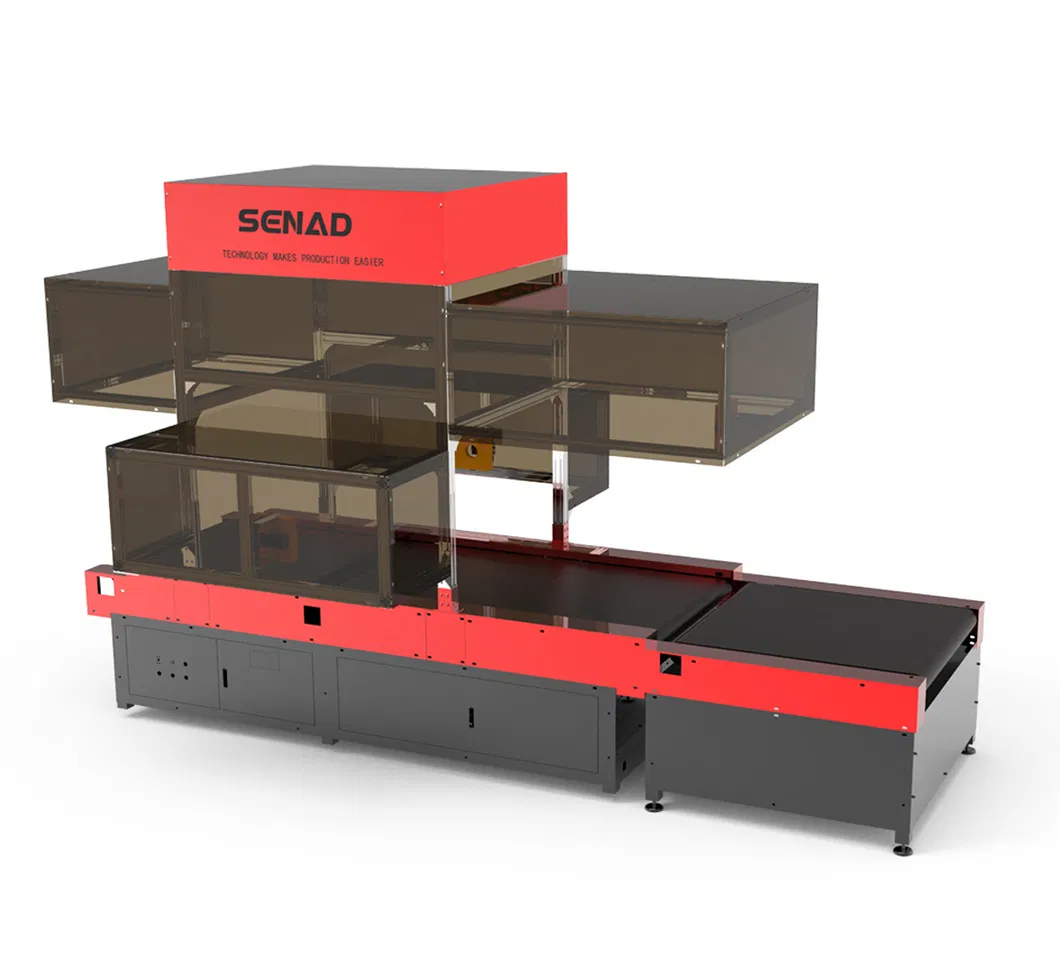

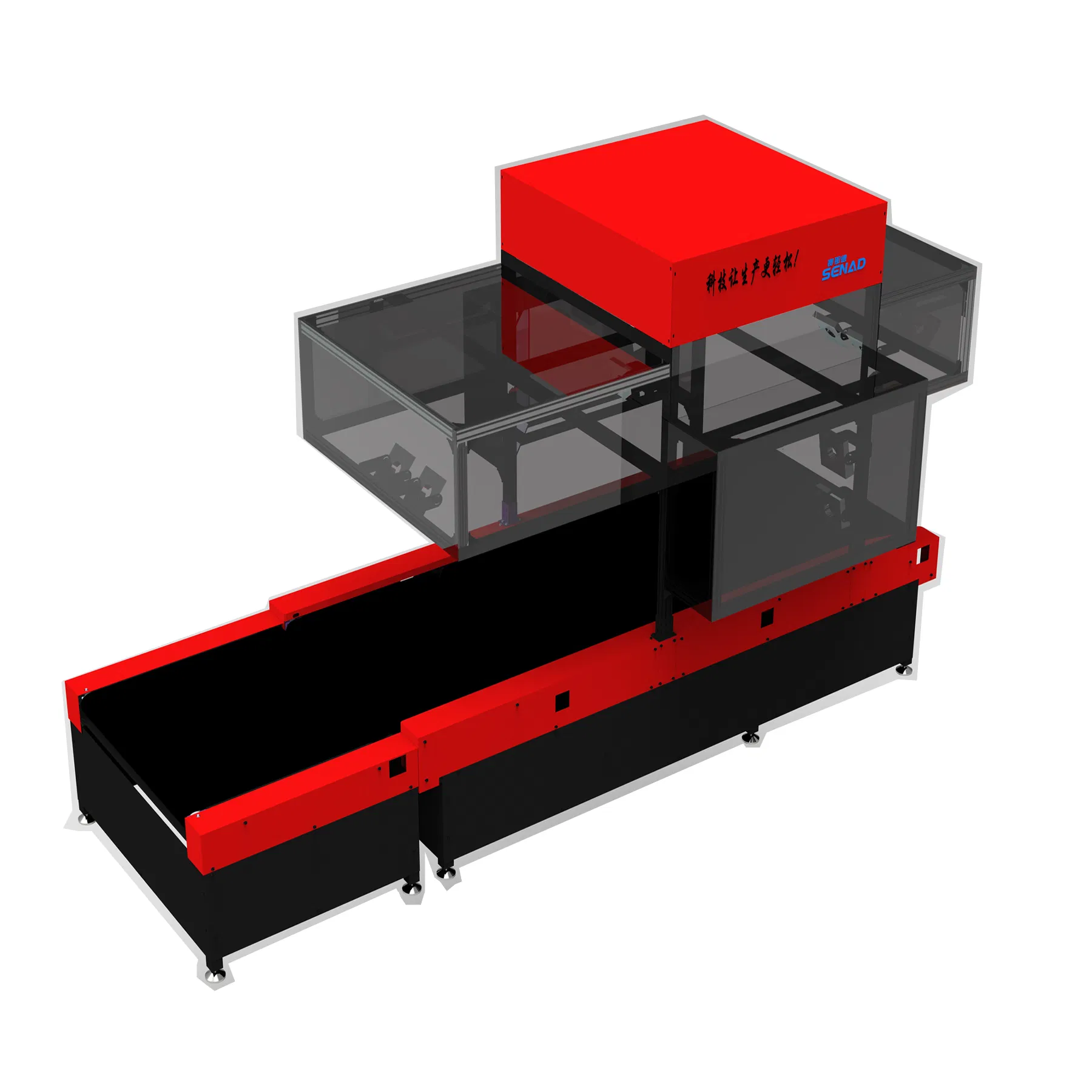

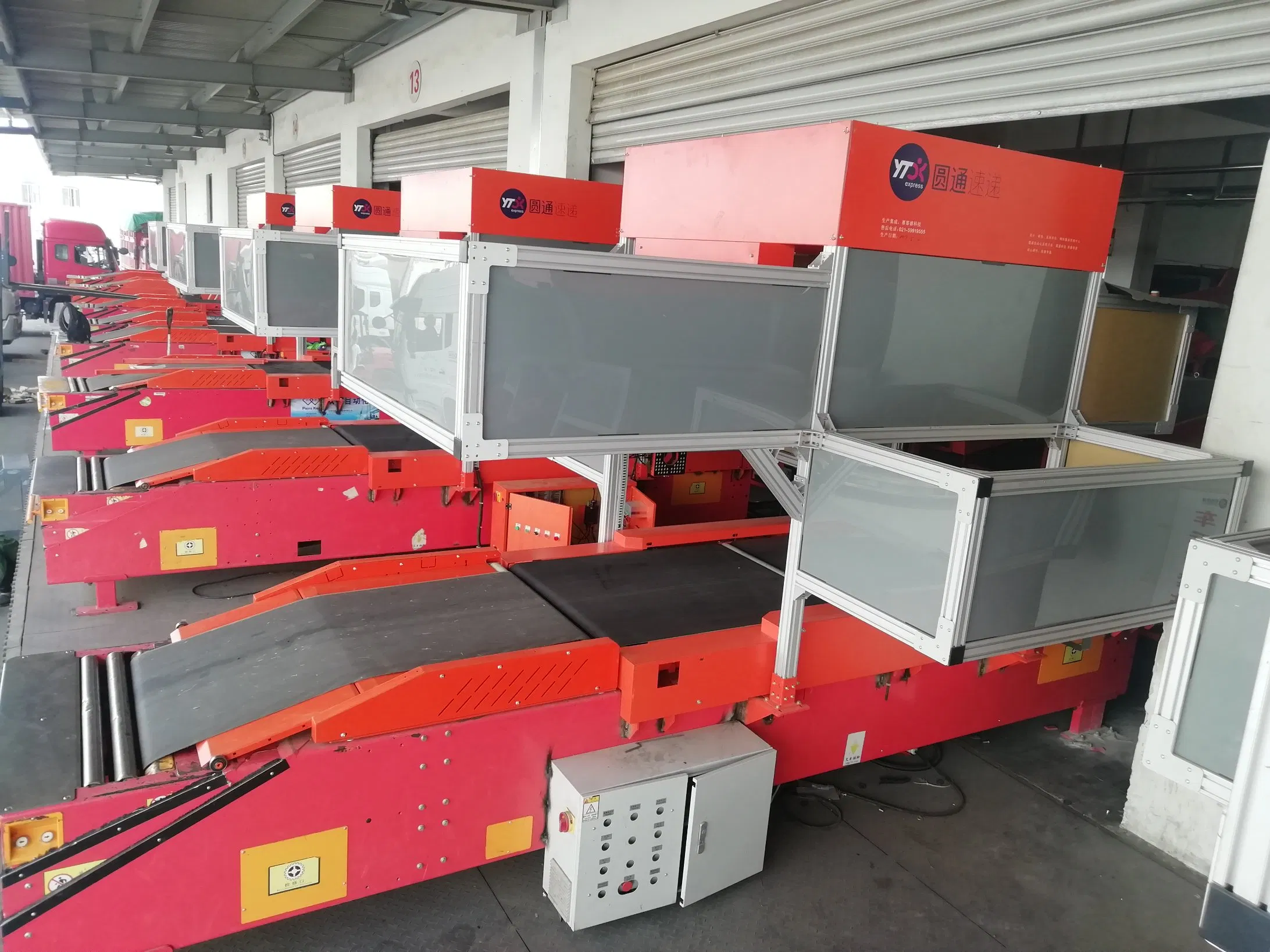

Barcode scanning weighing dimension measuring machine with extendable belt conveyor for high efficiency warehousing. The telescopic machine series is an integration solution to save space. It integrates a dynamic DWS system, which allows the system to capture package information in a conveying line, and a flexible conveying system which controls the belt conveyor's telescopic mechanisms at flexible lengths. This equipment can realize automatic truck loading & unloading, weighing, high precision dynamic code reading, volume measurement information integration, and parcel photoing for tracking references.

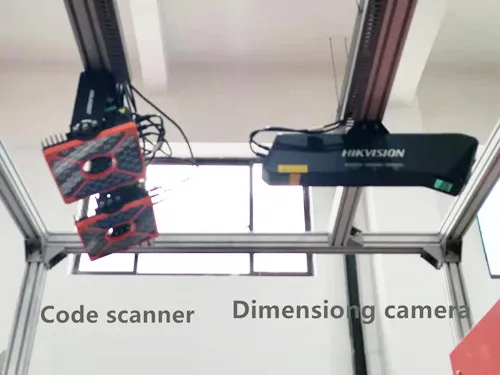

The collected information is objective and accurate, and can be uploaded to warehouse management systems (WMS) as a shipping fee pricing basis. Featured by its five barcode reading camera system and integration with telescopic belt conveyors, it offers high efficiency and customized solutions.
| Item | Parameters |
|---|---|
| Main functions | 1D/2D code scanning(Five-side scanning); weighting & volume measurement |

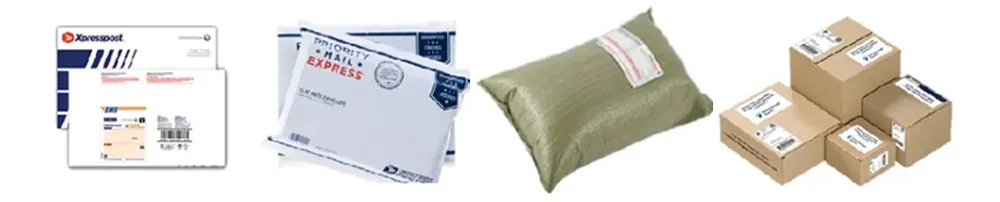

| Package type | paper box; soft package; nylon bag; plastic bag; hard wooden box,.etc. |
| Scanning size | Min. 50*50*20mm ---- Max. 800*800*800mm(L*W*H) |
| Fix Capability | 2600--3600 Ps/hour |
| Code identify accuracy | 99.9% |
| Weighing range | 0.1~60kg |

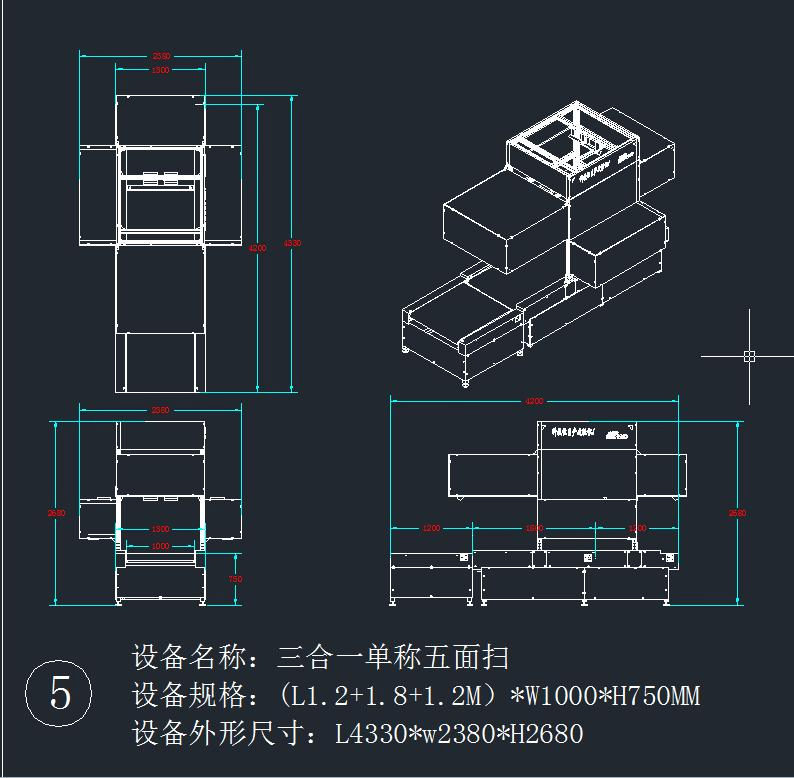

| Equipment size | 1660*1100*2600mm (L*W*H) |
| Support system | Windows 7/10 or above; 32/64 bits |
| Software interface | HTTP; TCP; 485 |

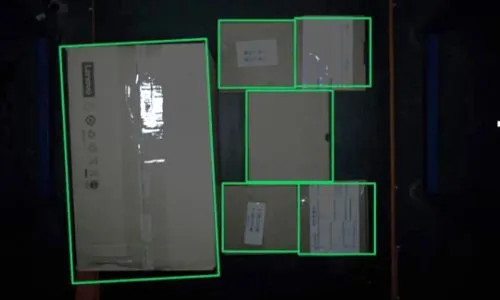

Multiple packages pass through at the same time, and the information of each package is accurately scanned and identified.
Integrated components feature modular, standardized construction for quicker assembly. Simple, flexible placement of diverts anywhere along the sorter.
Accurately identify item information with an accuracy rate reaching up to 99.99%.
Displays size, weight, and barcode information. Language can be customized and data automatically outputs to customer systems.

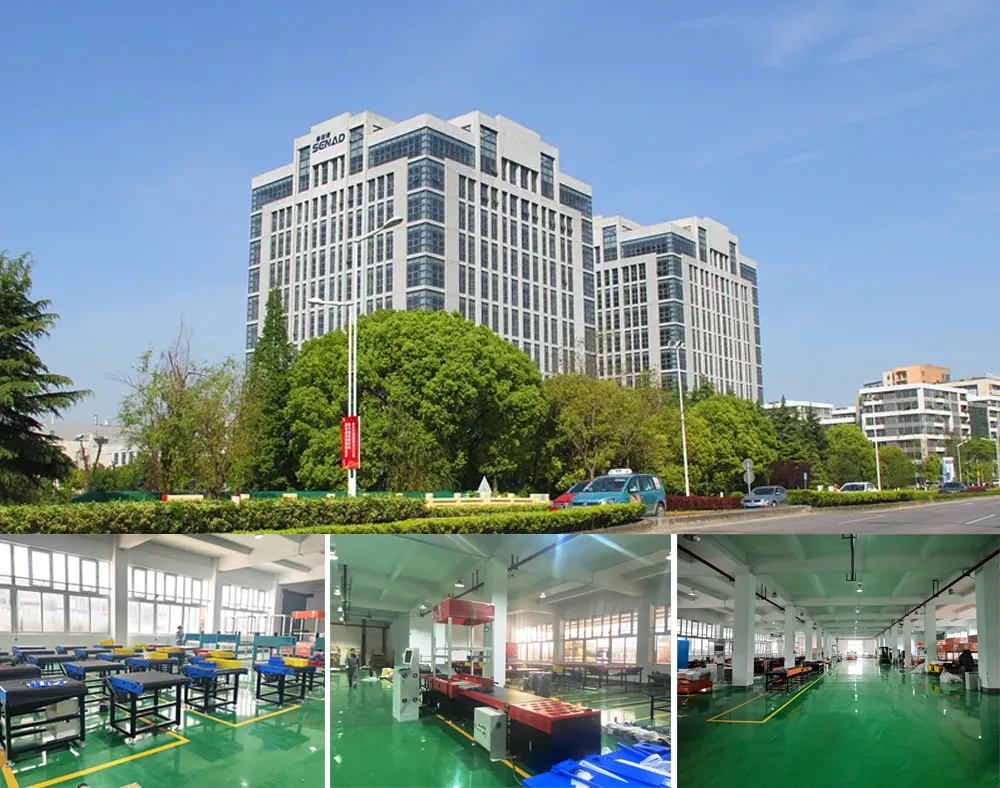

Founded in 2012, we are a high-tech enterprise concentrated on research, development, and production of high-end warehouse automation equipment. Our mission is to make work easier and more efficient for our partners by replacing manual labor with intelligent robot systems using deep learning algorithms and machine vision.
