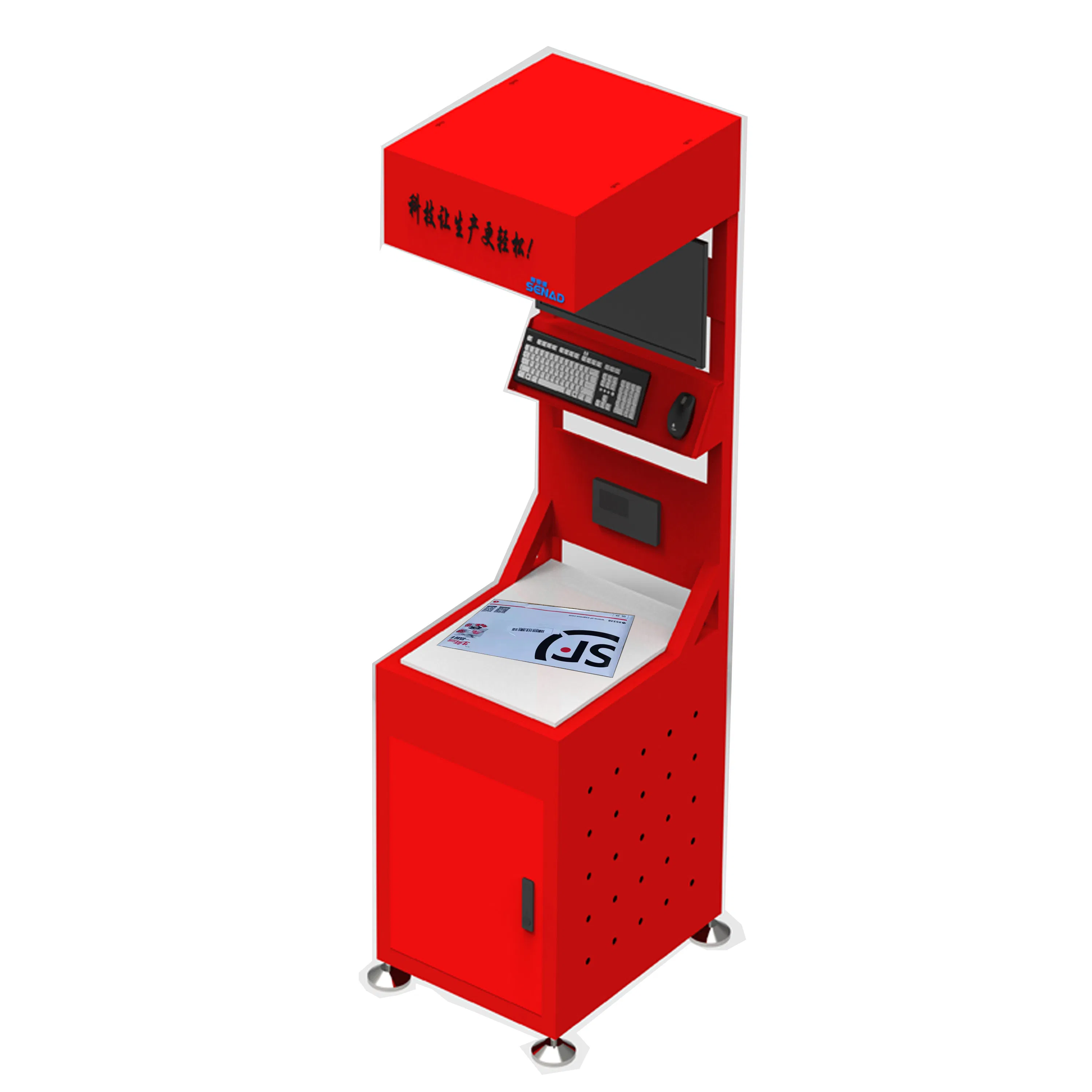

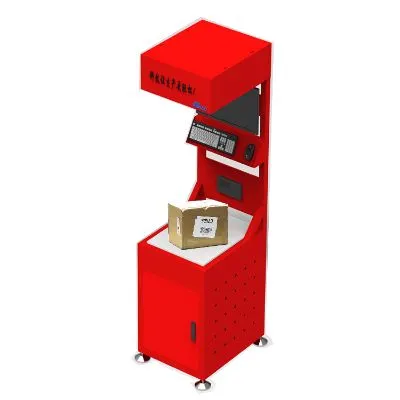

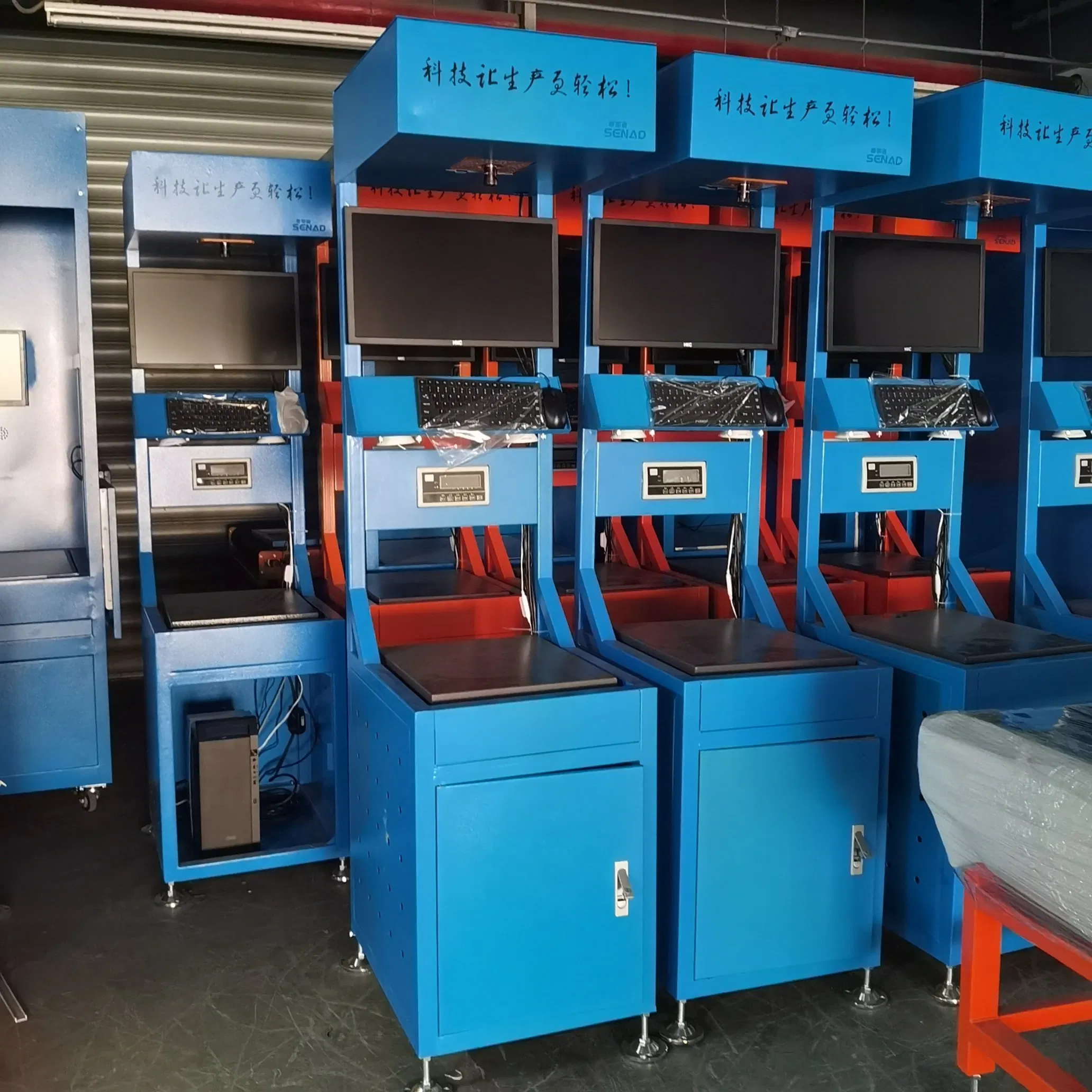

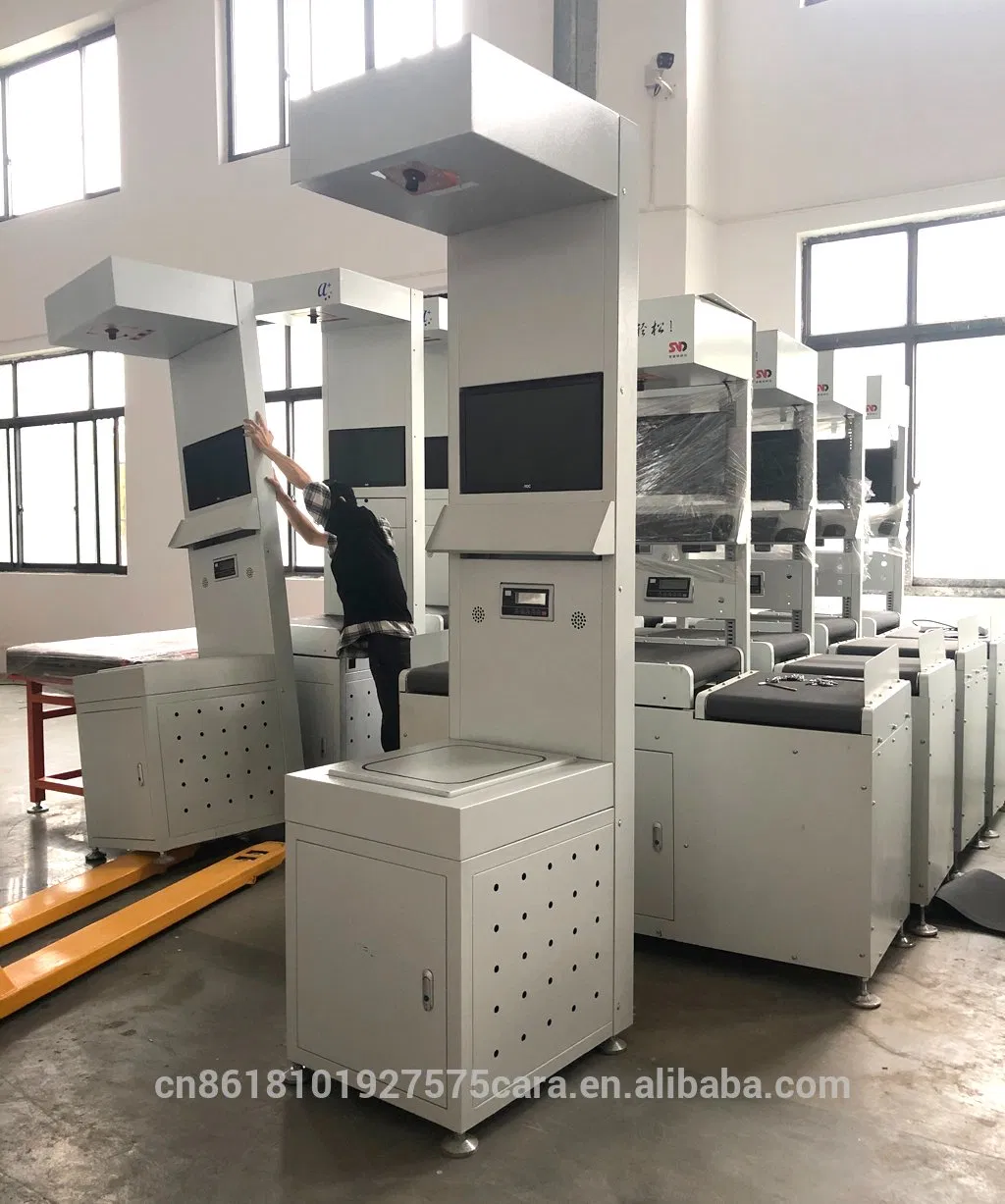

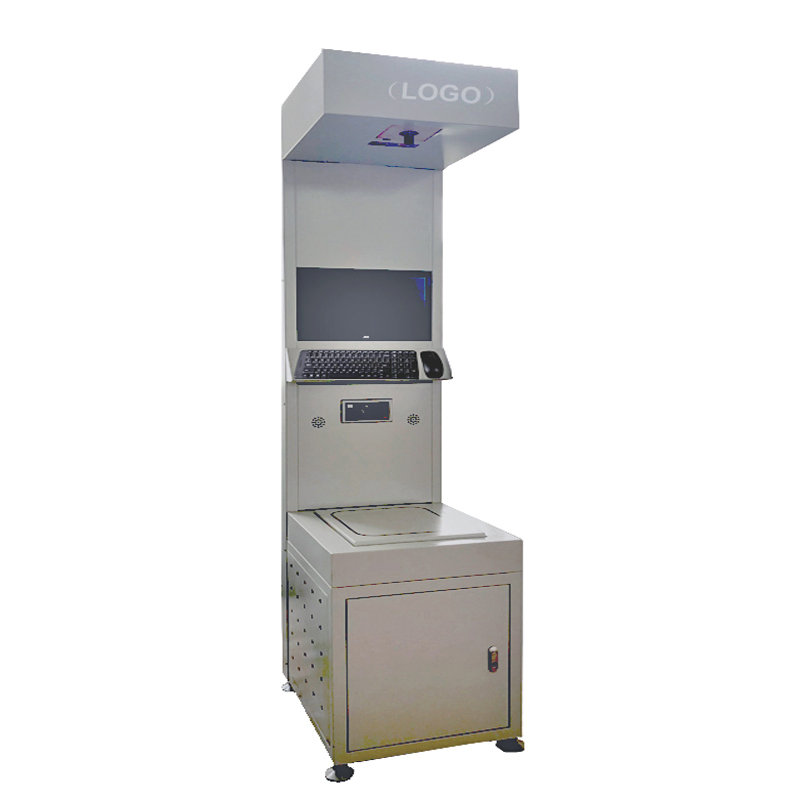

Small parcel DWS is mainly used to measure dimension weight and scan barcode of parcels in logistics, e-commerce, and other relevant industries. When a package is put on it manually, the data of weight, dimension, and code will be collected, saved to the local disk, and uploaded to the management system. These data can also be exported as Excel files. Parcels can be sorted into two different destinations.
| Parts | Configuration |
|---|---|
| Industrial Computer | Intel I5 |
| Display | 19.5 inches LCD |
| Camera | 20 Million Pixel Industrial Camera |
| Keyboard/Mouse | Branded Peripherals |
| Load Cell | 100kg Capacity |
| Index | Parameter |
|---|---|
| Weighing Range | 30g ~ 20kg |
| Dimensioning Range | 50*50*50 ~ 500*500*500mm |
| Capacity | 1000 ~ 1500 pcs/hour |
| Recognition Rate | 99% |
| Dimensioning Accuracy | ±5mm |
| Weighing Accuracy | ±20g |
| Software Interface | HTTP, TCP, 485 |
| Remote Diagnosis | Supported |

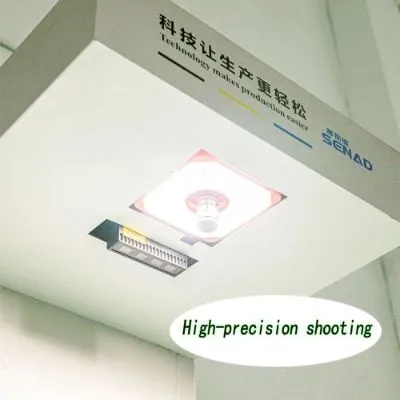

Industrial high-precision shooting cameras can accurately scan and record item information, realize storage records, and significantly improve recognition capabilities.

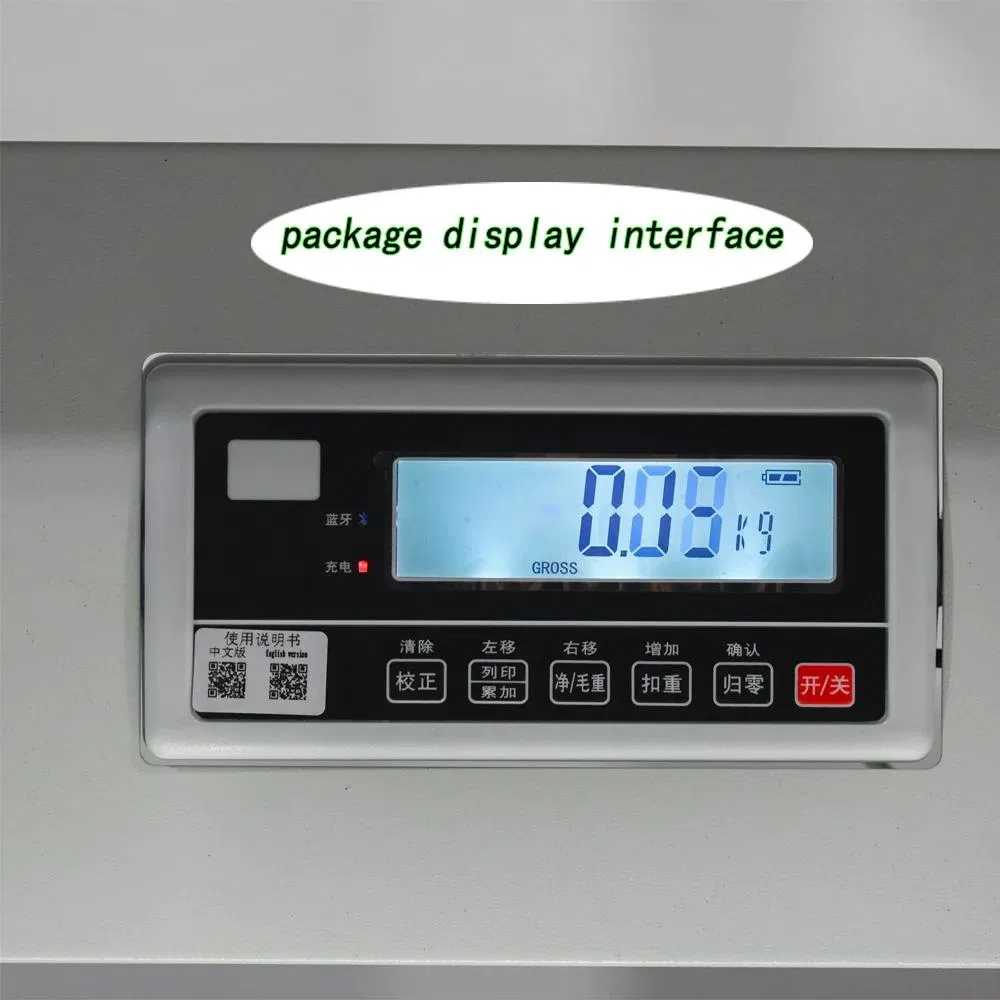

Clearly displays detailed information of each package, including weight and size, enabling automatic sorting operations to improve workflow efficiency.

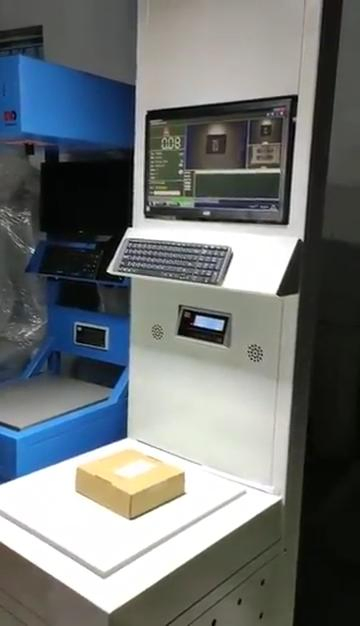

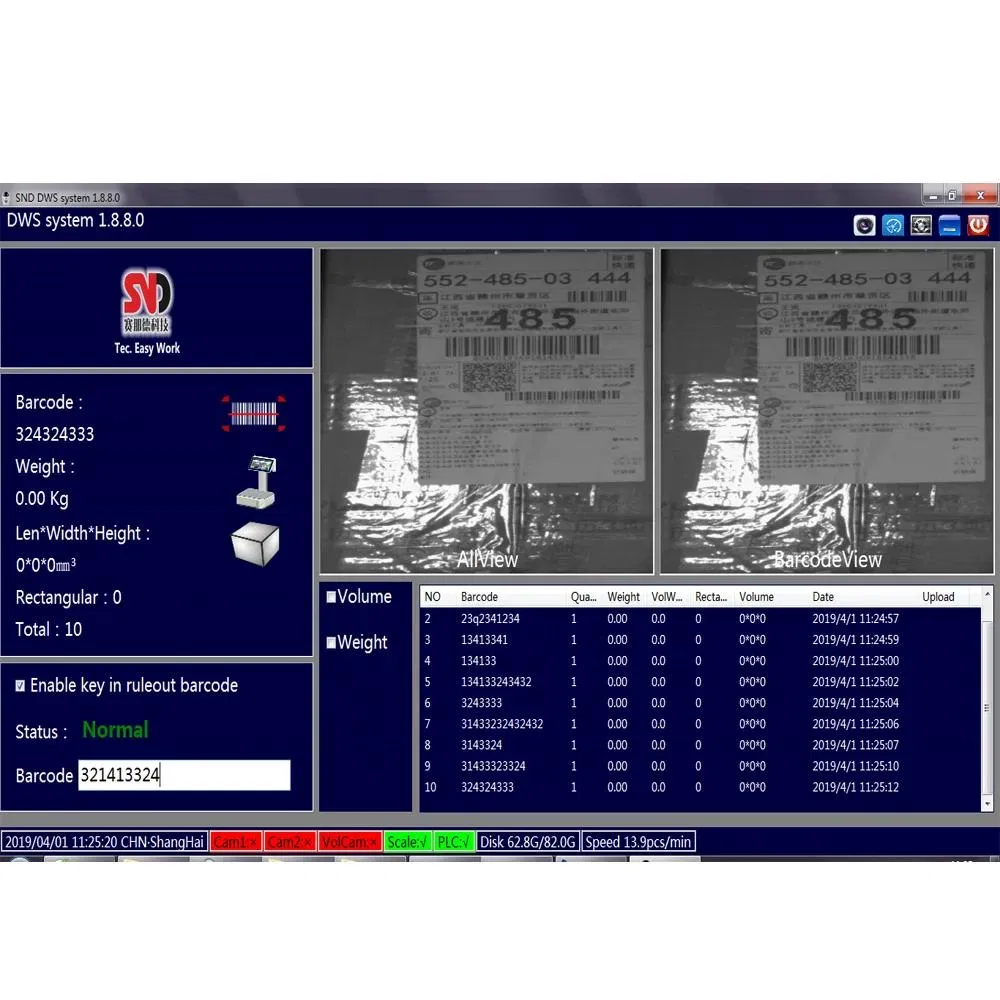

The operation interface displays barcode information and dimensions. Language can be customized with full docking capabilities to customer systems for automatic data output.

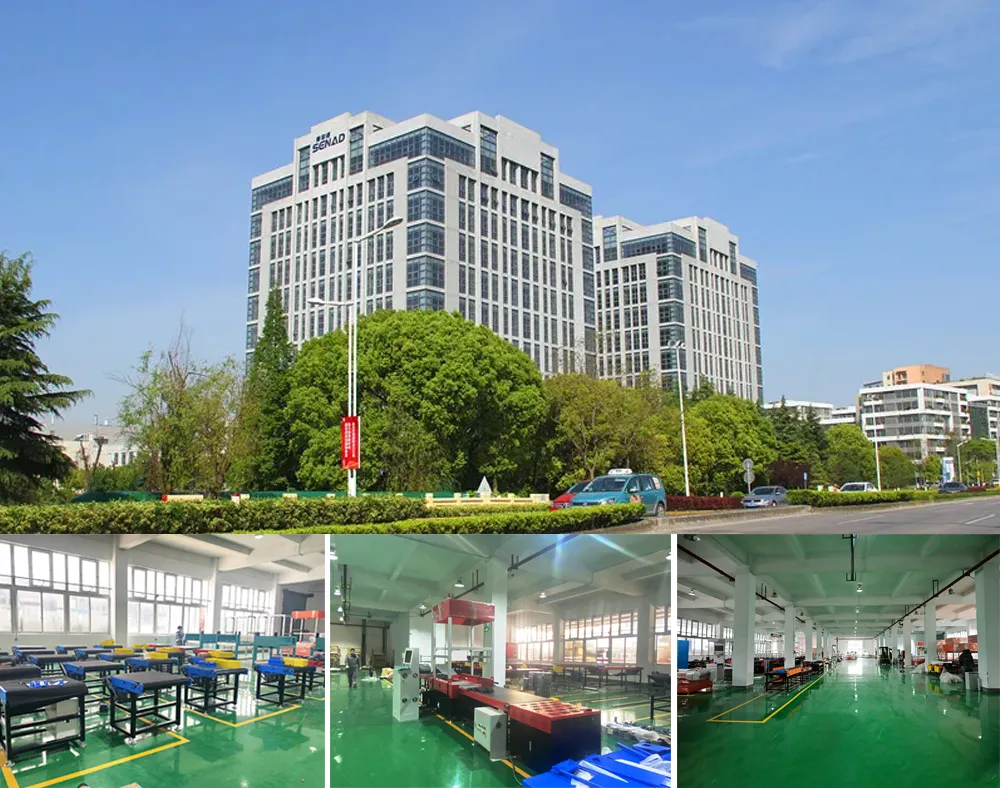

Founded in 2012, we are a national high-tech enterprise with machine vision technology as the core. Through deep learning algorithms, image processing, and pattern recognition, we provide smart logistics solutions. Our technical expertise includes industrial visual positioning, tracking, and detection, helping enterprises reduce costs and increase efficiency through "machine generation." We continue to innovate in smart storage and manufacturing to share Chinese scientific achievements with the world.
