| Structure | Conveyor System | Application | Warehouse |
|---|---|---|---|
| Condition | New | Temperature | -5~45℃ |
| Weighing Range | 0.1~60kg | Weighing Accuracy | ±20g |
| Rating Power | ≤3.5kw | Fix Capability | 2600--3600 PS/Hour |
| Code Identify Accuracy | 99.9% | Working Voltage | AC220V/380V~50Hz |
| Loading Mode | Manual/Automatic | Origin | China |
| Specification | 1660*1100*2600mm | Production Capacity | 20 Sets/Month |

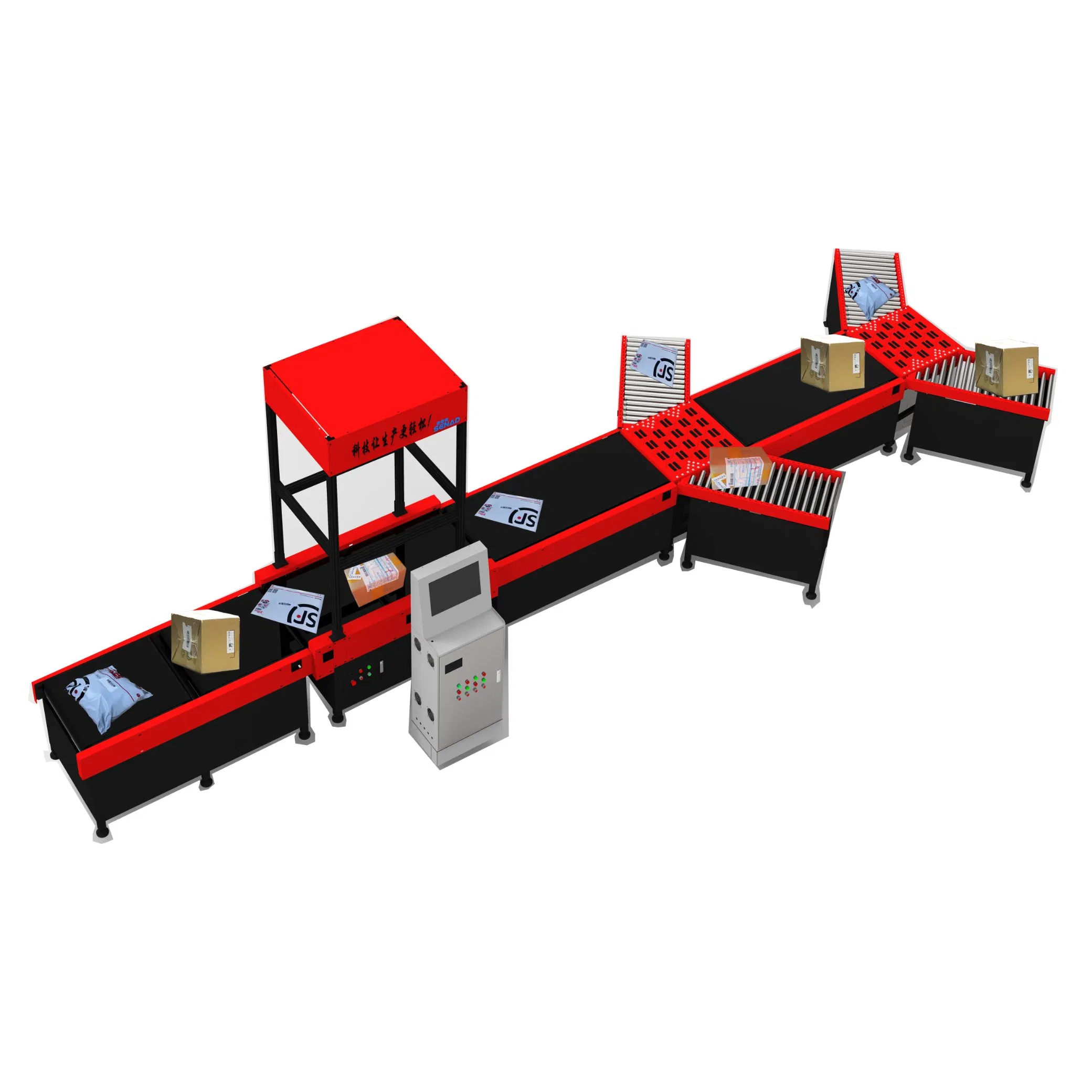

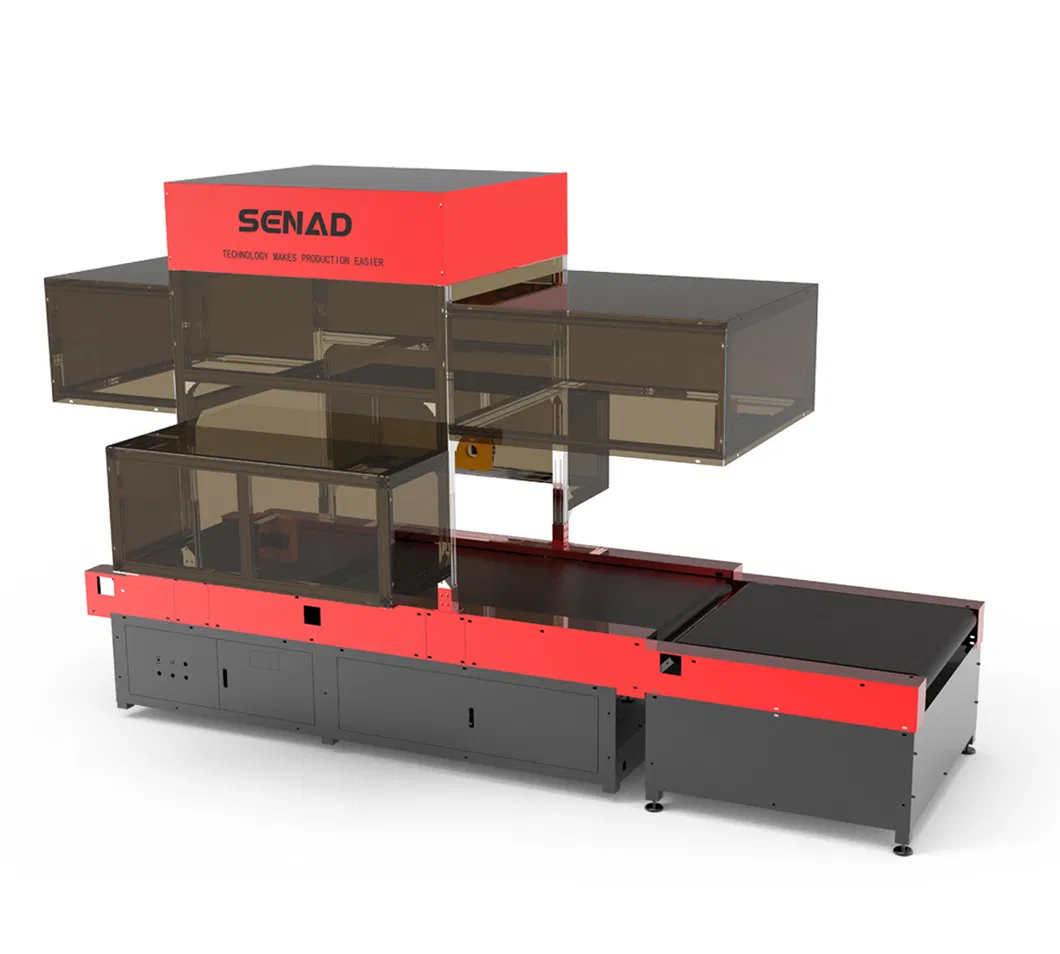

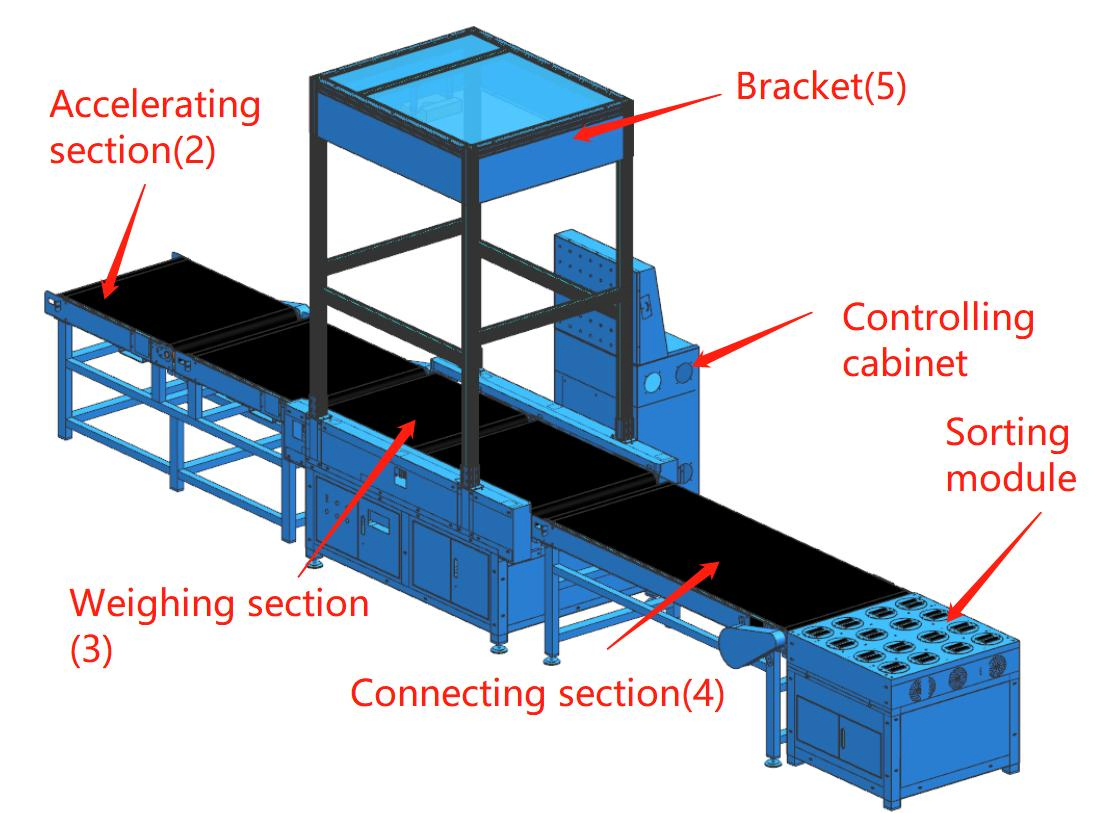

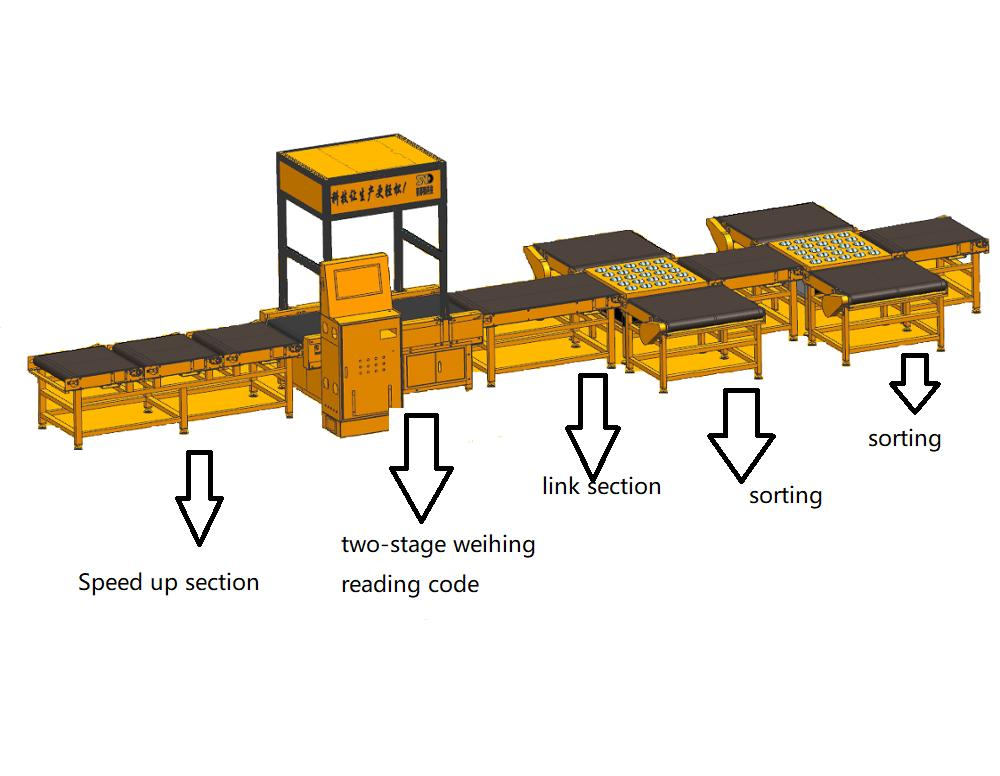

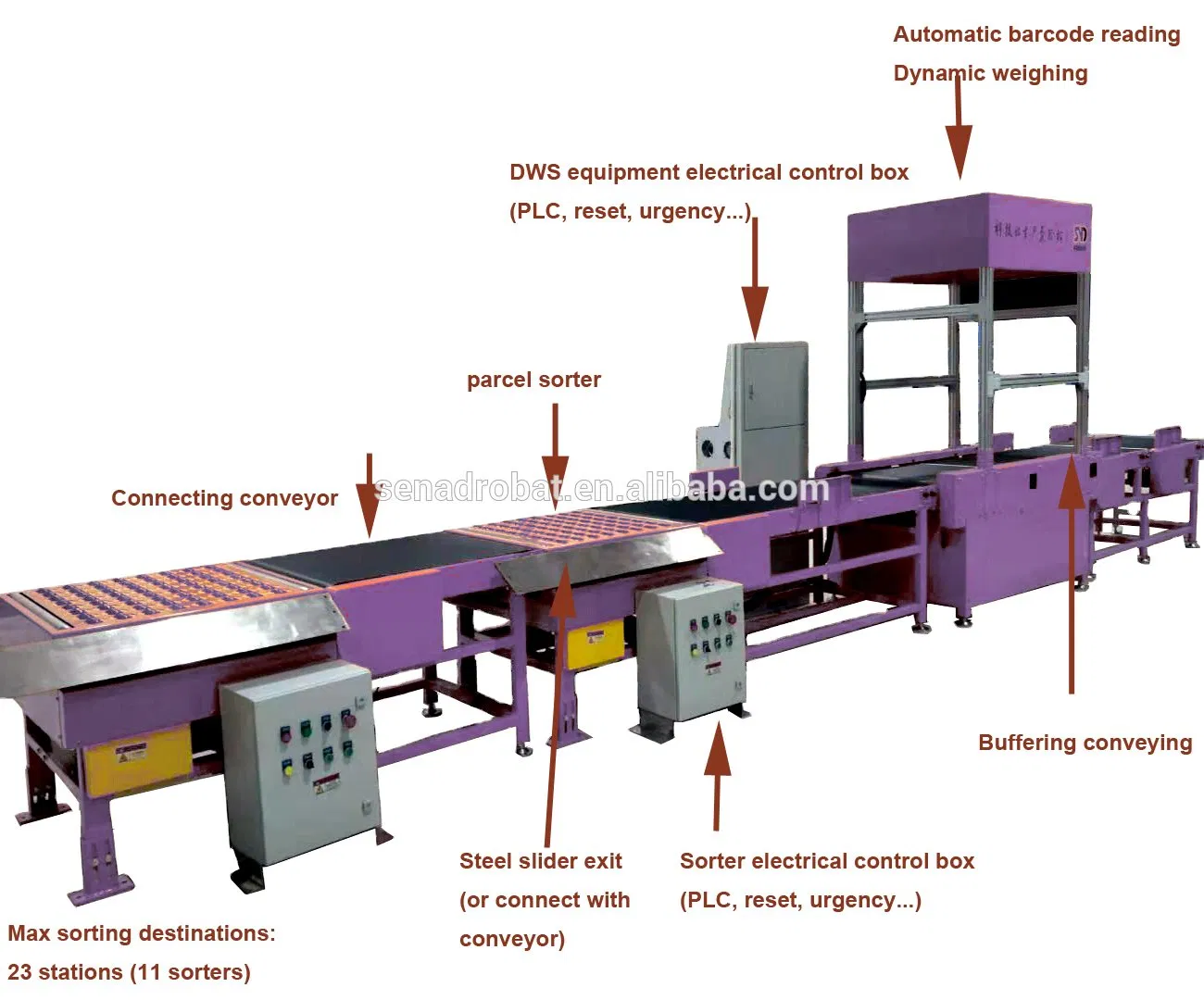

Barcode scanning weighing dimension measuring machine with extendable belt conveyor for high efficiency warehousing. The telescopic machine series is an integration solution to save space. It integrates two major monitor systems: a dynamic DWS system to capture package information and a flexible conveying system to control belt stretch at flexible lengths.
This equipment realizes automatic truck loading & unloading, weighing, high precision dynamic code reading, volume measurement information integration, and parcel photoing for tracking. Data can be uploaded to warehouse management systems (WMS) or E-commerce platforms as a shipping fee pricing basis. Features include a five-barcode reading camera system and customized solutions according to user needs.
| Item | Parameters |
|---|---|
| Main functions | 1D/2D code scanning (Five-side); weighing & volume measurement |

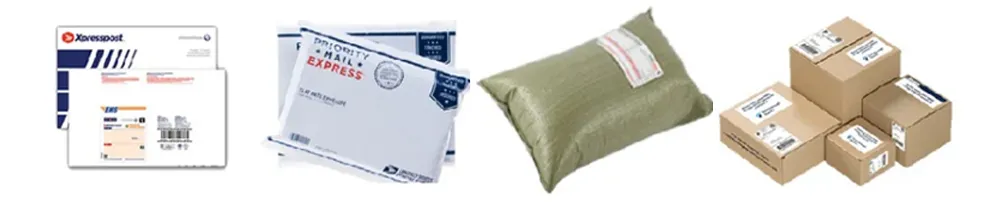

| Package type | Paper box, soft package, nylon bag, plastic bag, wooden box, etc. |
| Scanning size | Min. 50*50*20mm ---- Max. 800*800*800mm |
| Fix Capability | 2600--3600 Ps/hour |
| Software interface | HTTP; TCP; 485; |
| Support system | Windows 7/10 or above; 32/64 bits |

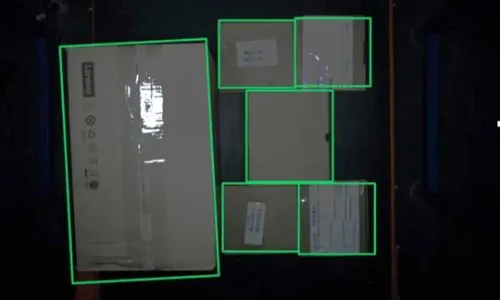

Accurate identification scan: Multiple packages pass through at the same time with accurate scanned information.

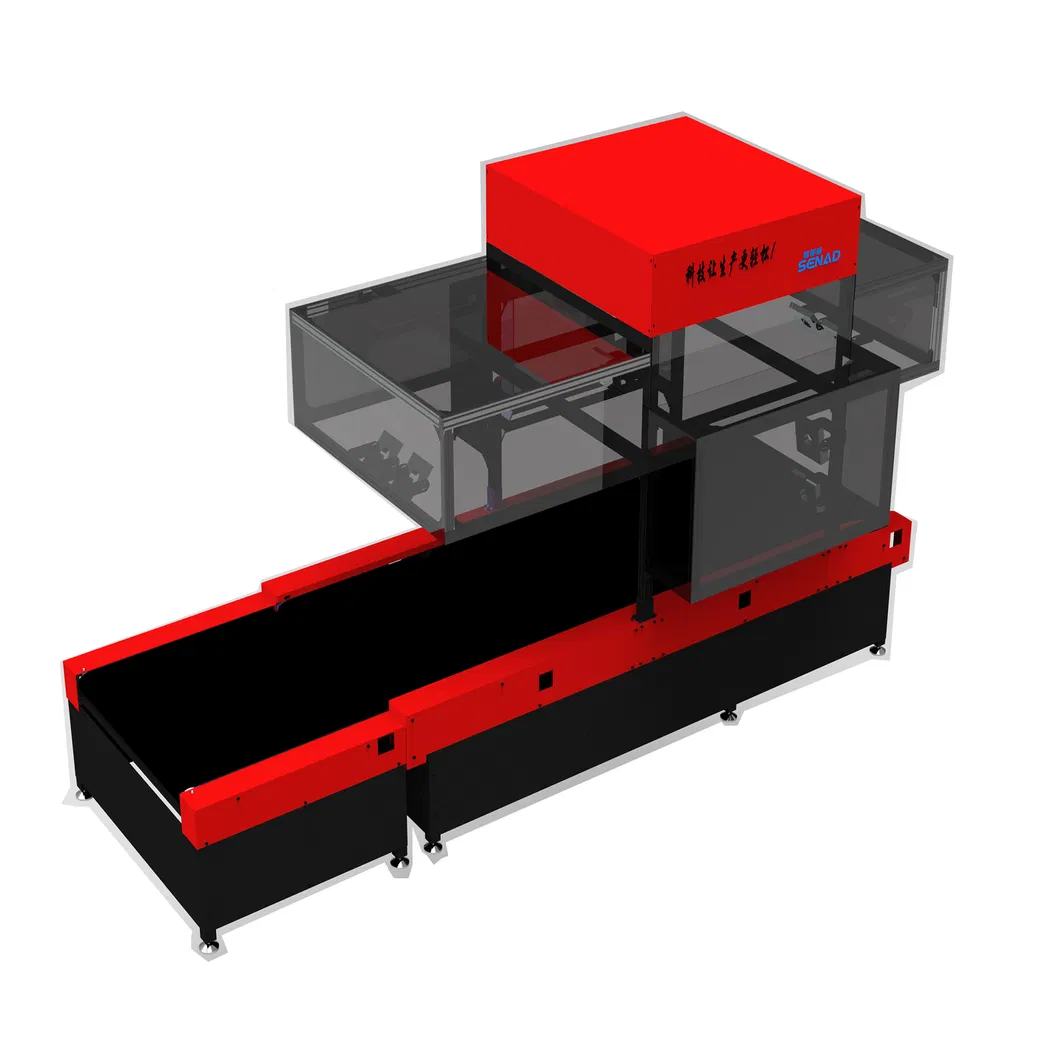

Ease of Installation: Integrated components feature modular construction for quicker assembly.

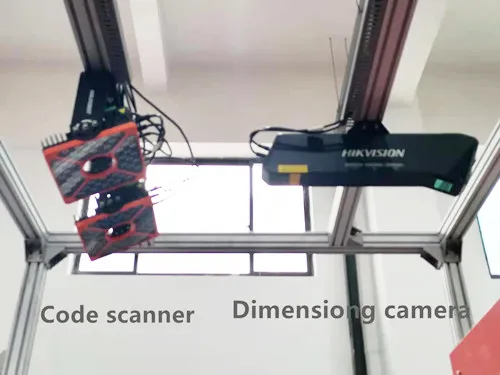

HD camera: Accurately identifies item information with an accuracy rate reaching 99.99%.

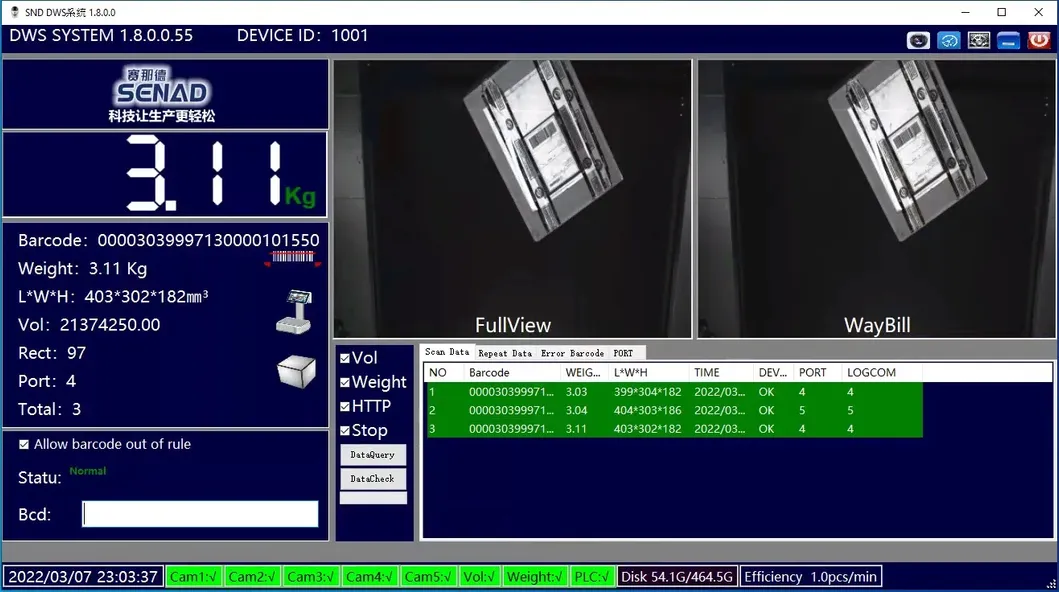

Clear record interface: Operation interface displays size, weight, and barcode info; supports system docking.
Founded in 2012, this high-tech enterprise concentrates on research, development, and production of high-end warehouse automation equipment. Solutions include standard and customizable equipment for barcode scanning, weighing, volume measurement, and automated sorting. By adopting deep learning algorithms and industrial vision positioning, the equipment aims to replace manual labor with robots to achieve high efficiency and accuracy.
