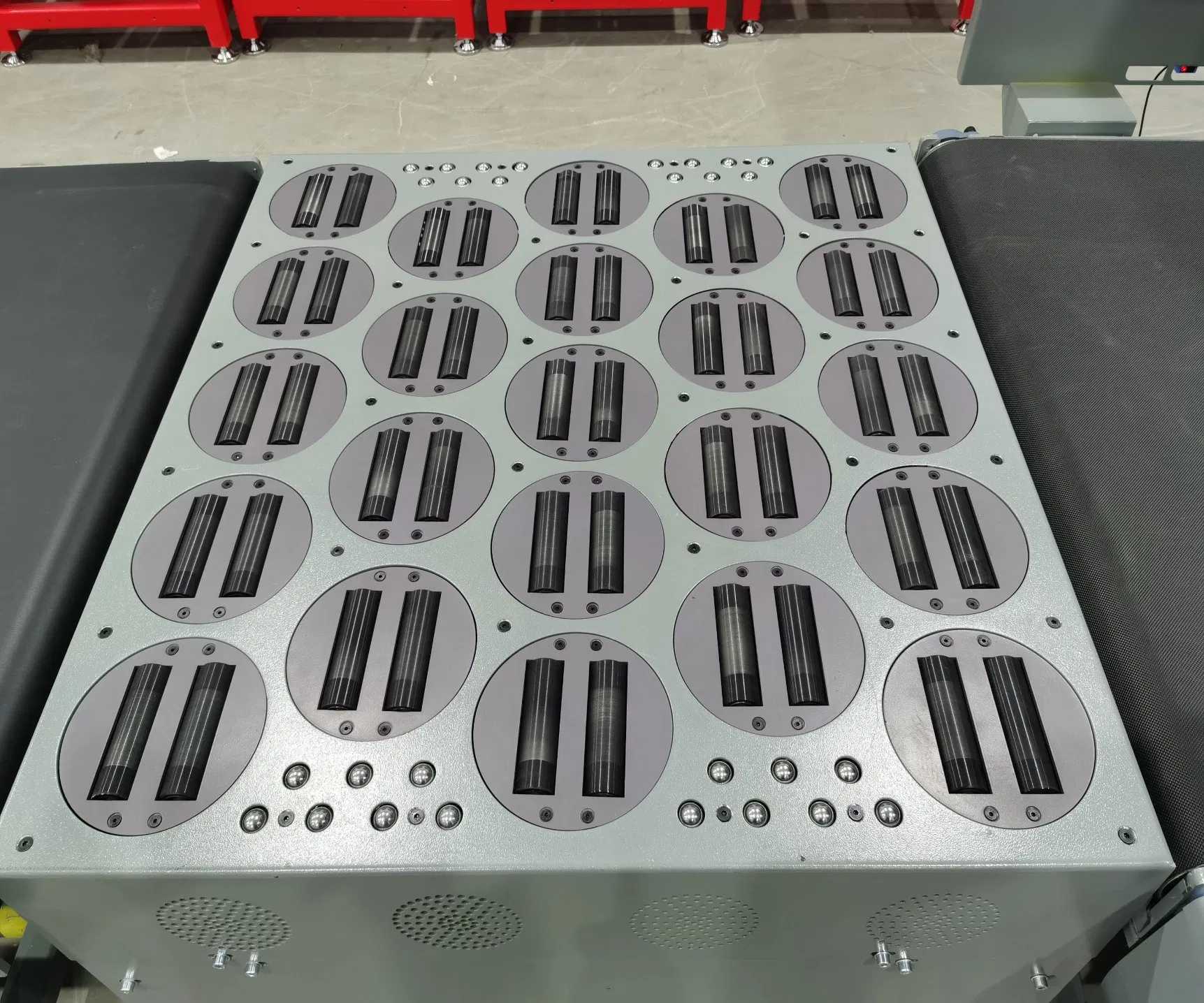

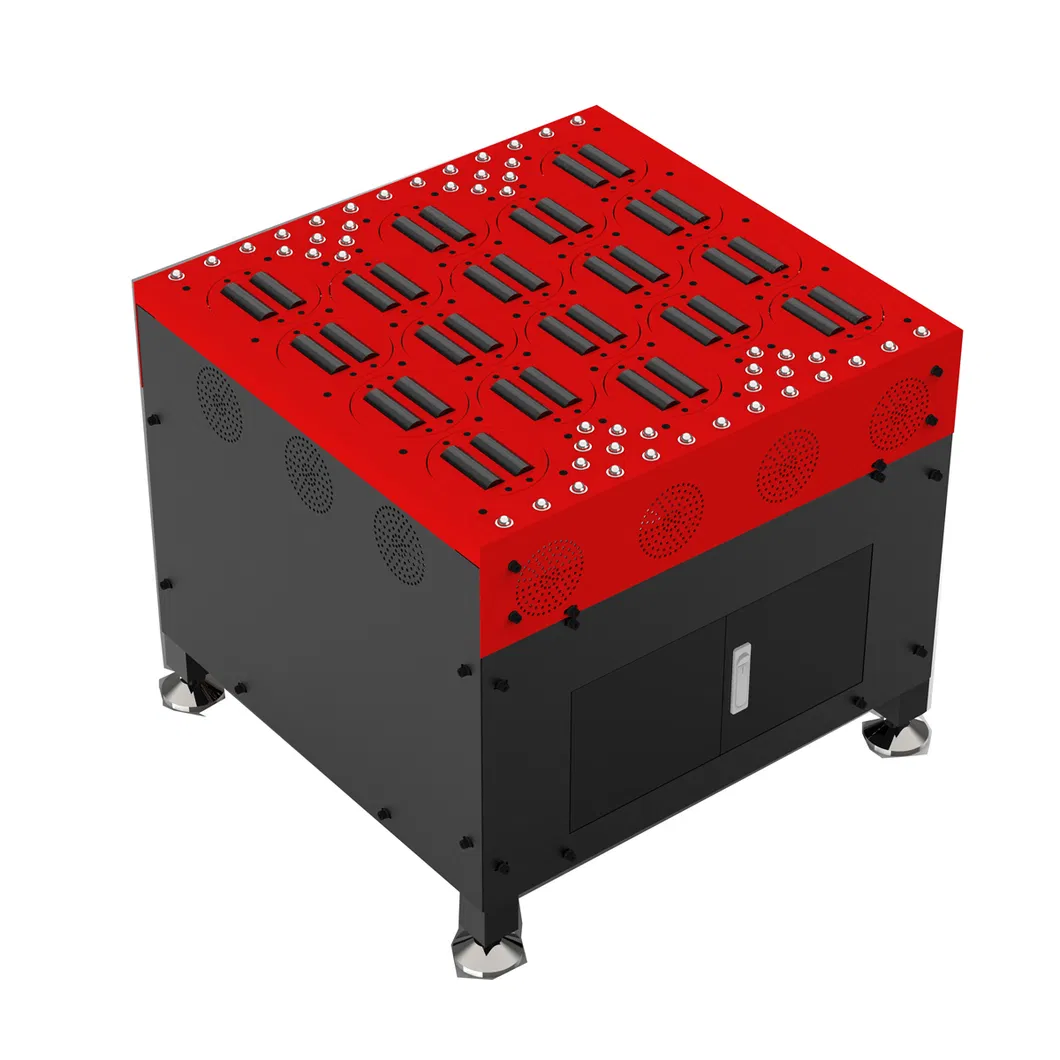

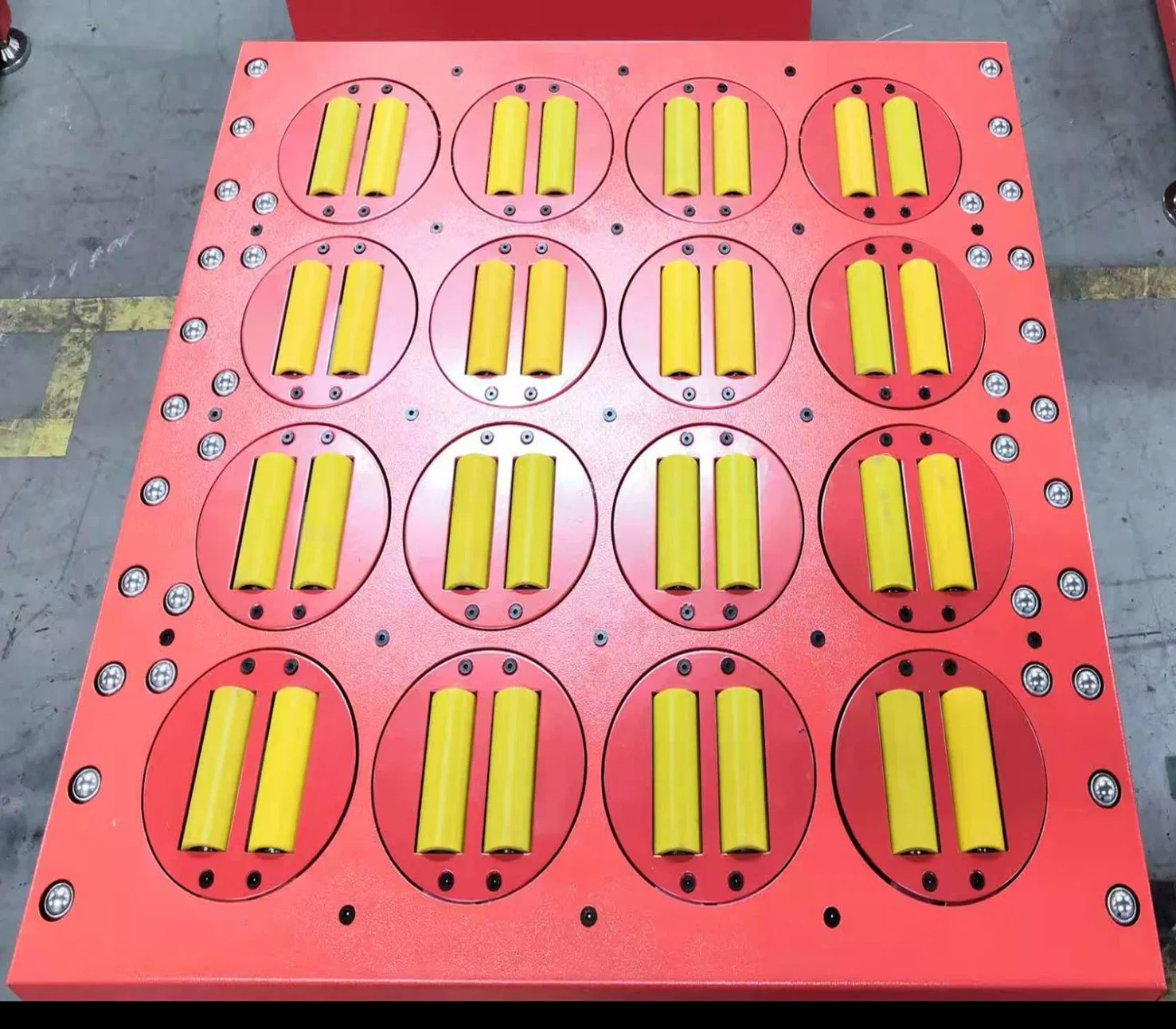

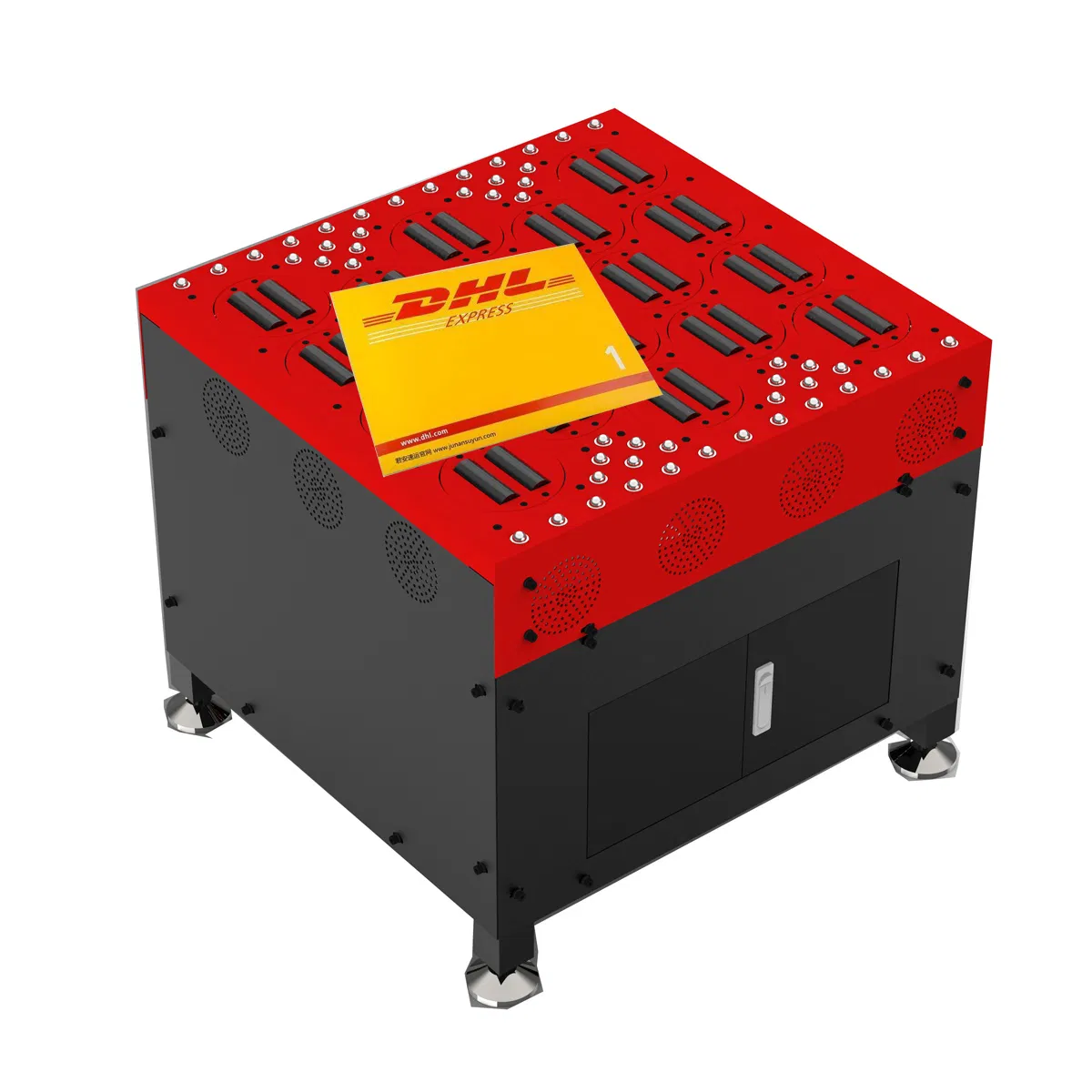

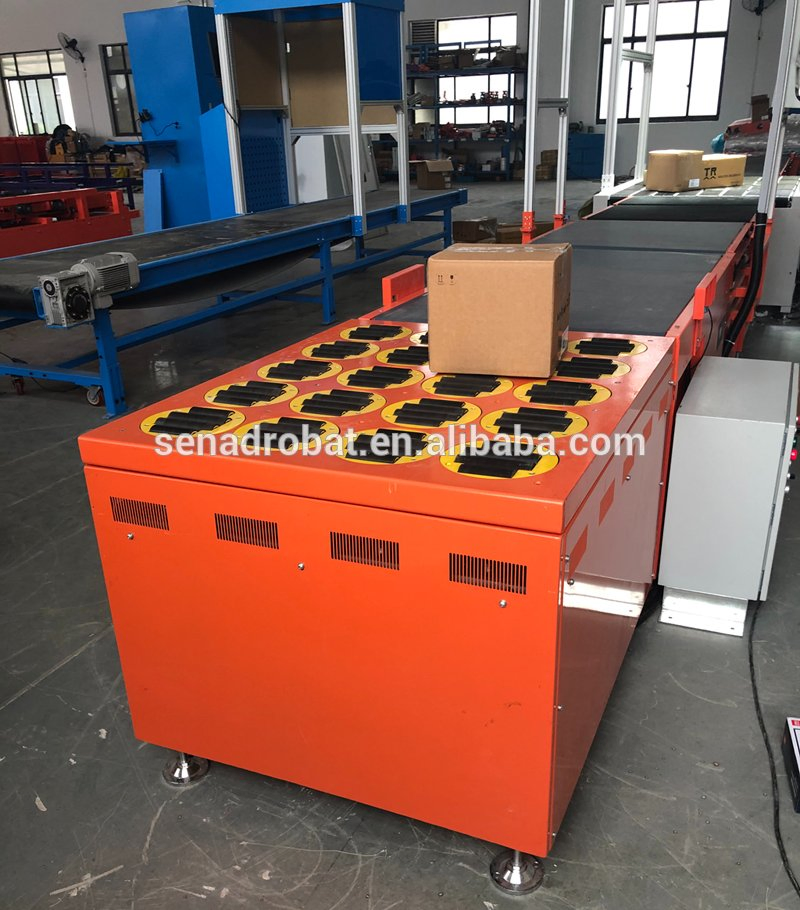

Wheel sorter is designed to sort packages in logistics, E-Commerce and other relevant industries. It is always used with DWS equipment. Parcels can be sorted according to bar code or weight. A sorting diverter can offer three or five sorting directions.
| Performance Parameters | Oblique guide wheel K-02 |
| Maximum sorting capacity | 7500 PPH (Note: Cargo 400*400mm) |
| Running speed (m/s) | 1.5m/s-2.5m/s (adjustable) |
| Handling package weight range | ≤30kg |
| Bag size | Maximum L600*600*600mm |
| Sorting direction | Sorting on both sides |
| Height adjustable range | -20/+50 mm |
| System noise level | ≤72dB |
| Transfer method | Electric roller friction drive |
| Swing angle | MAX -80° to 80° |
| Sorting Accuracy | ≥99% |
| Package type | Carton, soft bag, snakeskin bag, and other types |
Founded in 2012, our high-tech enterprise concentrates on research, development, and production of high-end warehouse automation equipment. We provide both standard and customizable solutions to realize functions such as high-speed barcode scanning, weighing, volume measurement, conveying, and sorting. Utilizing machine vision deep learning algorithms and robot motion control, our goal is to achieve efficiency through automated technology.
