| Structure | Conveyor System | Application | Warehouse |
|---|---|---|---|
| Condition | New | Temperature | -5~45℃ |
| Weighing Range | 0.1~60kg | Weighing Accuracy | ±20g |
| Rating Power | ≤3.5kw | Fix Capability | 2600--3600 PS/Hour |
| Code Accuracy | 99.9% | Working Voltage | AC220V/380V~50Hz |
| Specification | 1660*1100*2600mm | HS Code | 8479894000 |

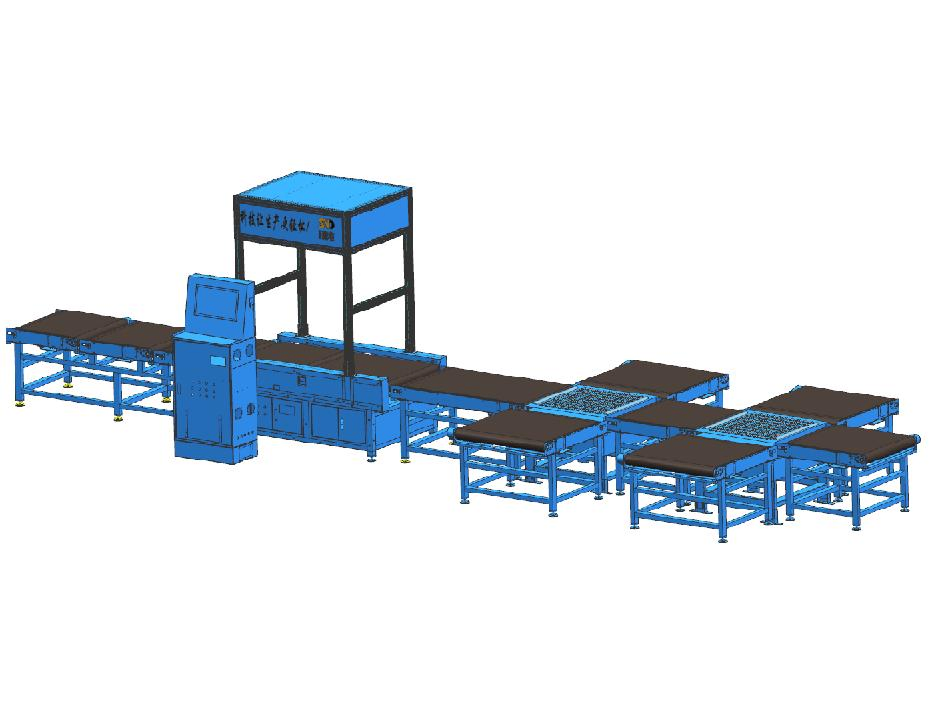

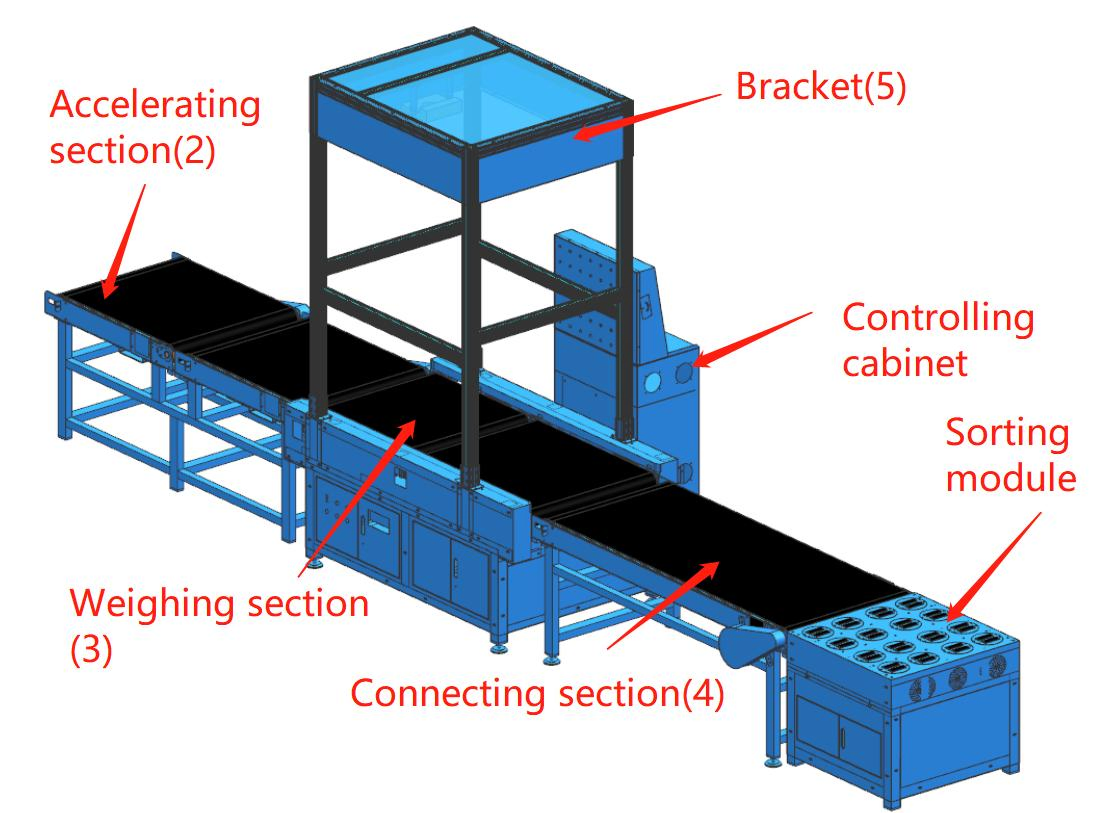

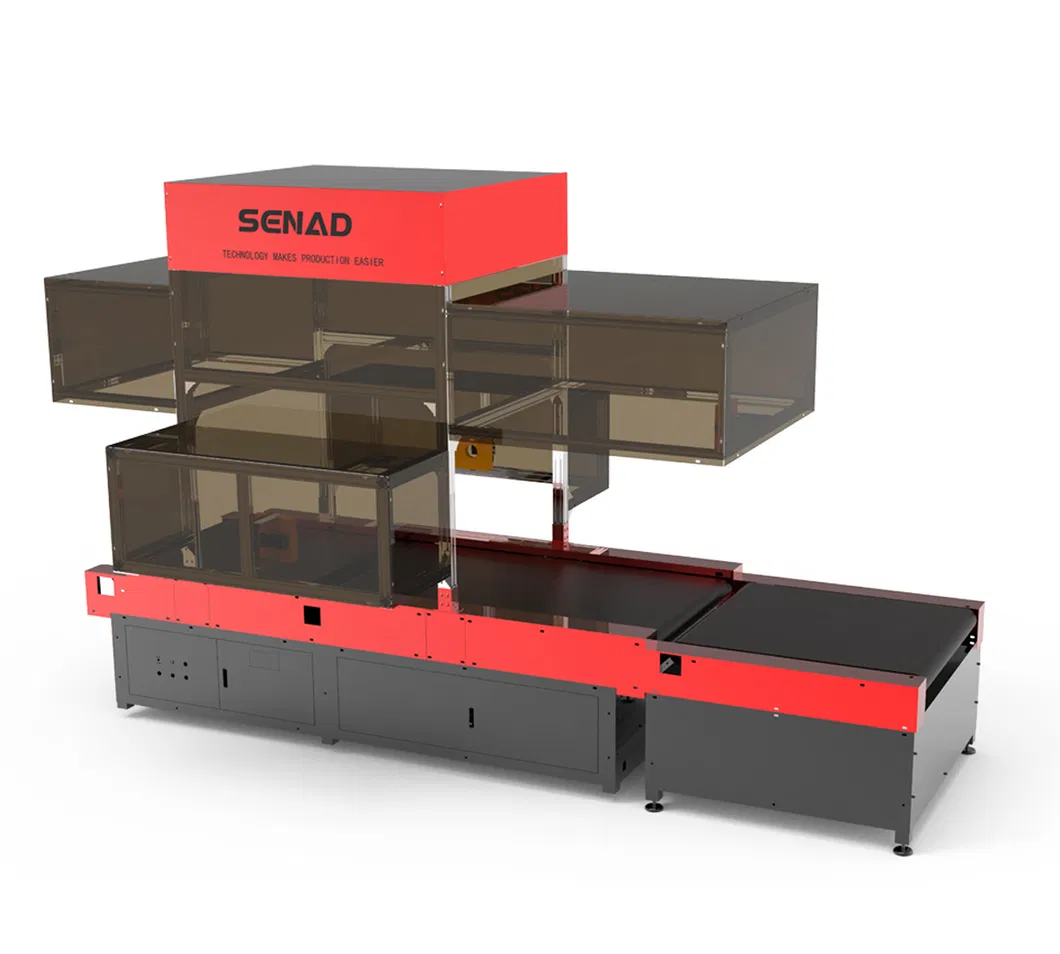

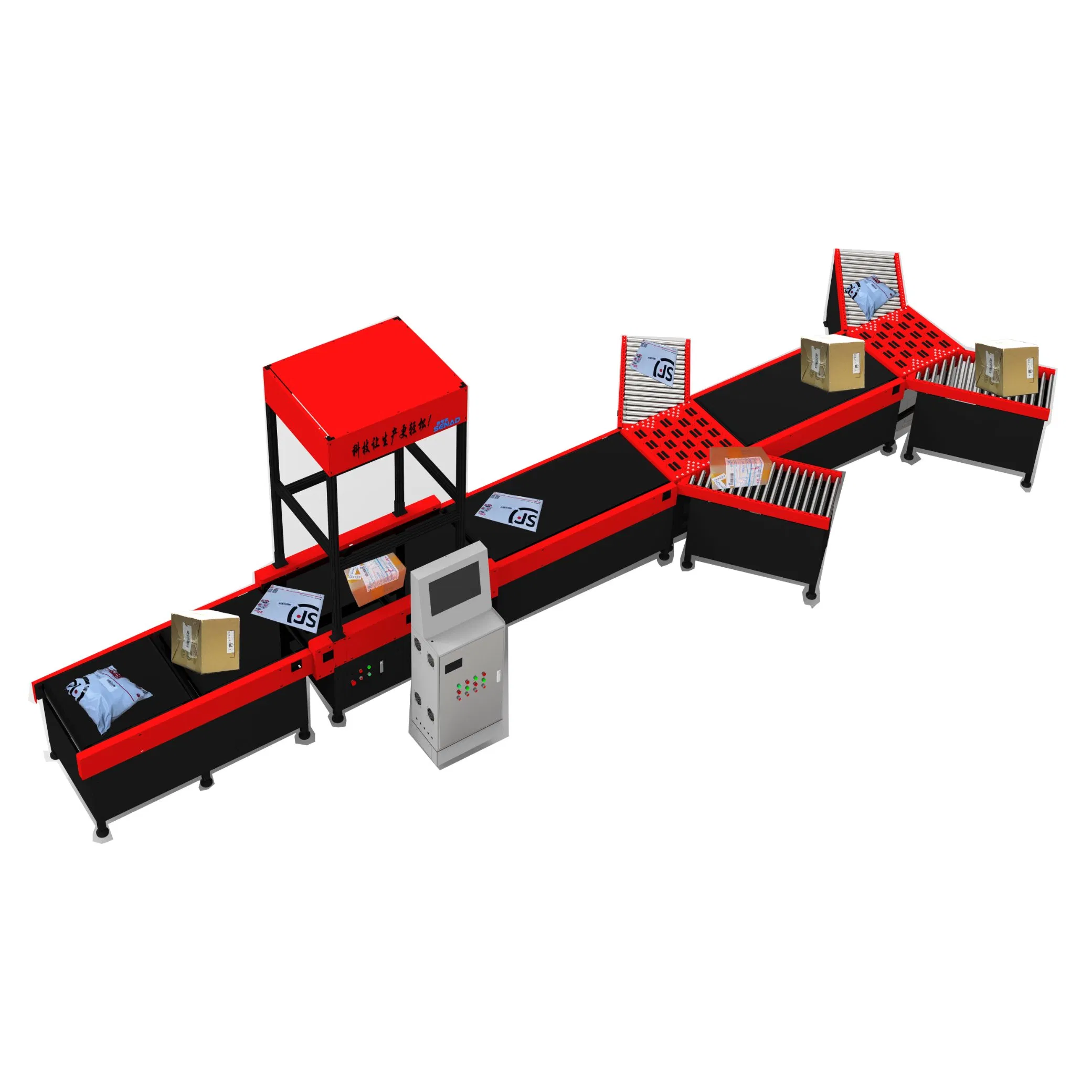

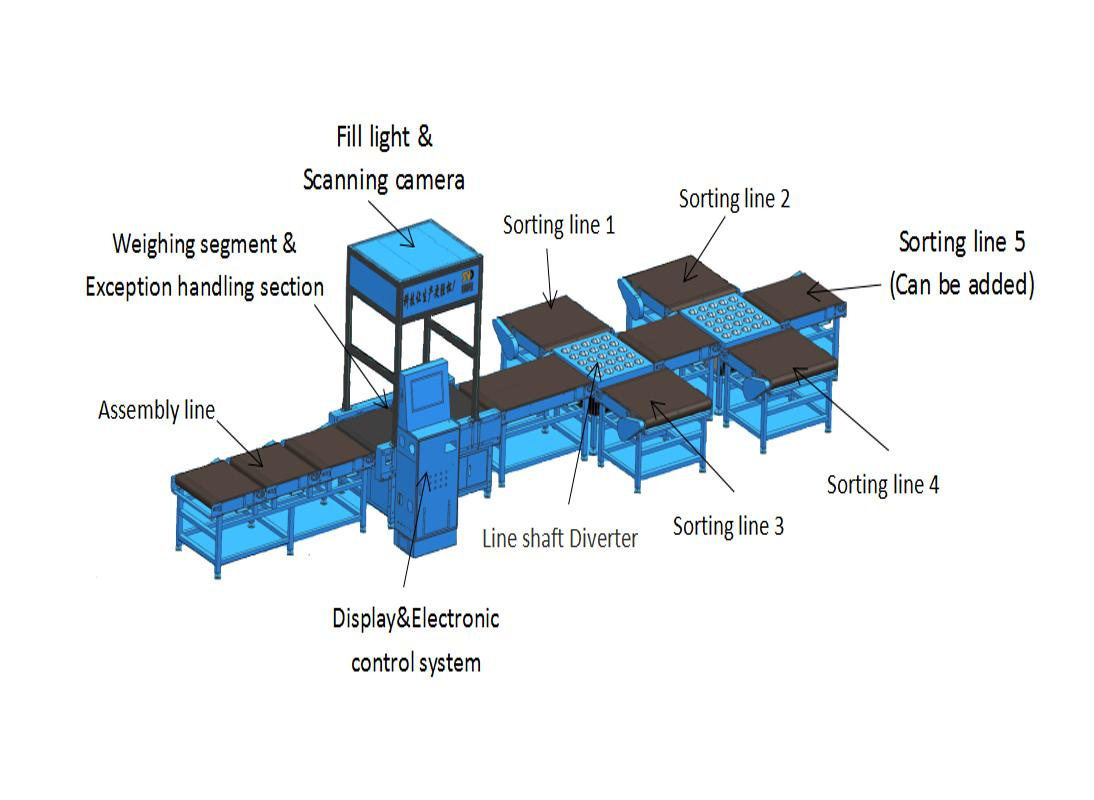

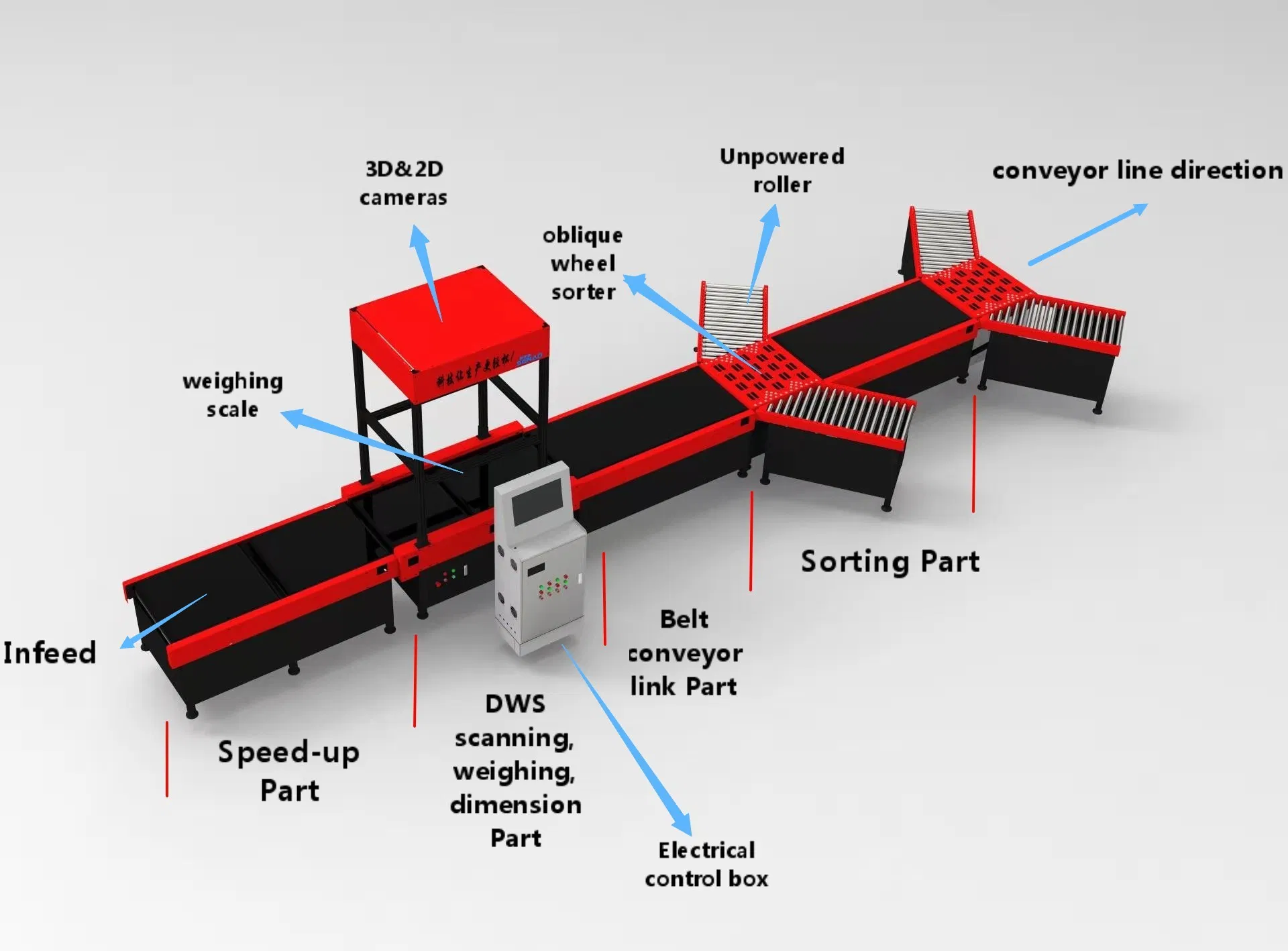

Barcode scanning weighing dimension measuring machine with extendable belt conveyor for high efficiency warehousing. The telescopic machine series is an integration solution to save space. It integrates two major monitor systems: a dynamic DWS system, which allows the system to capture package information in a conveying line, and a flexible conveying system, which controls the belt conveyor stretch.
This equipment realizes automatic truck loading & unloading, weighing, high precision dynamic code reading, volume measurement integration, and parcel photoing for tracking references. Collected information can be uploaded to management systems as a shipping fee pricing basis.
| Item | Parameters |
|---|---|
| Main functions | 1D/2D code scanning (Five-side); weighting & volume measurement |
| Package type | Paper box; soft package; nylon bag; plastic bag; hard wooden box |
| Scanning size | Min. 50*50*20mm ---- Max. 800*800*800mm |
| Rating power | ≤3.5KW |
| Working voltage | AC220V/380V~50HZ |
| Identify accuracy | 99.9% |
| Weighing range | 0.1~60kg |
| Software interface | HTTP; TCP; 485 |

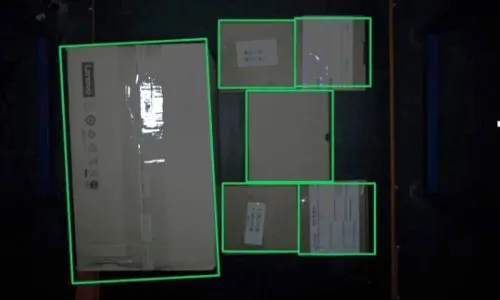

Accurate identification scan

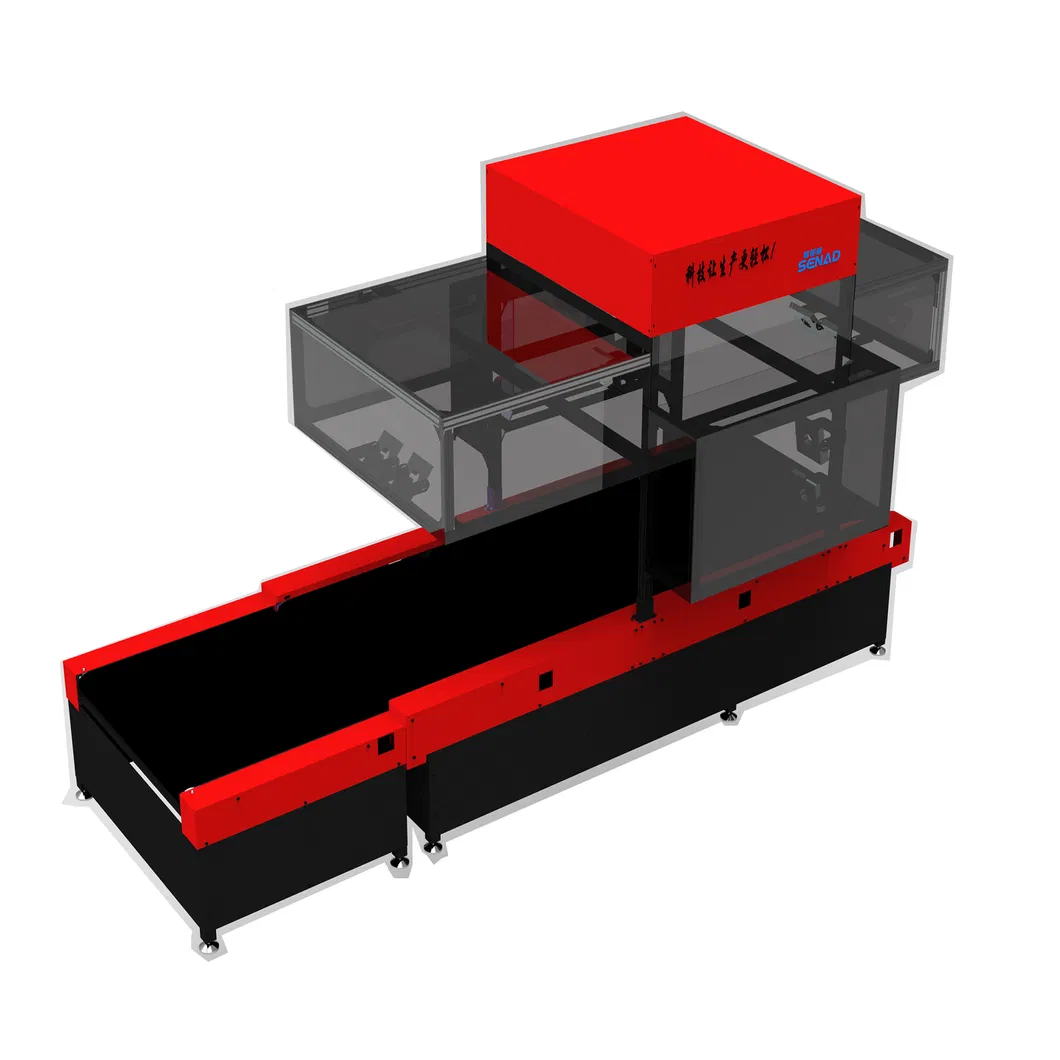

Ease of Installation

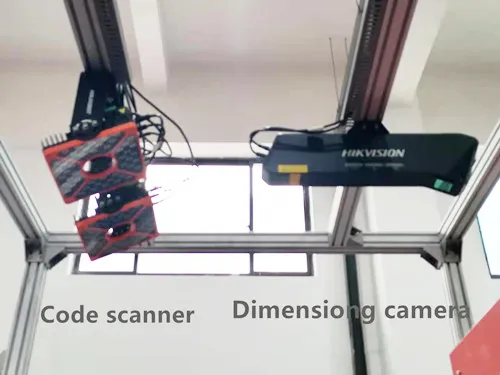

High Definition camera

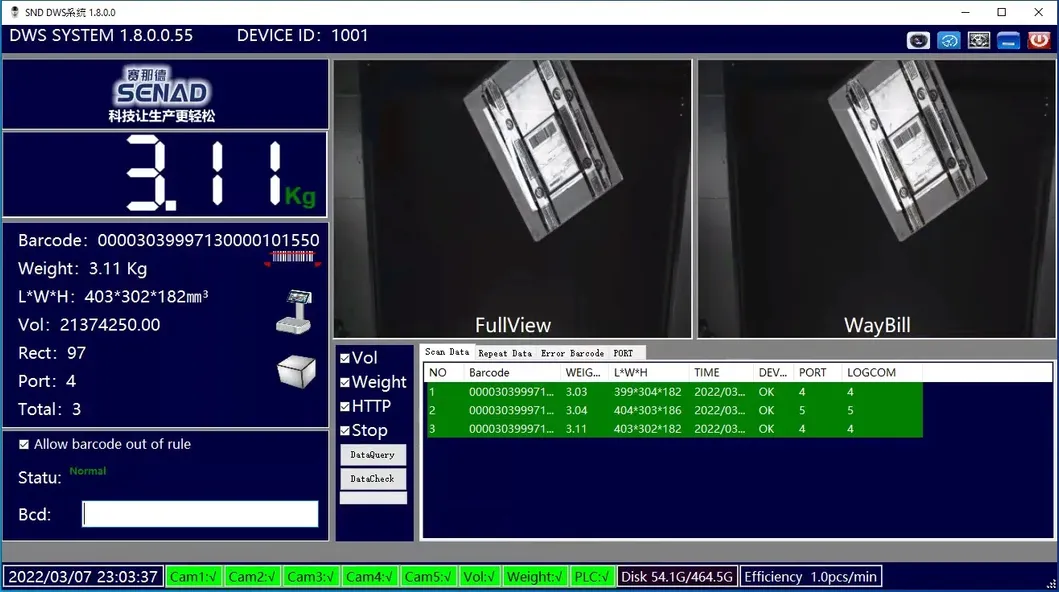

Clear record interface
Wide Application Range

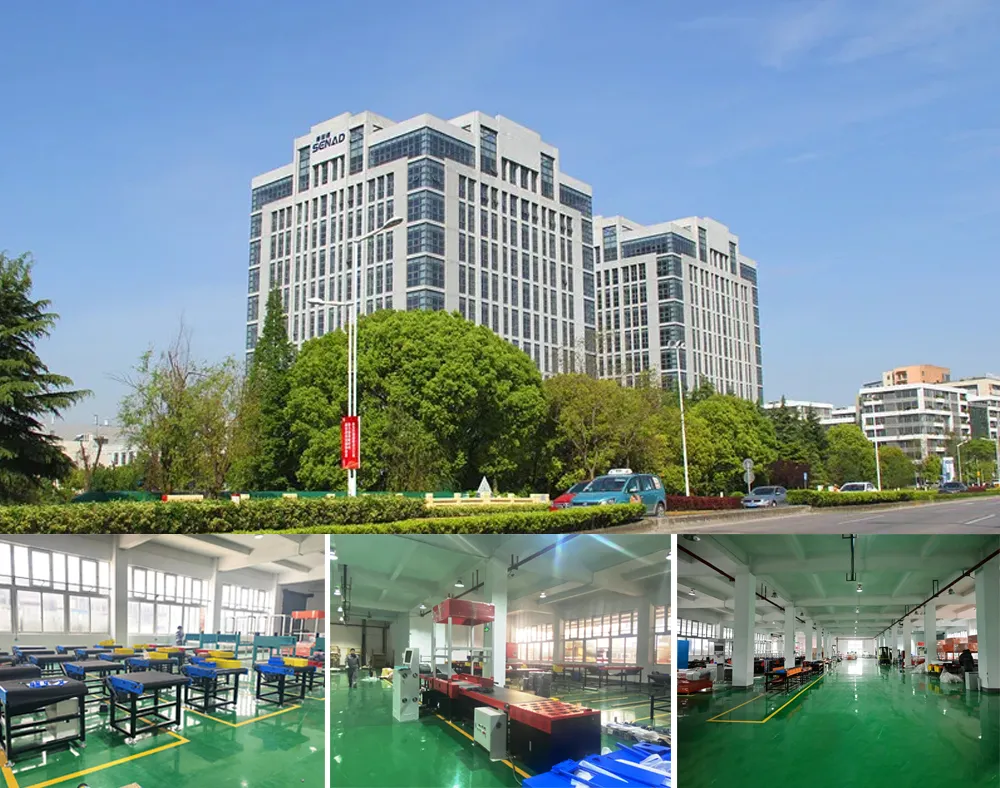

Founded in 2012, we are a high-tech enterprise concentrated on R&D and production of high-end warehouse automation equipment. Our solutions include high-speed barcode scanning, weighing, volume dimensions measuring, and sorting systems. We use machine vision deep learning algorithms and robot motion control to replace manual labor, achieving high efficiency and reducing human errors.
