Logistics Solution Parcels Tracking Barcode Dimension Weighing Scanning Conveying Automation Dws Sorting Line System

📊 Basic Information

Structure

Conveyor System

Application

Warehouse

Condition

New

Temperature

-5~45℃

Weighing Range

0.1~60kg

Weighing Accuracy

±20g

Rating Power

≤3.5kw

Fix Capability

2600--3600 PS/Hour

Identify Accuracy

99.9%

Working Voltage

AC220V/380V~50Hz

Loading Mode

Manual/Automatic

HS Code

8479894000

📦 Product Description

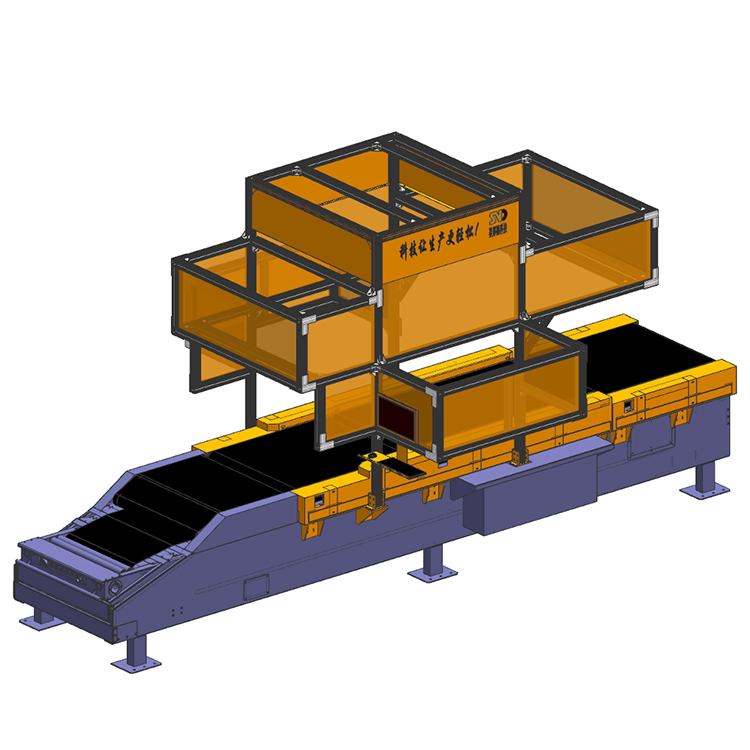

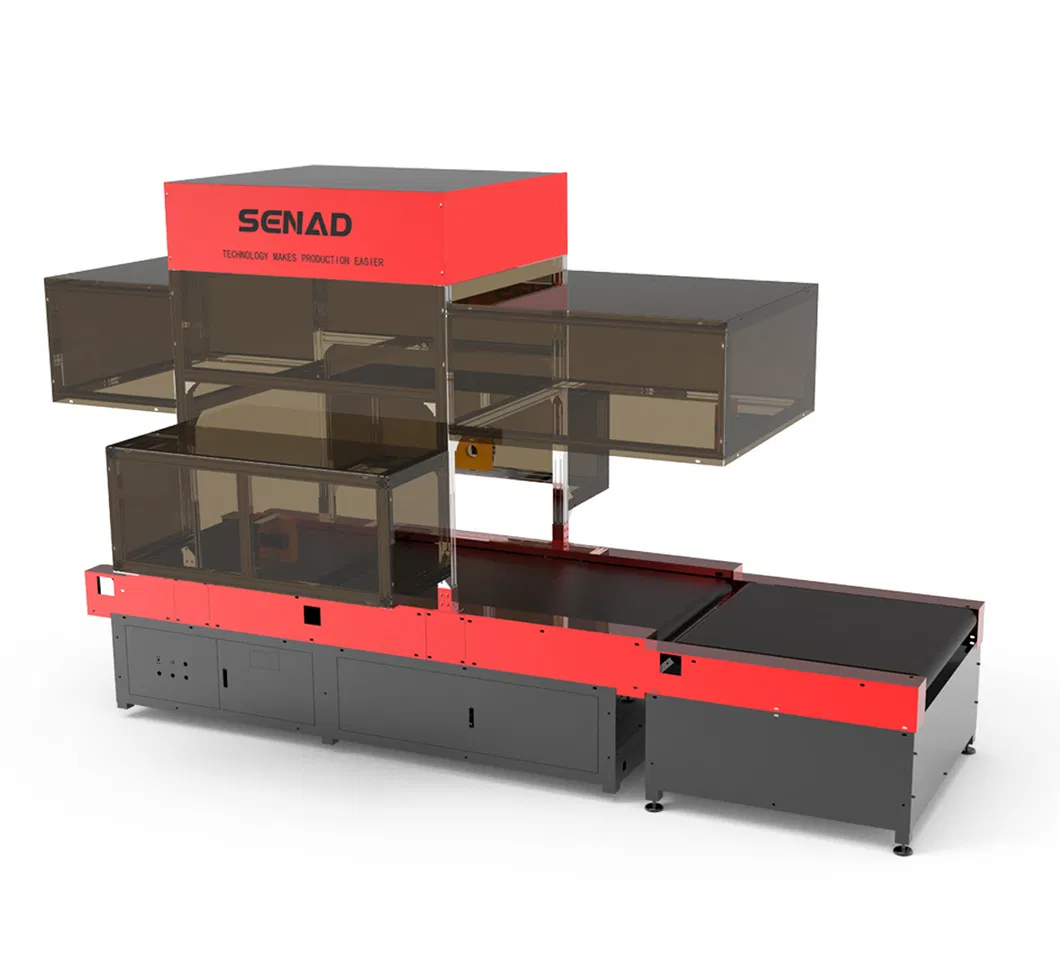

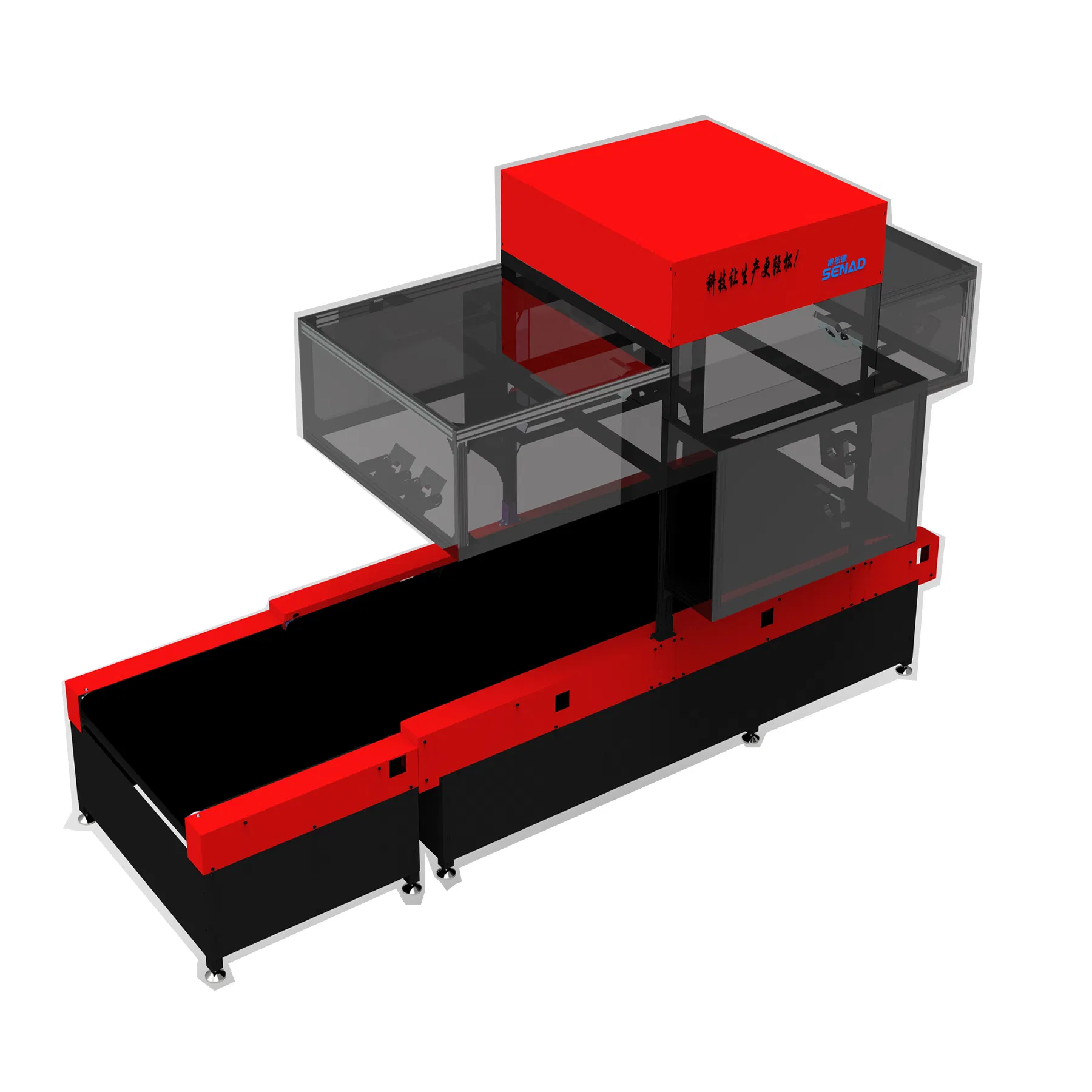

Barcode scanning weighing dimension measuring machine with extendable belt conveyor for high efficiency warehousing. The telescopic machine series is an integration solution to save space. It integrates two major monitor systems. One is a dynamic DWS system, which allows the system to capture the package information in a conveying line. The other is a flexible conveying system, which controls the belt conveyor stretch its telescopic mechanisms at flexible lengths at operator's will.

The equipment can realize automatic truck loading & unloading, weighing, high precision dynamic code reading, volume measurement information integration, as well as parcel photoing for tracking references. The collected information is objective and accurate, and can be uploaded to warehouse management systems (WMS/ERP) as shipping fee pricing basis.

⚙️ Product Parameters

Item	Parameters
Main functions	1D/2D code scanning (Five-side); weighting & volume measurement
Package type	Paper box; soft package; nylon bag; plastic bag; wooden box, etc.
Scanning size	Min. 505020mm to Max. 800800800mm
Rating power	≤3.5KW
Working voltage	AC220V/380V~50HZ
Fix Capability	2600--3600 Ps/hour
Weighing range	0.1~60kg (Accuracy ±20g)
Equipment size	166011002600mm (LWH)
Software interface	HTTP; TCP; 485;
Support system	Windows 7/10 or above; 32/64 bits

🔍 Product Details

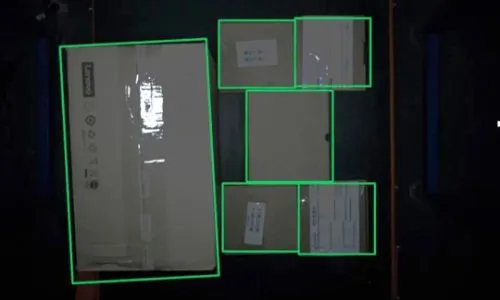

Accurate identification scan: Multiple packages pass through simultaneously with accurate data capture.

Ease of Installation: Modular, standardized construction for quick assembly and commissioning.

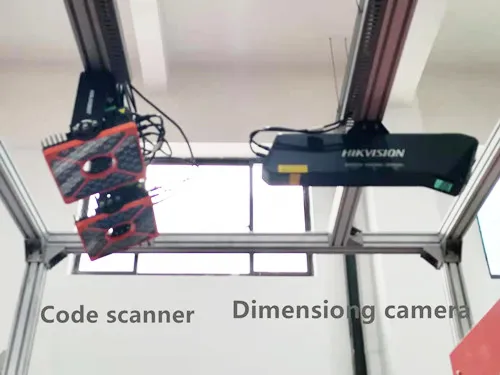

HD Camera: High-resolution tracking to reach up to 99.99% accuracy rate.

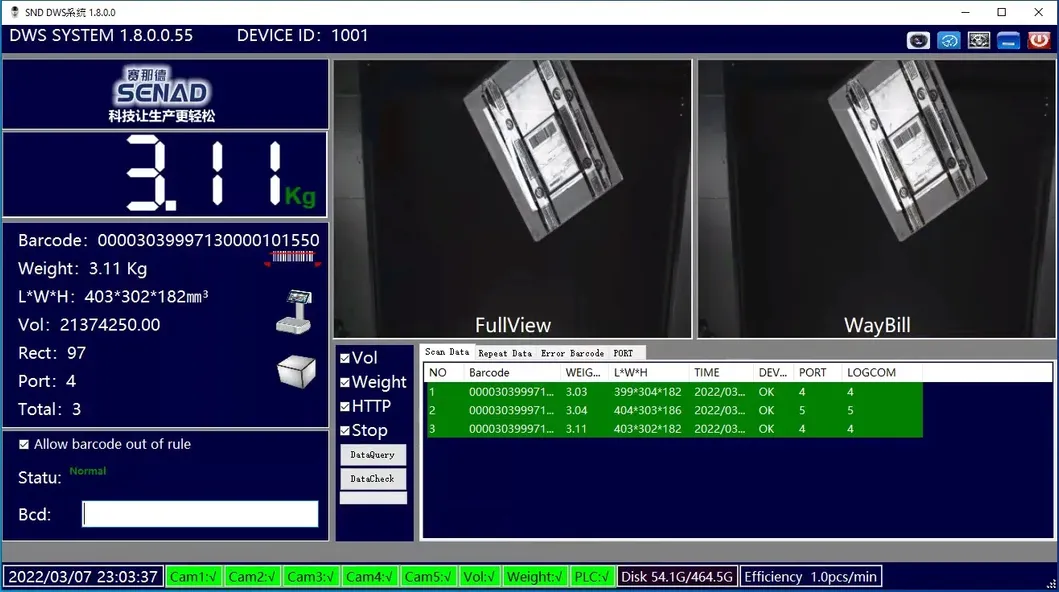

Clear Interface: Operation interface displays size, weight, and barcode with customizable language.

🚀 Application Scope

Supported Items: Envelopes, Soft Parcels, Big Packages, and Various Box shapes.

💎 Product Features

✔ Major Functions Dynamic weighing, automatic barcode reading, and optional cubic dimension measuring.
✔ Data Management Real-time local storage and online uploading of data and images to management systems.
✔ High Efficiency Processing capacity up to 4500 pieces per hour.

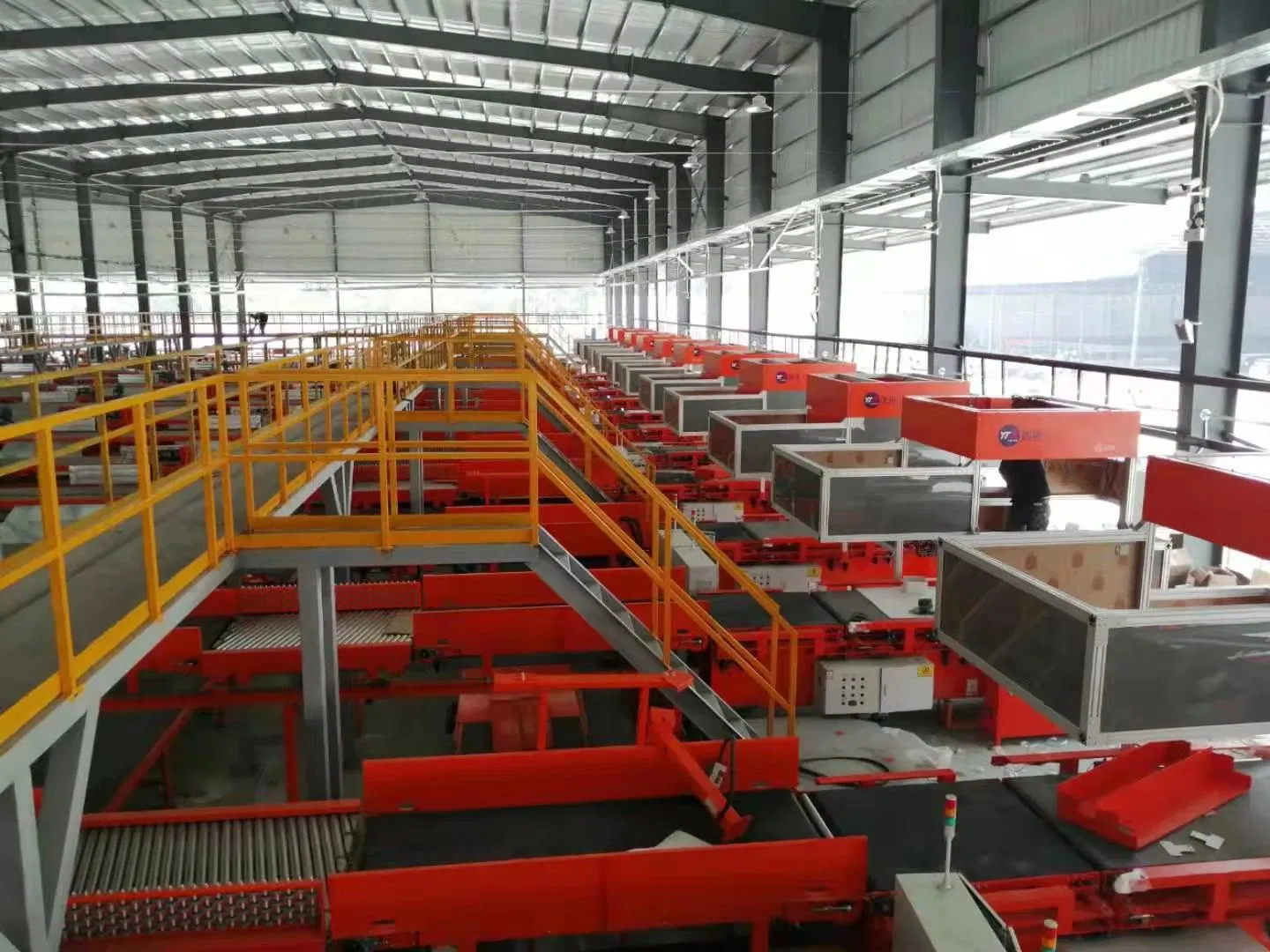

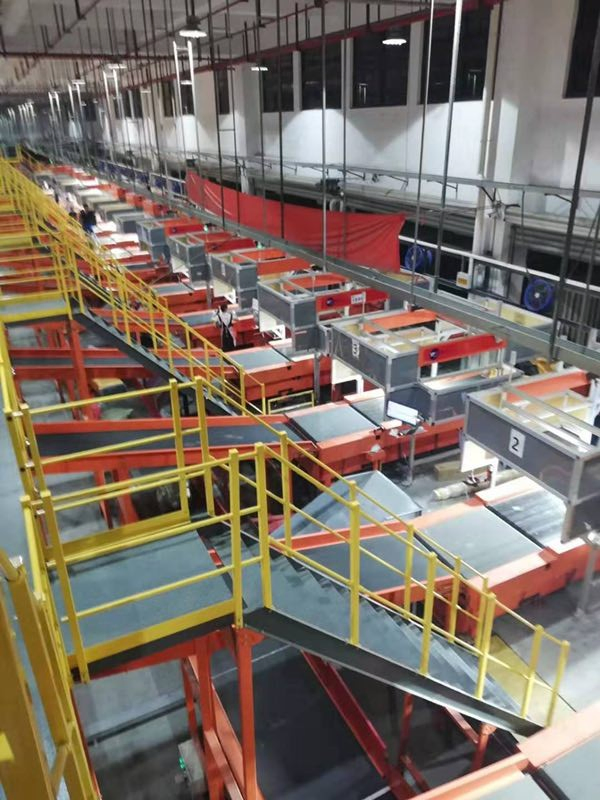

✔ DWS Applications E-commerce stock receiving, 3-PL automated docking, and distribution center intake.

🏢 Professional Enterprise

Founded in 2012, this high-tech enterprise concentrates on R&D and production of high-end warehouse automation equipment. Using machine vision deep learning algorithms and robot motion control, the technology achieves the goal of replacing manual labor with automated systems to improve efficiency and reduce human error.

📜 Certifications

🛠️ After Sales Service

1. Full assembly and debugging before delivery.
2. Response within 24 hours for any technical inquiries.
3. 1-year free repair service (non-human damage).
4. Comprehensive overall warehousing solutions provided.

🤝 Trusted Partners

❓ Frequently Asked Questions

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company specializing in warehouse automation solutions.

Q2. What are your main advantages?

We are a national high-tech enterprise with an in-house software development team providing efficient R&D, OEM, and ODM services, including device color customization.

Q3. What pre-sales and after-sales services do you provide?

Pre-sales: Customized planning and design. After-sales: 24/7 online service, remote installation guidance, and software system docking.

Q4. How long is the product warranty period?

One year warranty is provided, excluding consumable spare parts.

Q5. What are your standard payment terms?

Normally we accept T/T, L/C, D/P, D/A, Western Union, and Money Gram. Other options can be discussed.

Q6. Can the equipment be customized for specific systems?

Yes, our software supports various interfaces like HTTP, TCP, and 485 to dock seamlessly with customer management systems.
