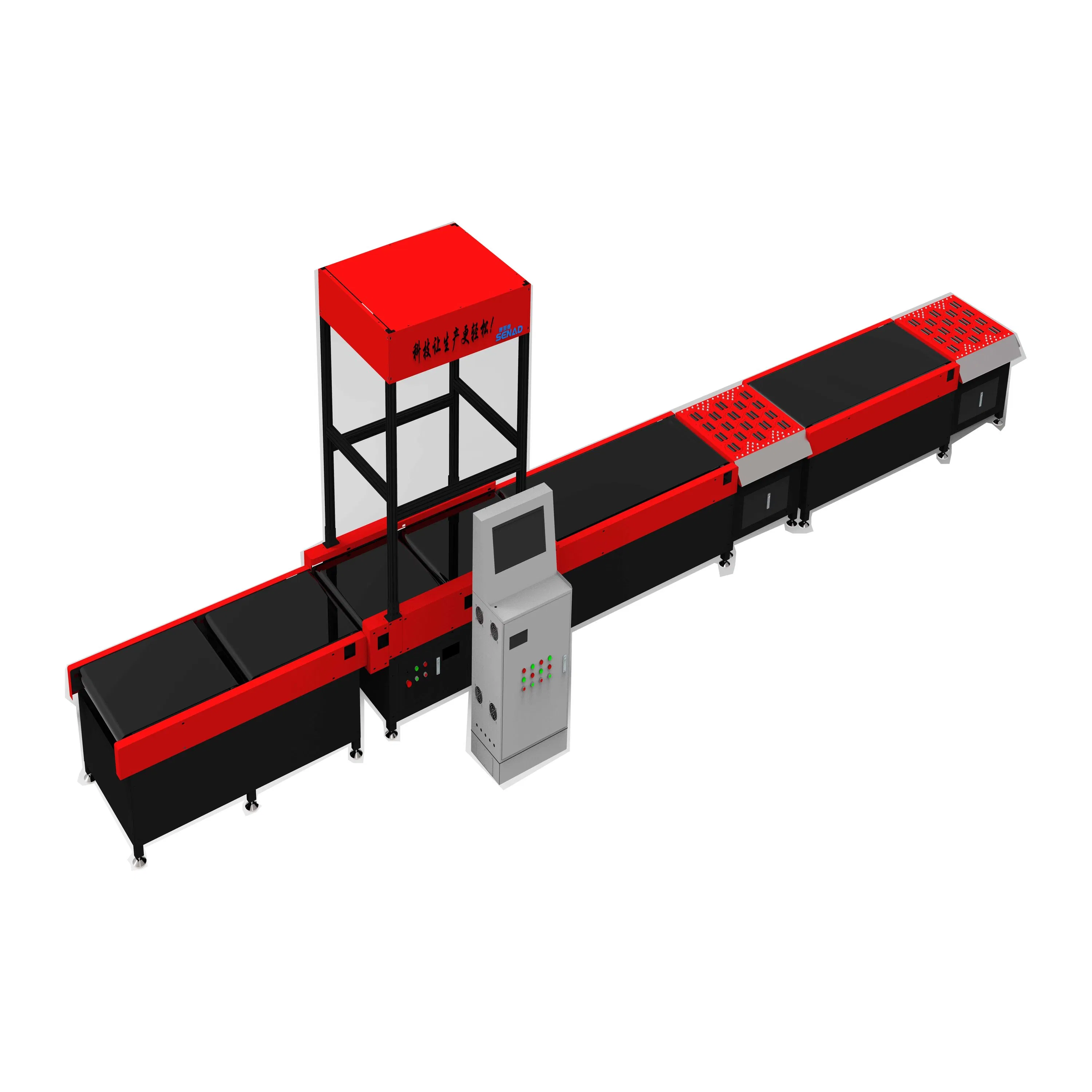

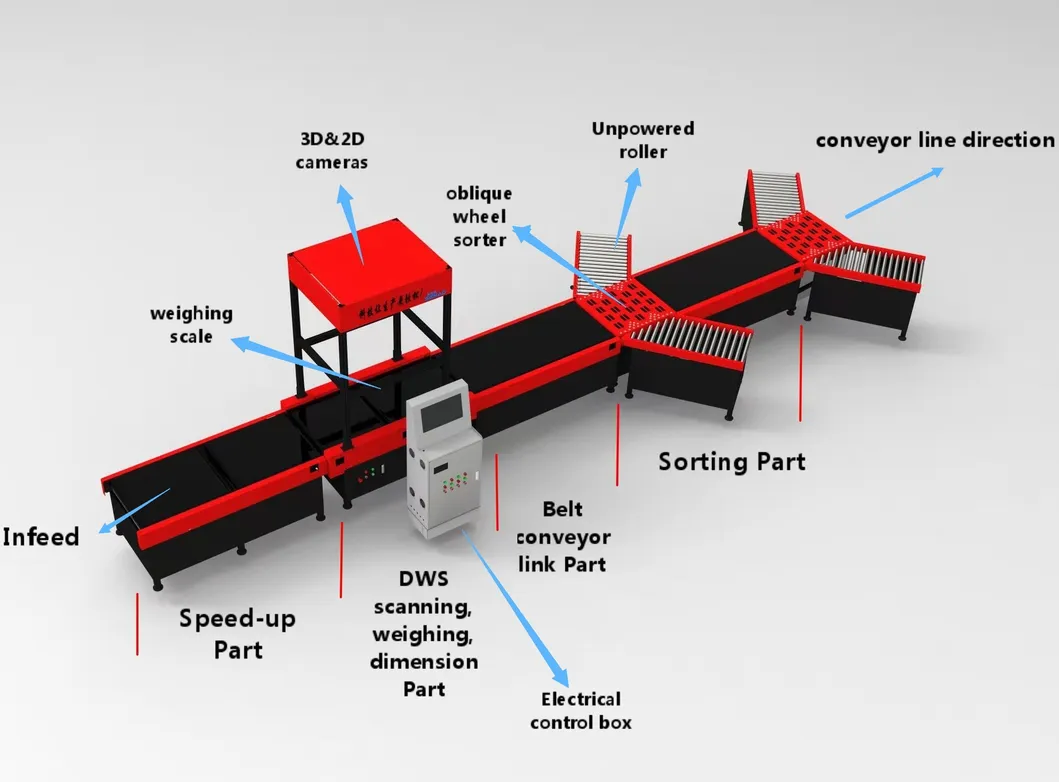

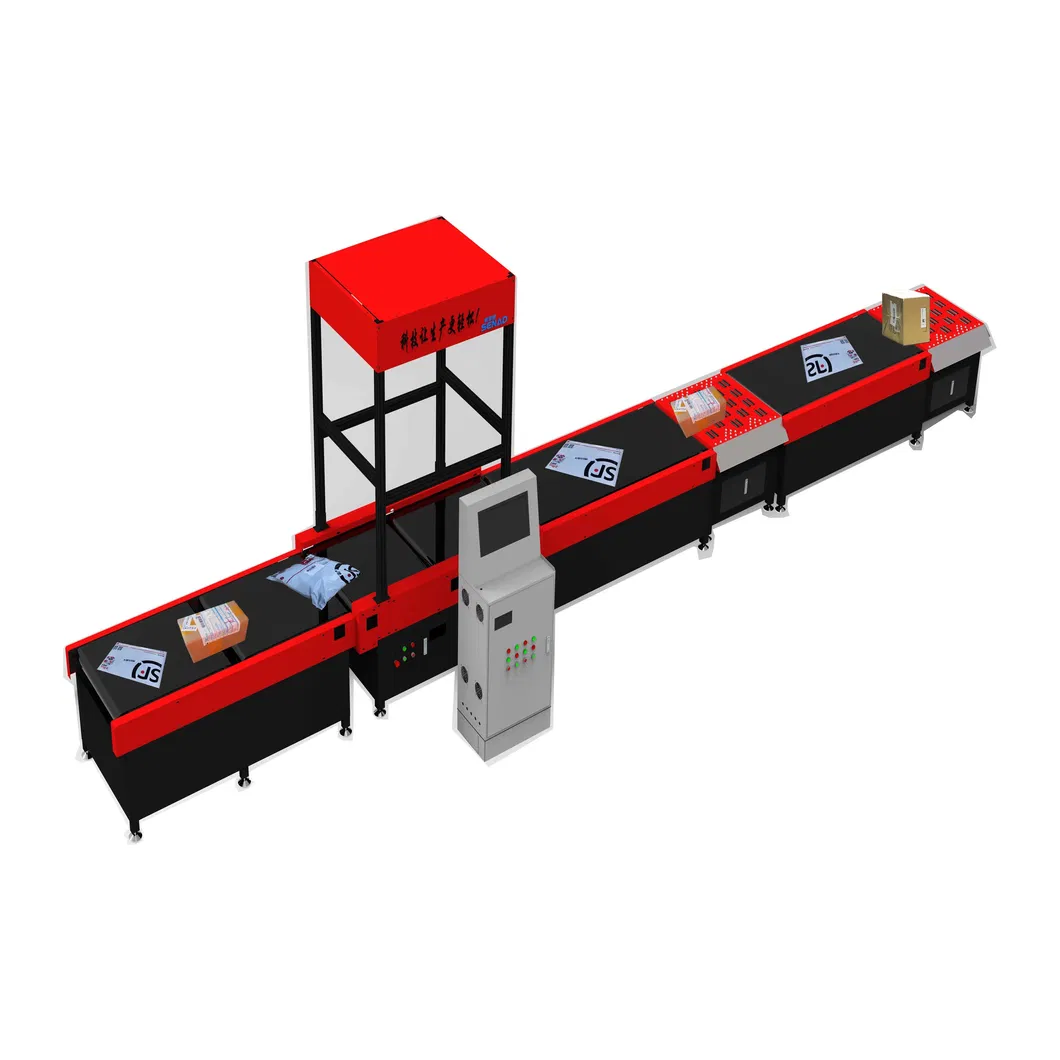

The DWS adopts high-resolution intelligent barcode reading camera, volume measuring instrument, and dynamic weighing module, which can efficiently complete the real-time accurate collection and output of the three major information of volume, barcode and weight. The system can realize the automatic sorting of express parcels with the sorting equipment.
| Parts | Configuration | |||
|---|---|---|---|---|
| Industrial computer | Intel I5 | |||
| Display | 19.5inches LCD | |||
| Camera | 20 million pixel Industrial camera | |||
| Keyboard/mouse | Logitech | |||
| Load cell | 100kg | |||
| Index | Parameter | |||
|---|---|---|---|---|
| Weighing range | 30g~60kg | |||
| Dimensioning range | 50*50*5~800*800*800mm | |||
| Capacity | 2500~3600pcs/hour | |||
| Dimensioning accuracy | ±5~15mm | |||
| Weighing accuracy | ±10g | |||
| Scanning accuracy | 99% | |||
| Software Interface | HTTP, TCP, 485 | |||
Wheel sorter
Automatically sorted into 3 directions to realize automatic sorting of parcels.

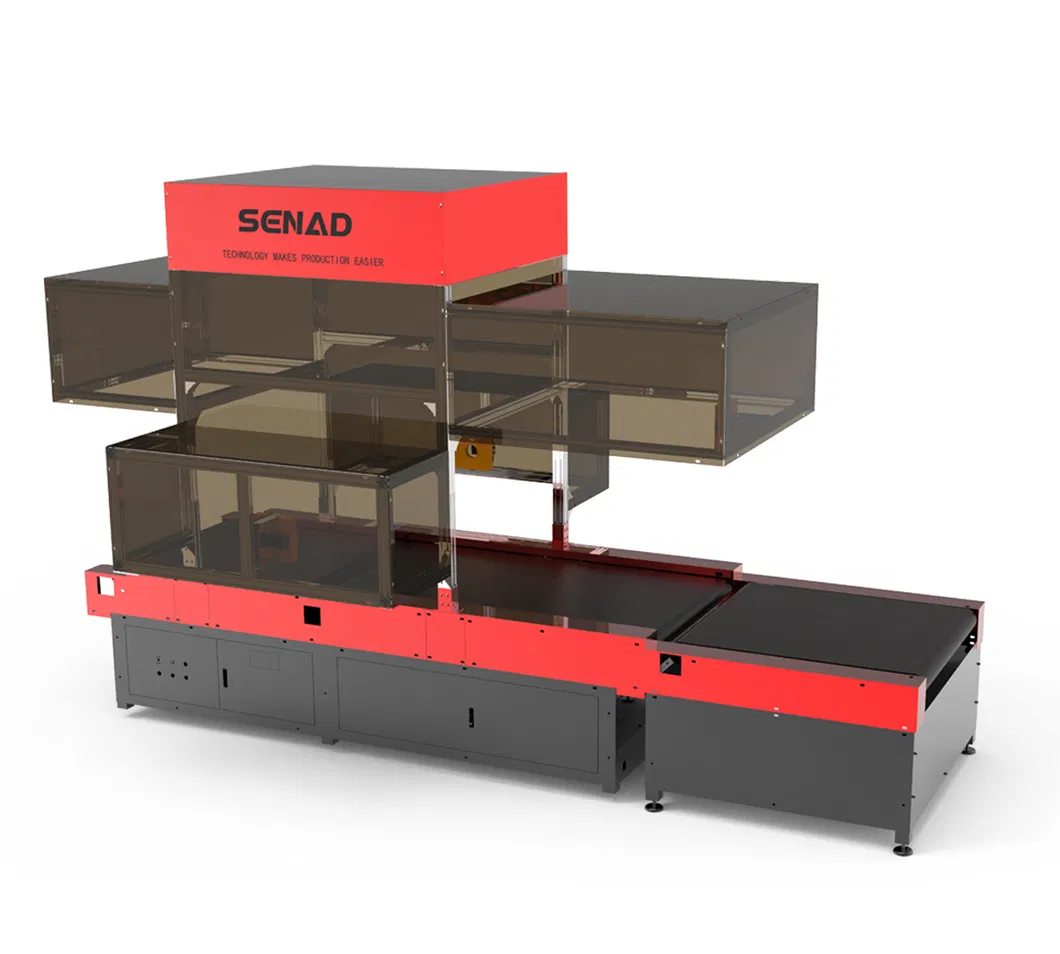

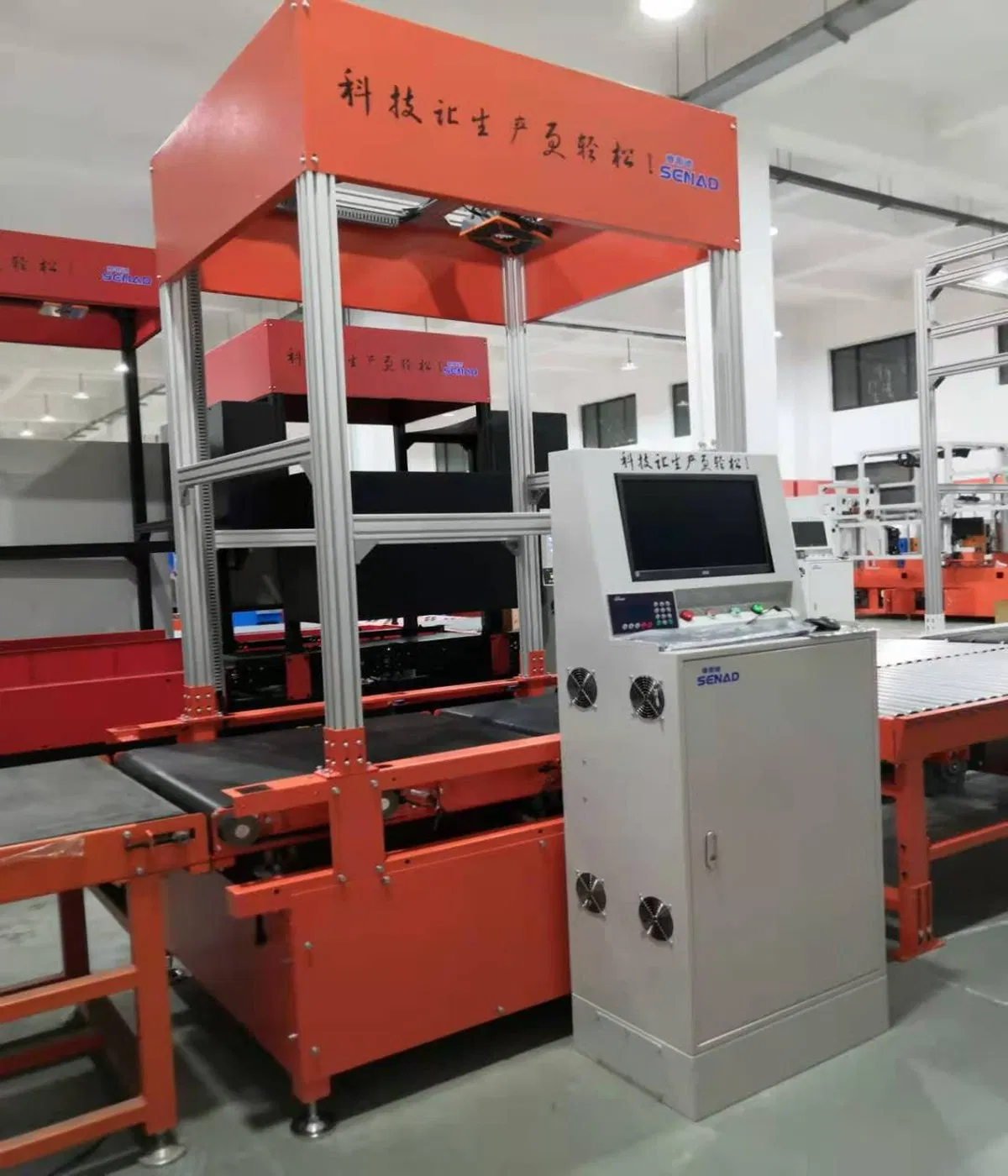

DWS Equipment
Automatically scan the code to weigh and measure volume, syncing data to the cloud.

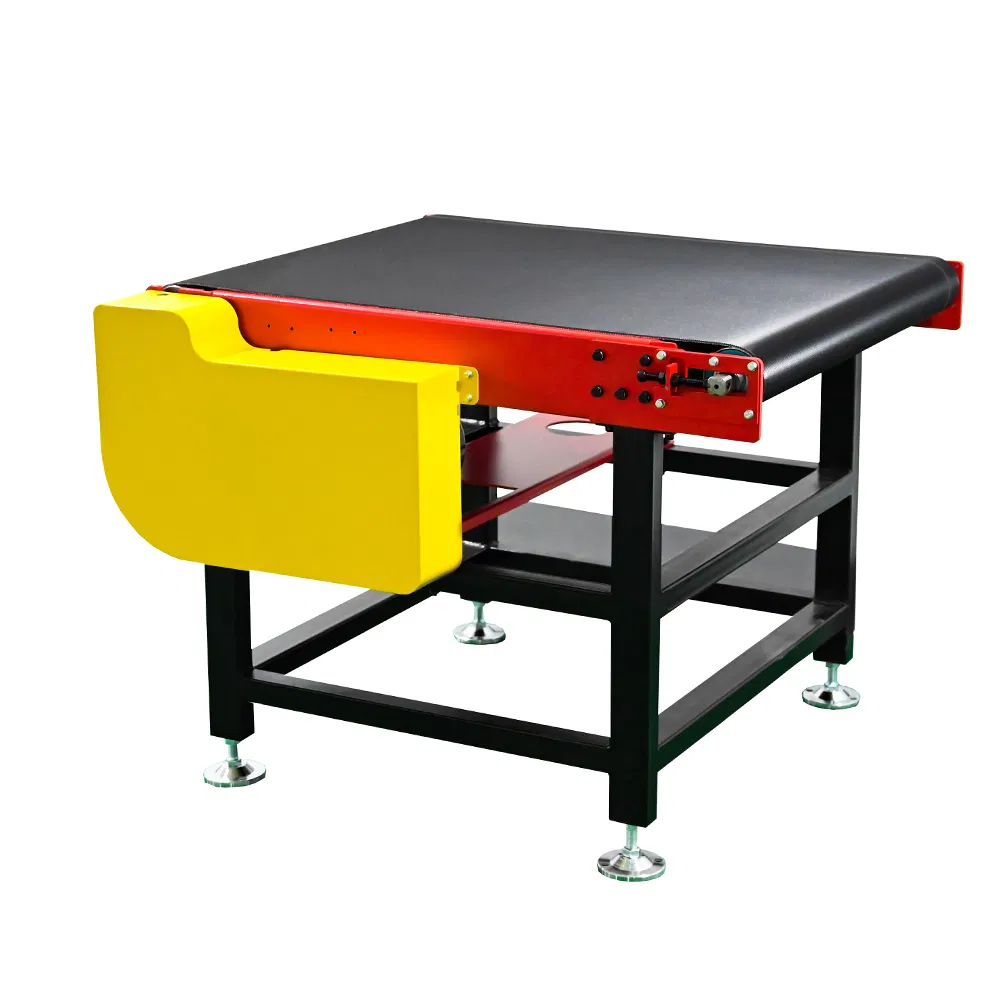

Conveyor belt
Length and width can be customized according to site requirements.
Founded in 2012, we are a high-tech enterprise concentrated on research & development and production of high-end warehouse automation equipments. There are not only standard equipments but also customizable ones to realize different functions, such as high speed barcode scanning, weighing, volume dimensions measuring, conveying and sorting, singulating, as well as dimension weigh scan and sorting integrated line system, etc.
These equipments take machine vision deep learning algorithm and robot motion control as the core. These devices are designed to enable companies to get rid of labor problems, disputes and losses caused by human errors and achieve high efficiency.
