Lunasol Logistics
Lunasol Logistics
| Structure | Conveyor System |
| Material | Stainless Steel |
| Condition | New |
| Code Identify Accuracy | 99.9% |
| Rating Efficiency | 1500--2000 PS/Hour |
| Weighing Range | 10g~30000g |
| Inaccurate Range | ±5g |
| Working Voltage | 380V/220V |
| Rating Power | 1500W |
| Scanning Max. Size | 500*500*500mm |
| Scanning Min. Size | 50*50*5mm |
| OEM/ODM | Yes |
| Transport Package | Wooden Case |
| Origin | China |
| HS Code | 8479894000 |
| Production Capacity | 50 Set/Sets Per Month |

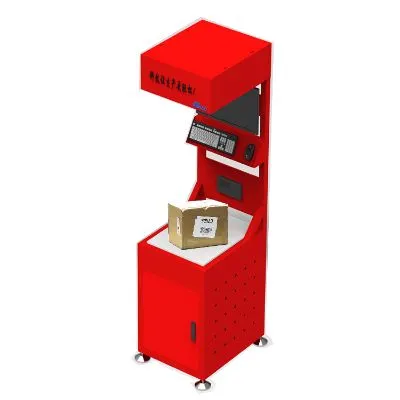

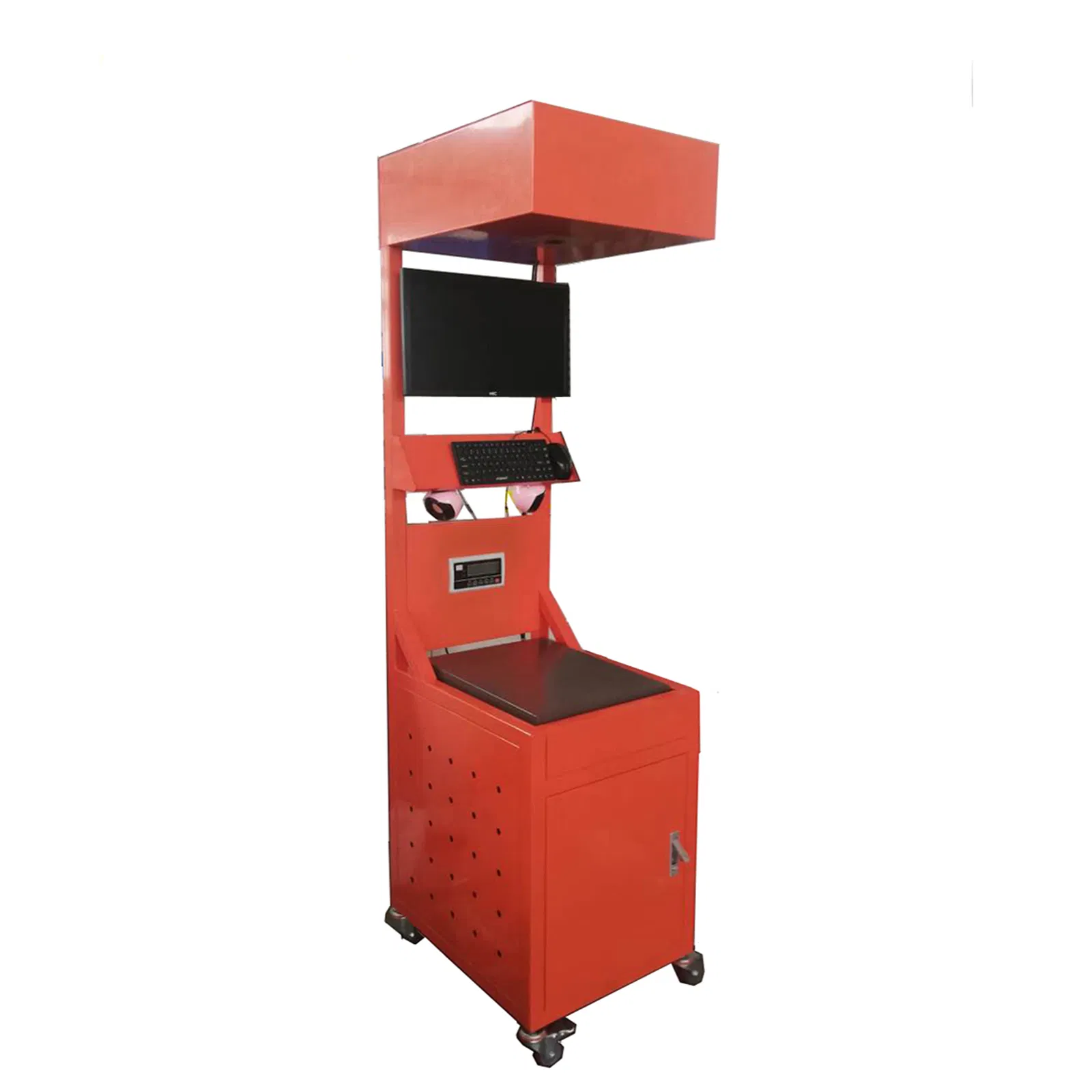

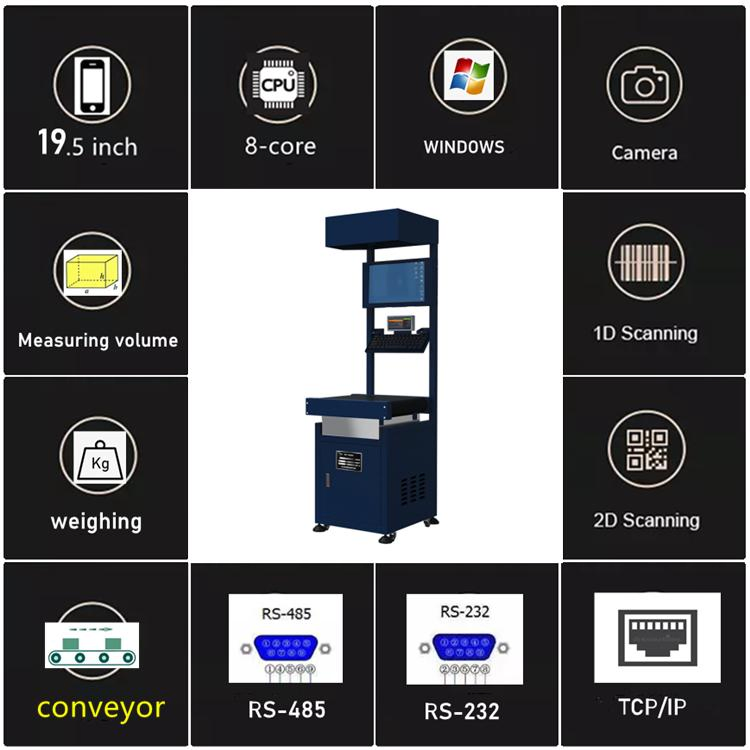

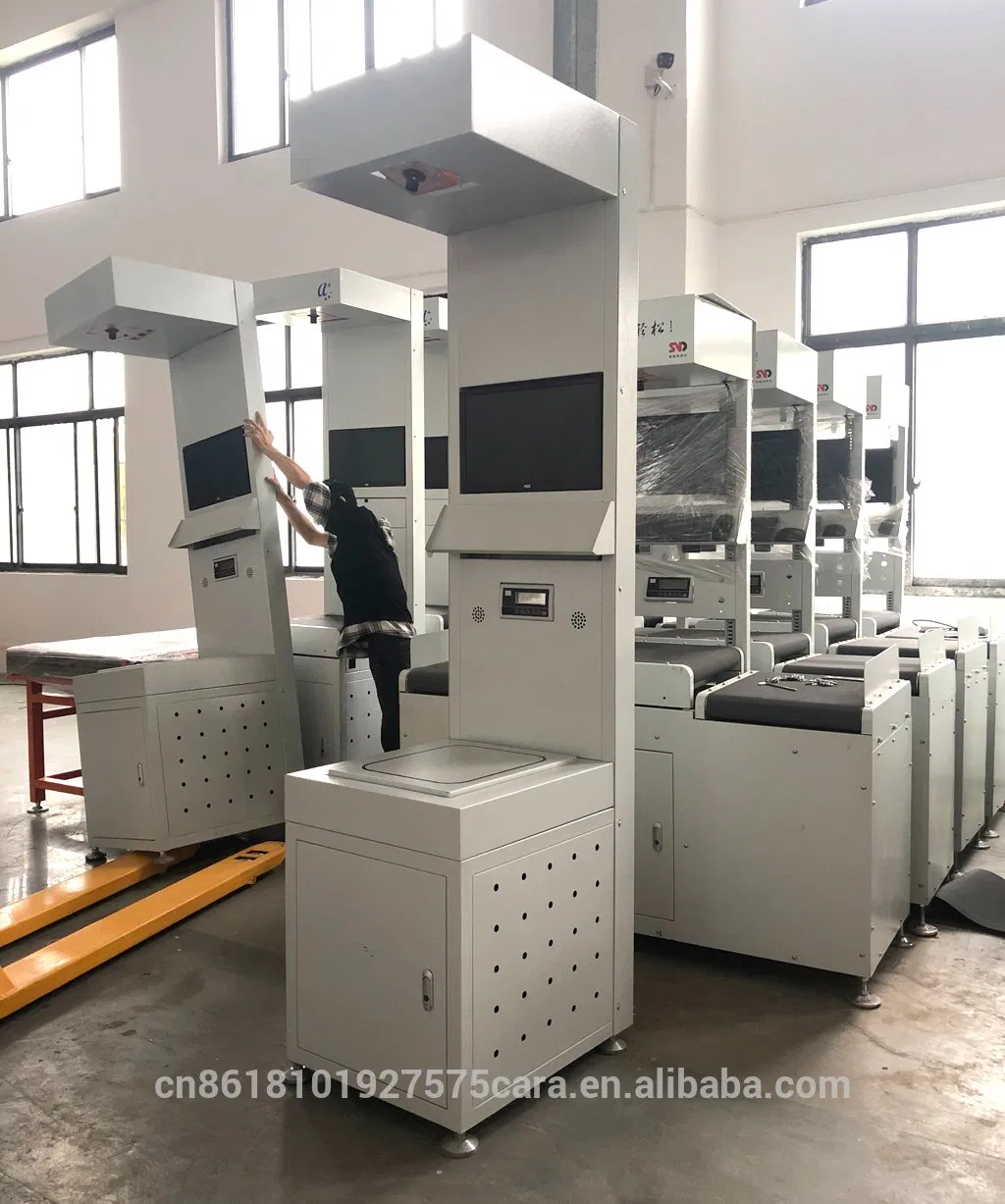

Small parcel DWS is mainly used to measure dimension weight and scan barcode of parcels in logistics, e-commerce, and other relevant industries. When a package is put on it manually, the data of weight, dimension, and code will be collected, saved in local disk, and uploaded to customers' management system. These data can also be exported as excel file. Parcels can be sorted to two different destinations.
| System Configuration | |
|---|---|
| Industrial Computer | Intel I5 |
| Display | 19.5 inches LCD |
| Camera | 20 Million Pixel Industrial Camera |
| Keyboard/Mouse | Logitech |
| Load Cell | 100kg |
| Performance Index | |
| Weighing Range | 30g ~ 20kg |
| Dimensioning Range | 50*50*50 ~ 500*500*500mm |
| Capacity | 1000 ~ 1500 pcs/hour |
| Dimensioning Accuracy | ±5mm |
| Weighing Accuracy | ±20g |
| Software Interface | HTTP, TCP, 485 |
| Remote Diagnosis | Supported |

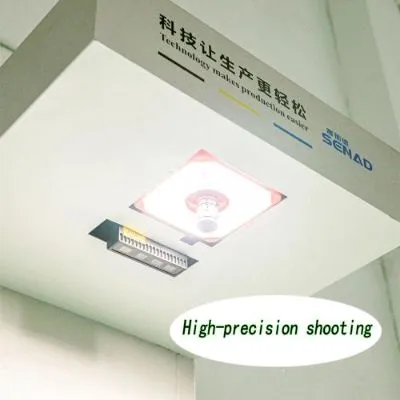

High-precision shooting cameras can accurately scan and record item information, realize storage records, and improve recognition capabilities.

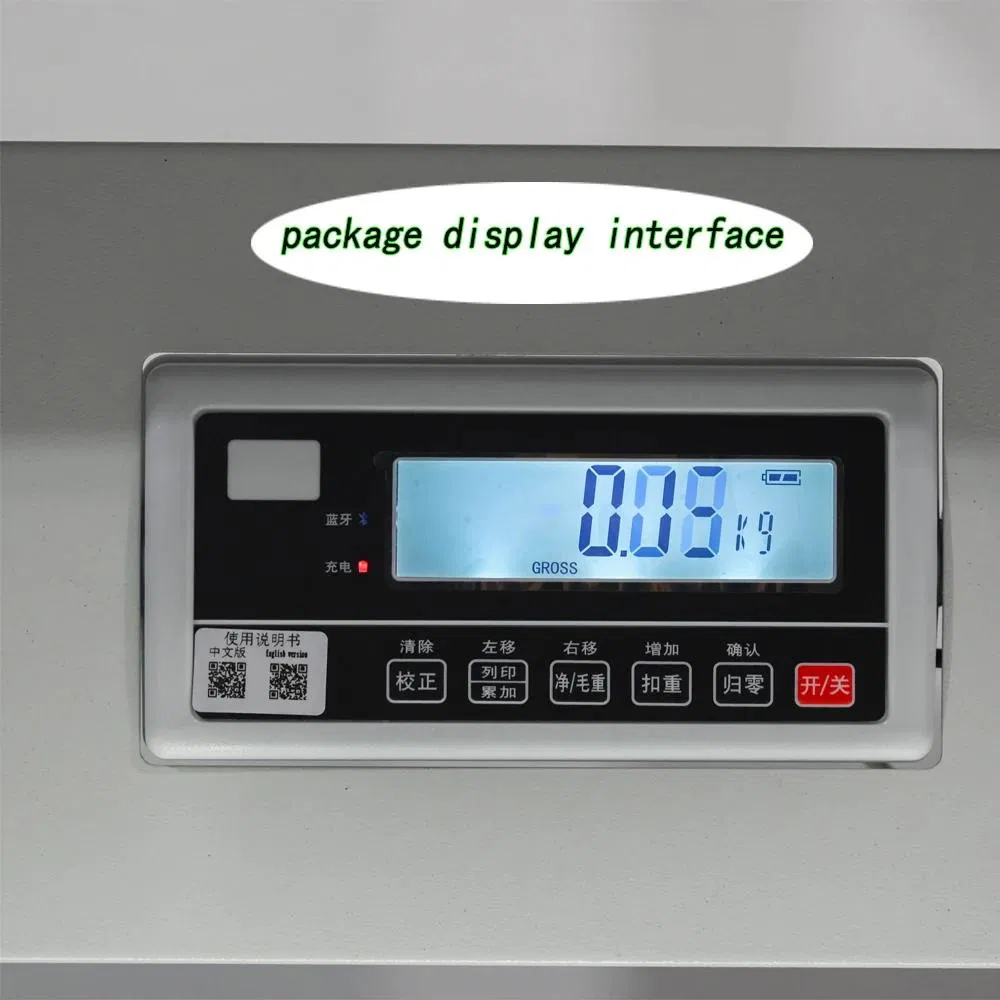

Clearly displaying the detailed information of each package, including weight and size, and performing automatic sorting operations to improve work efficiency.

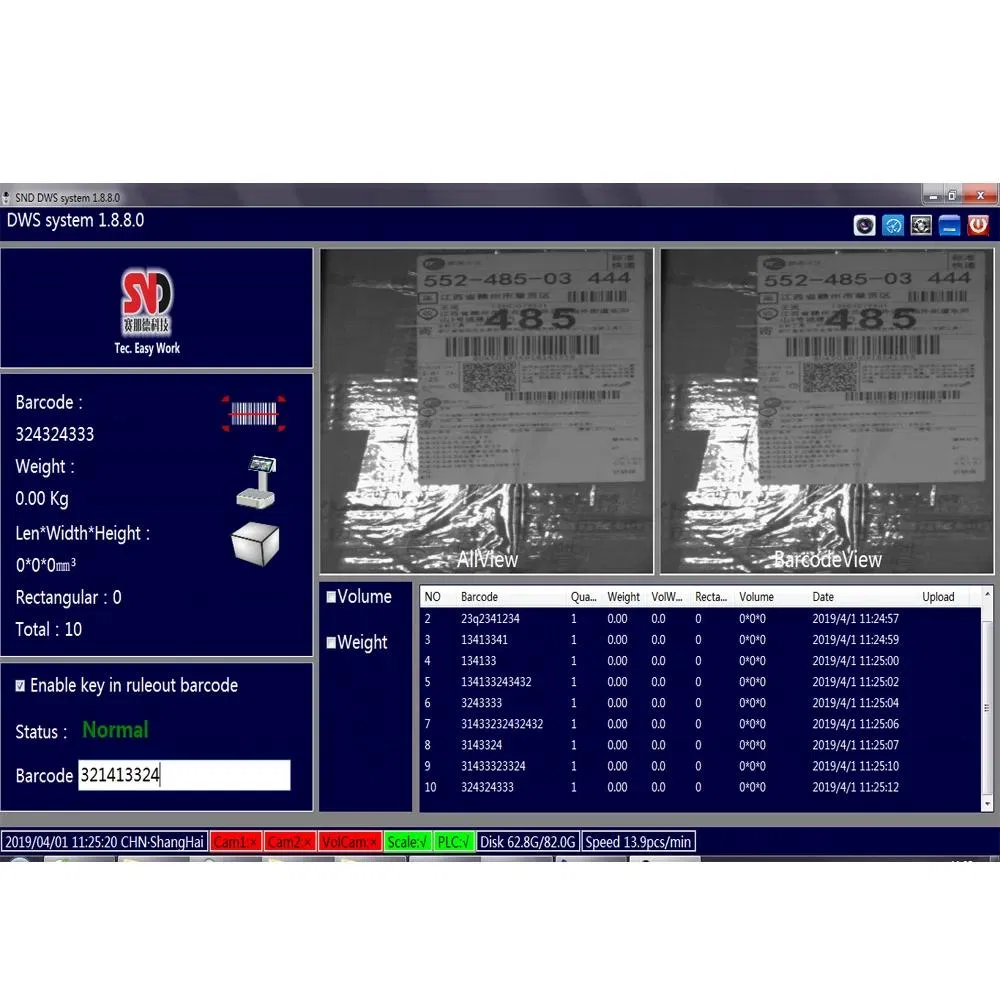

The operation interface displays the size, weight and bar code information. The language can be customized and it supports docking with customer systems for automatic form output.

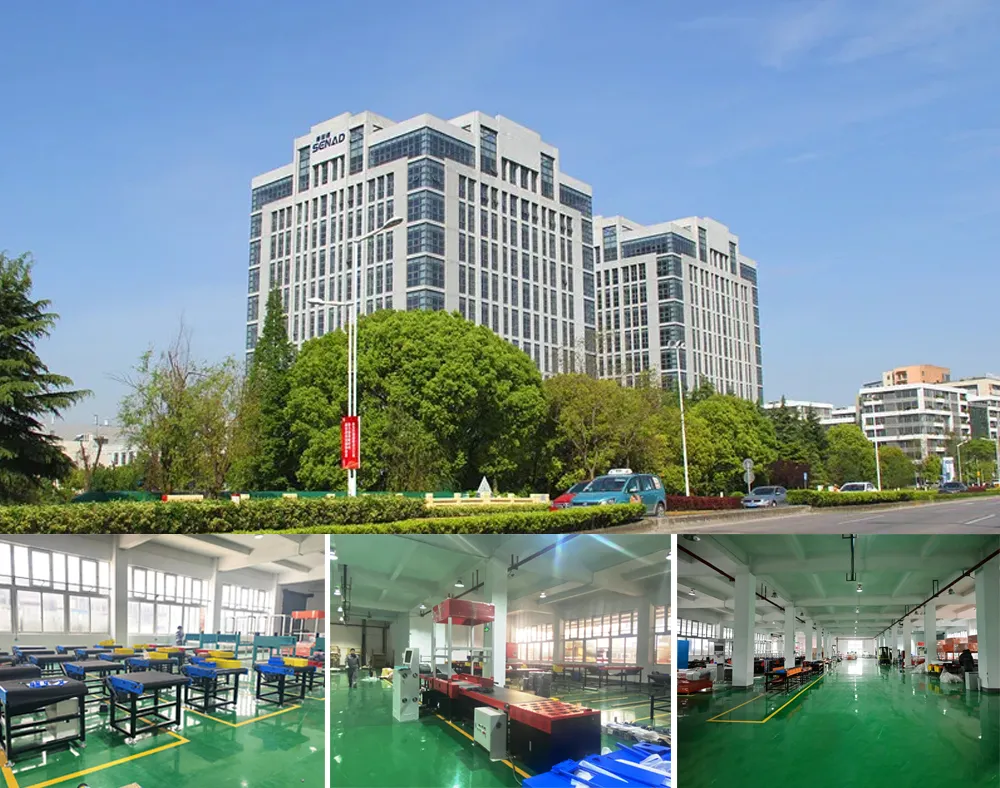

Founded in 2012, this national high-tech enterprise focuses on machine vision technology as the core. Through deep learning, image processing, and pattern recognition algorithms, we provide solutions for smart logistics, smart factories, and smart storage. Our technology helps reduce costs and increase efficiency for enterprises globally.
