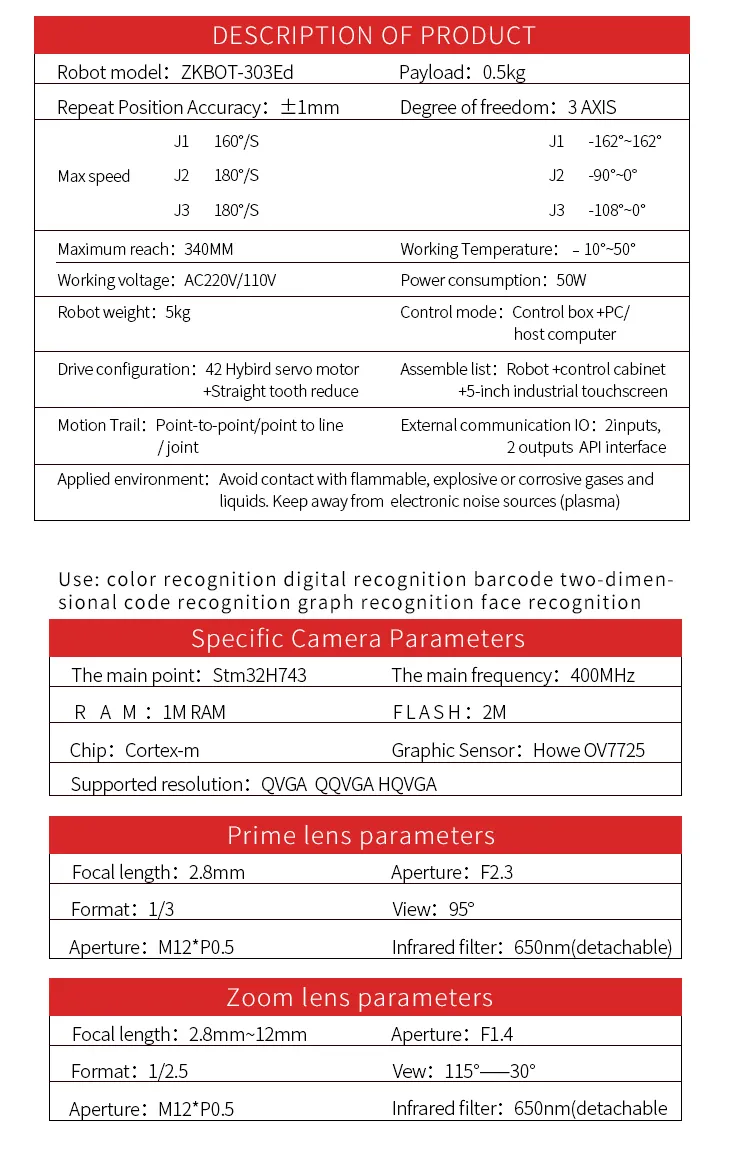

📋 Basic Specifications
Model NO.ZKBOT-303Ed
Motion TrailPoint-to-Point/Line/Arc
Reference FrameCoordinates/World
IO Interface2 Inputs, 2 Outputs API

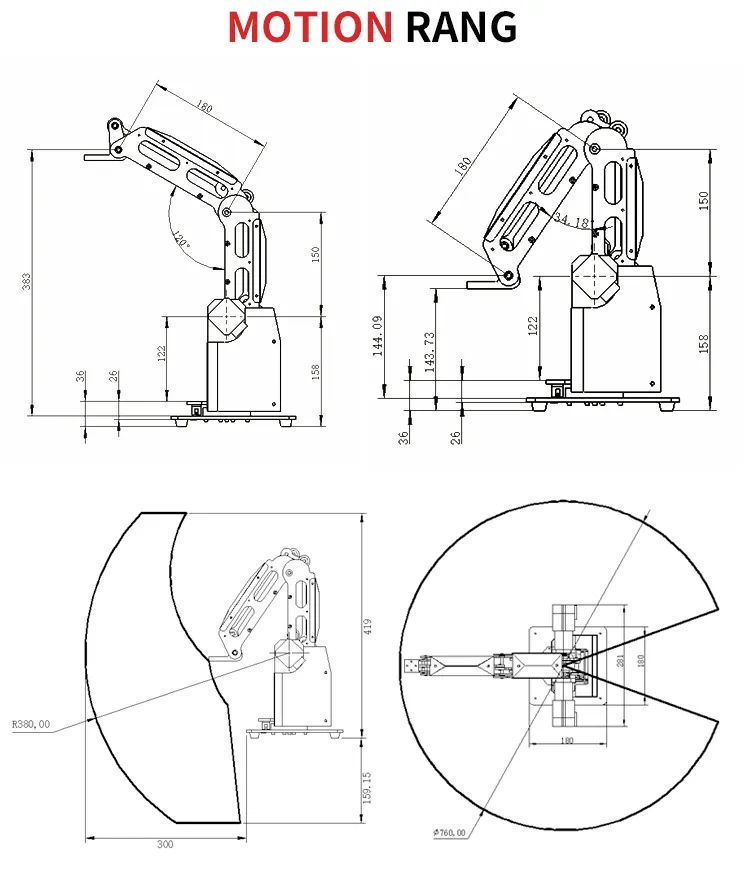

Maximum Reach340mm
Working VoltageAC220V/110V
Power Consumption50W
Robot Weight5kg
CertificationCE
Warranty1 Year
Control ModePC / Teach Pendant
ApplicationEducation
🤖 Product Description

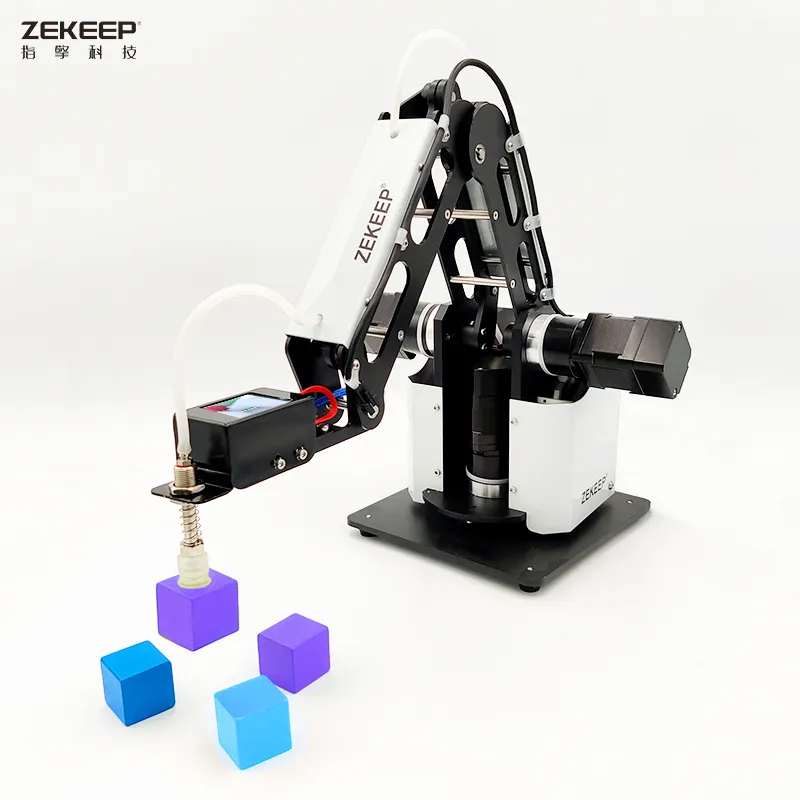

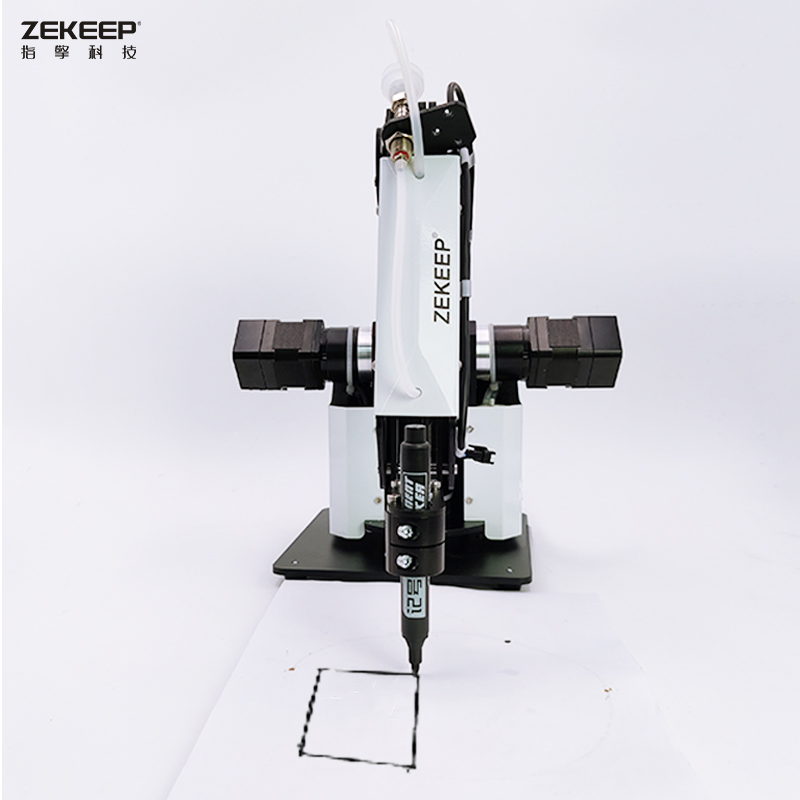

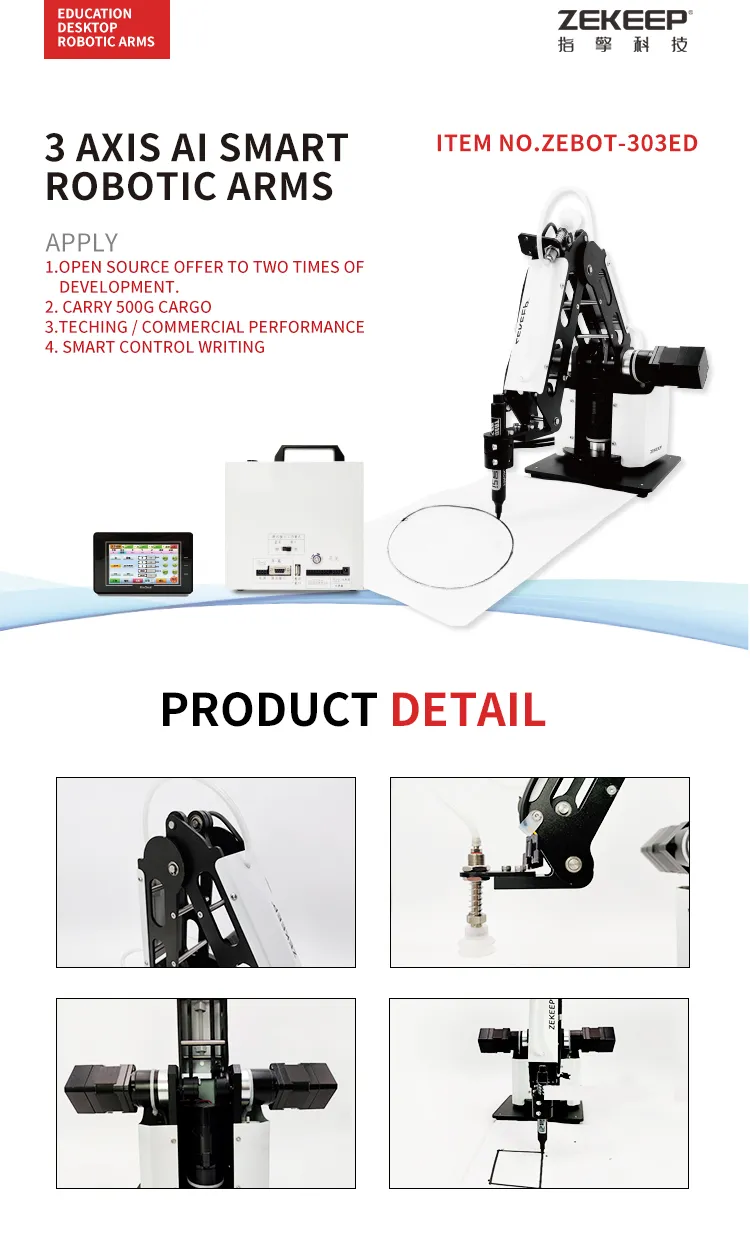

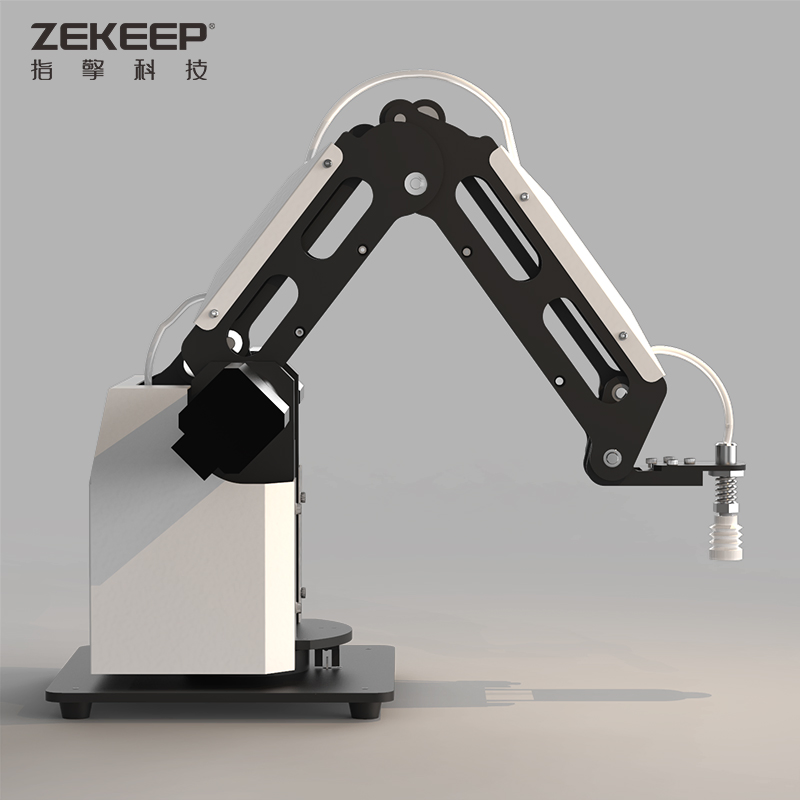

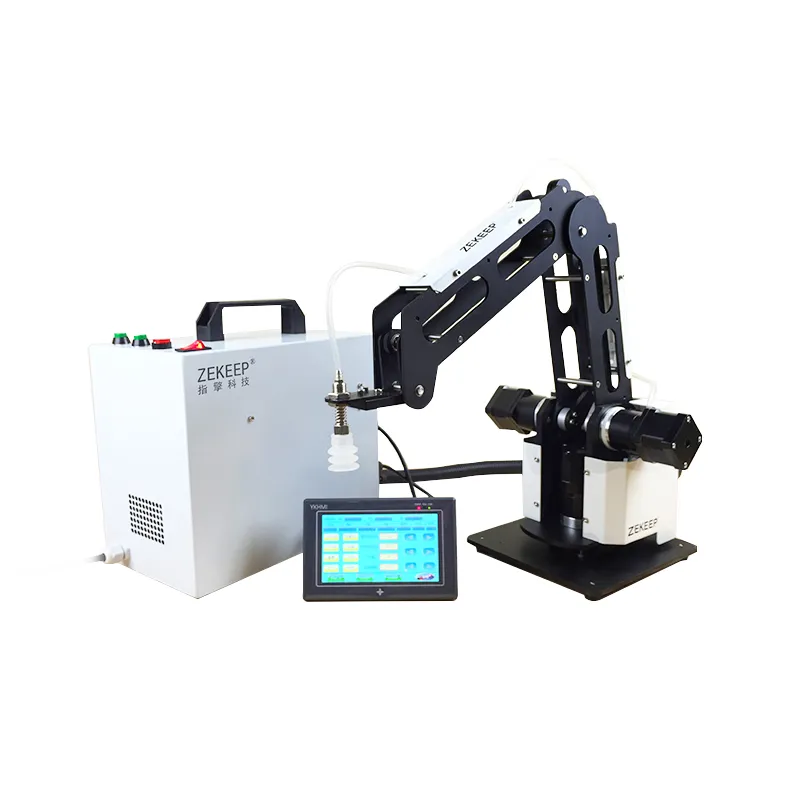

EDUCATIONAL DESKTOP ROBOTIC ARM

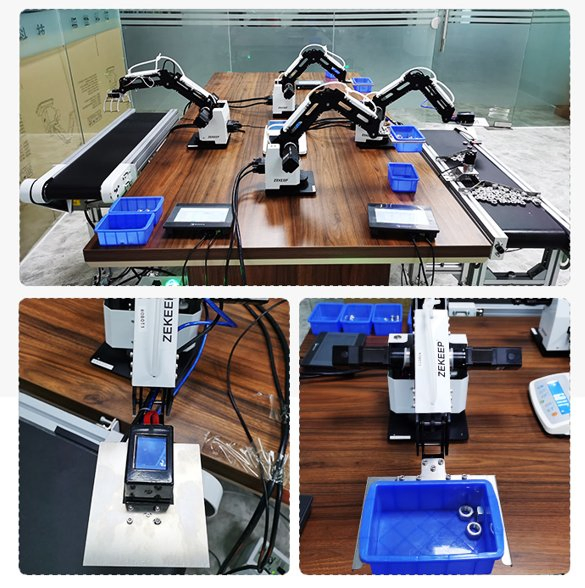

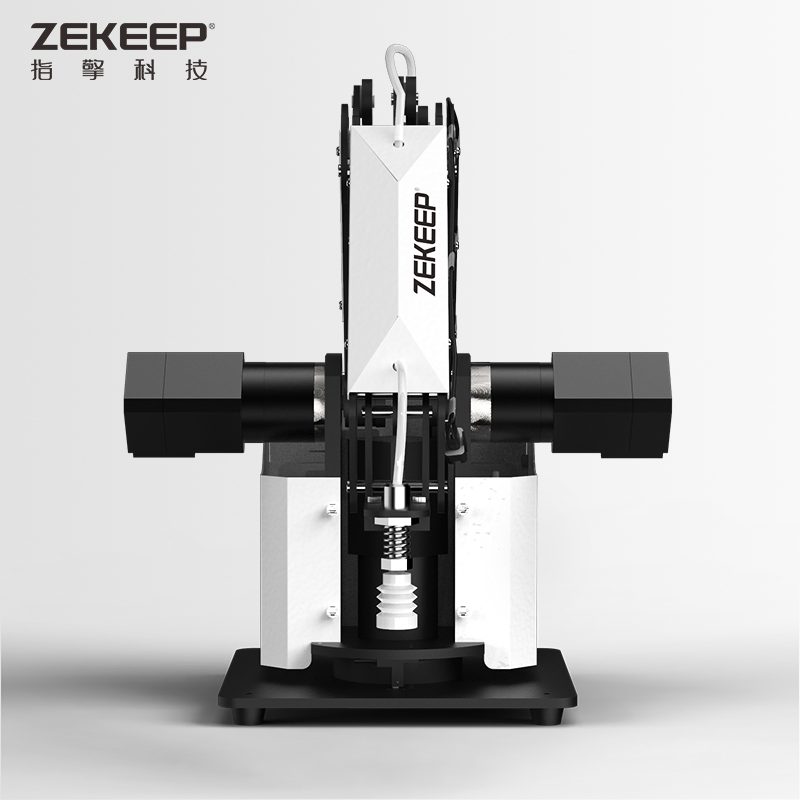

AI smart visual sorting teaching solution system - ITEM NO. ZKBOT-303ED
This robotic arm is designed for payloads below 0.5kg with 3-axis and 4-axis configurations. It is an ideal solution for educational institutions, allowing students to learn the principles of science, engineering, programming, artificial intelligence, and automation. It enhances technical skills, creativity, teamwork, and problem-solving abilities, helping students advance their future career paths.
❓ Frequently Asked Questions
Q1: Can these robotic arms be used in industrial production?
A1: With a max payload of 0.5kg, it is suitable for light industrial production lines, sorting tasks, and as a teaching tool for object manipulation.
Q2: Is it suitable for teaching organizations without programming experience?

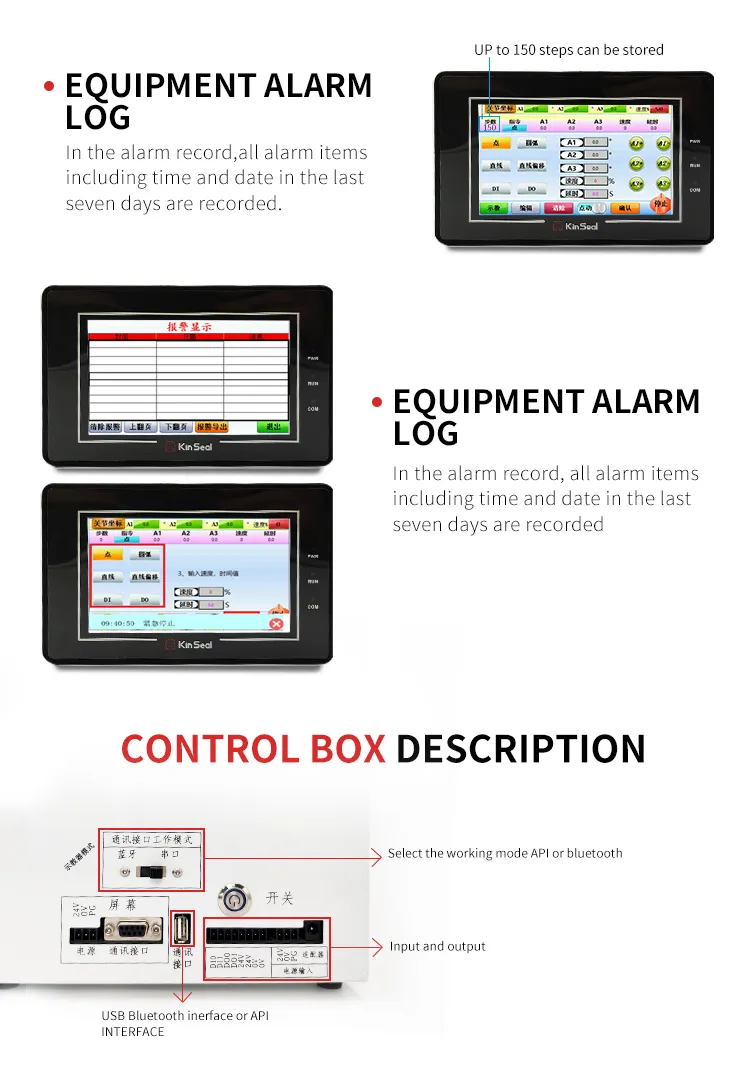

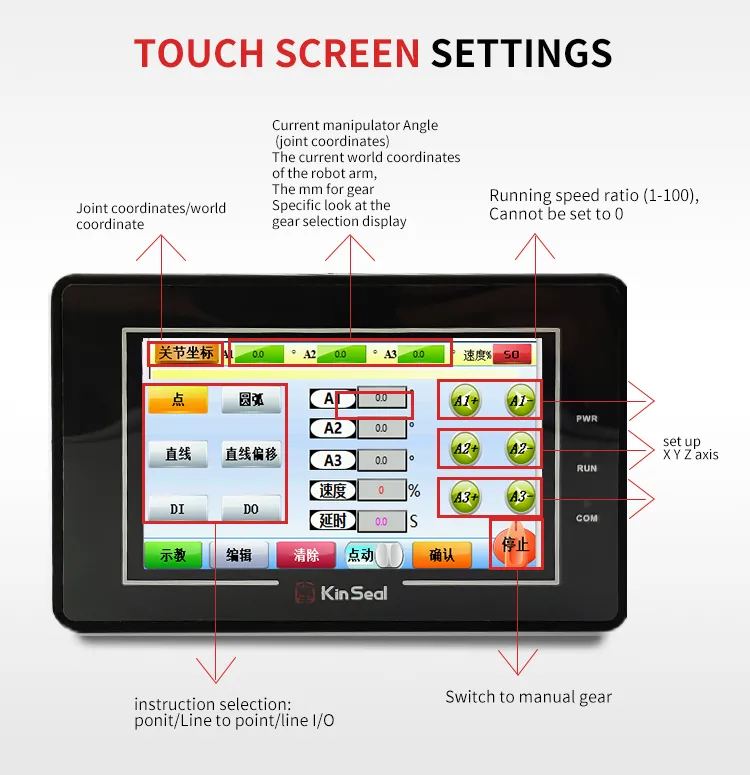

A2: Yes, the touch teach pendant is designed for easy operation, making it accessible even for those who have never learned programming.
Q3: Can cycle work and coordinates be customized?
A3: Yes, it supports motion node cycles within 150 steps. You can set coordinates via the teach pendant, and both node and overall speeds are adjustable.
Q4: What technical support and documentation are provided?
A4: We provide comprehensive technical documents in English and offer free online support to solve any usage problems.
Q5: Does the system support secondary development?

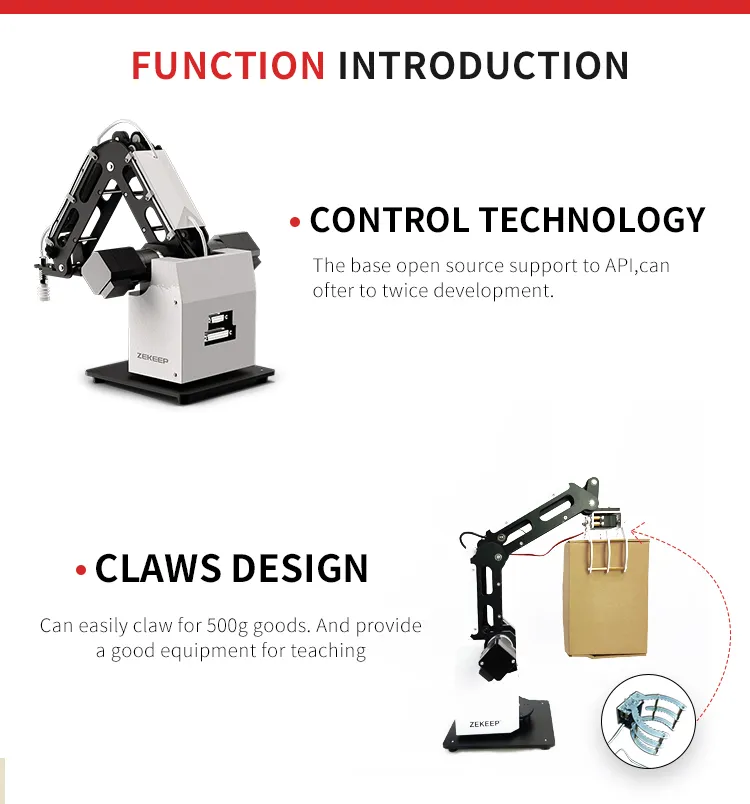

A5: Yes, the base supports API for secondary development (joint and world coordinates), and we provide a LabVIEW host computer demo.
Q6: What is the standard lead time for orders?
A6: Normally, the lead time is about 15 working days. If the models are in stock, they can be shipped immediately.
